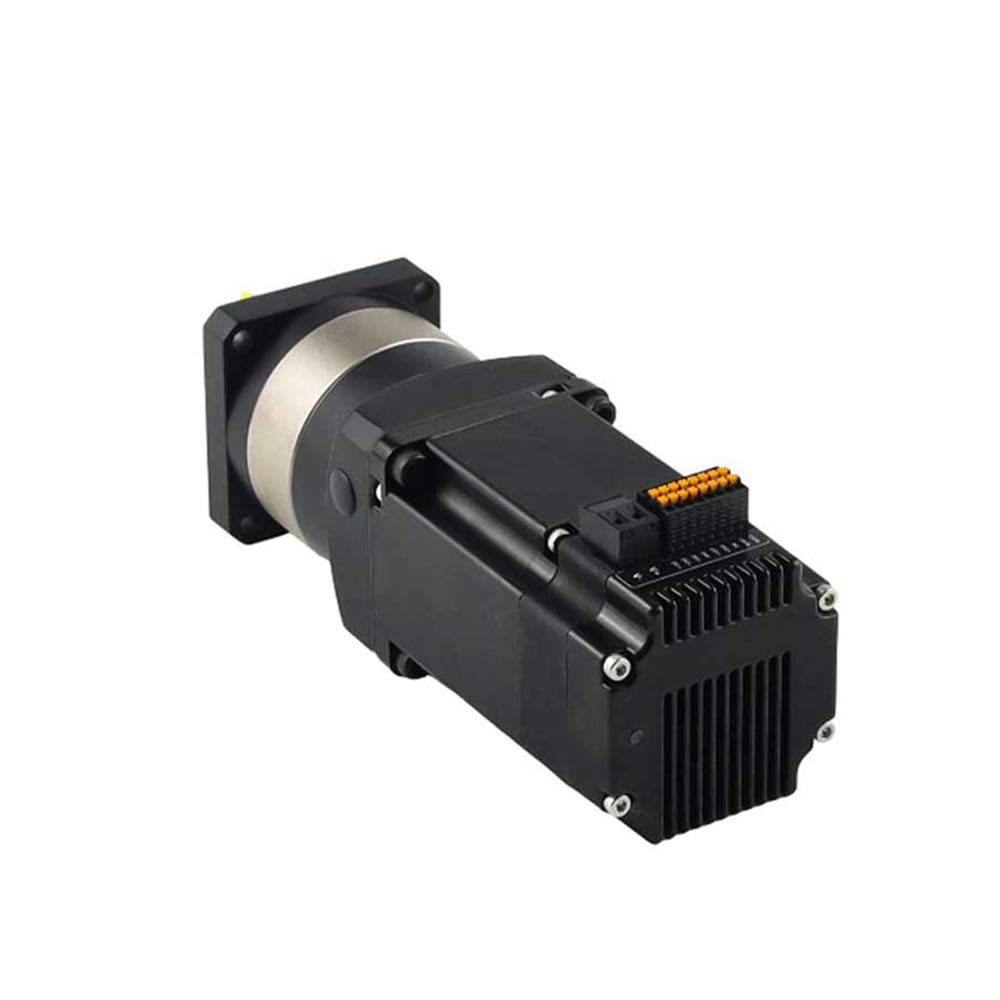

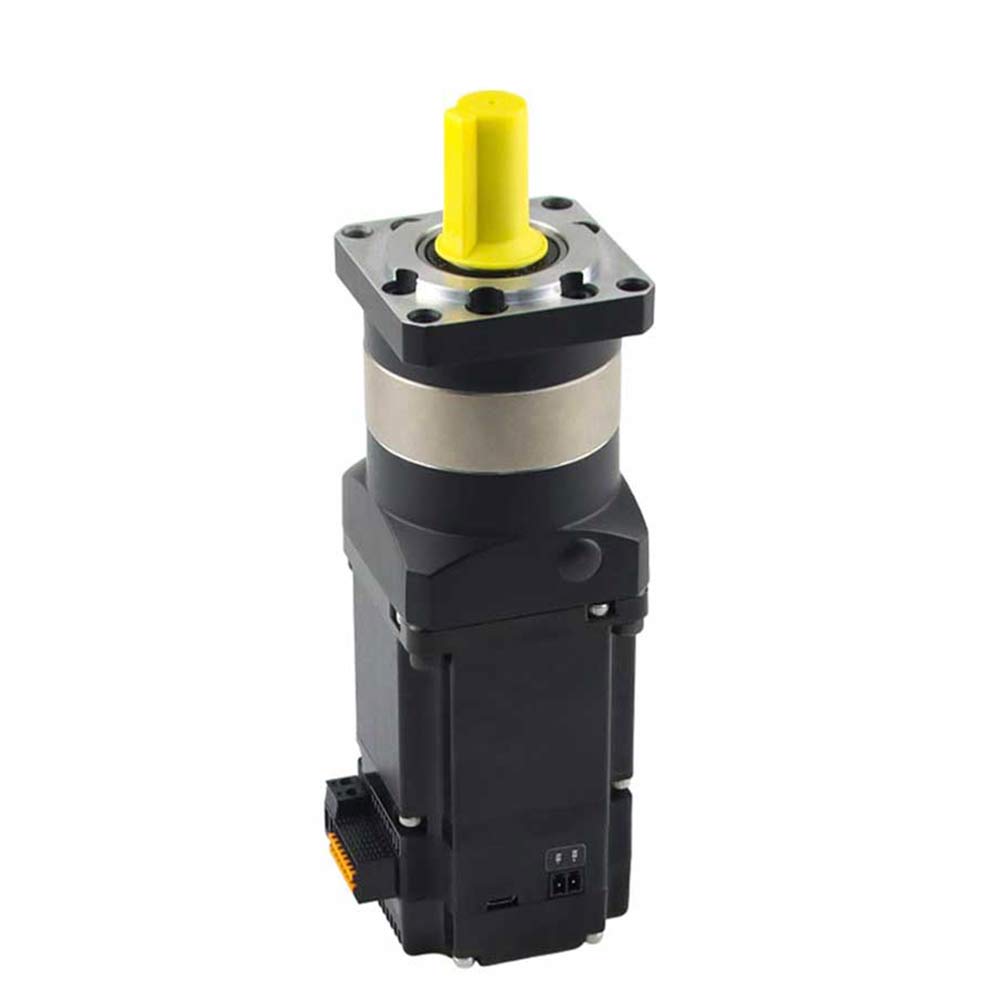

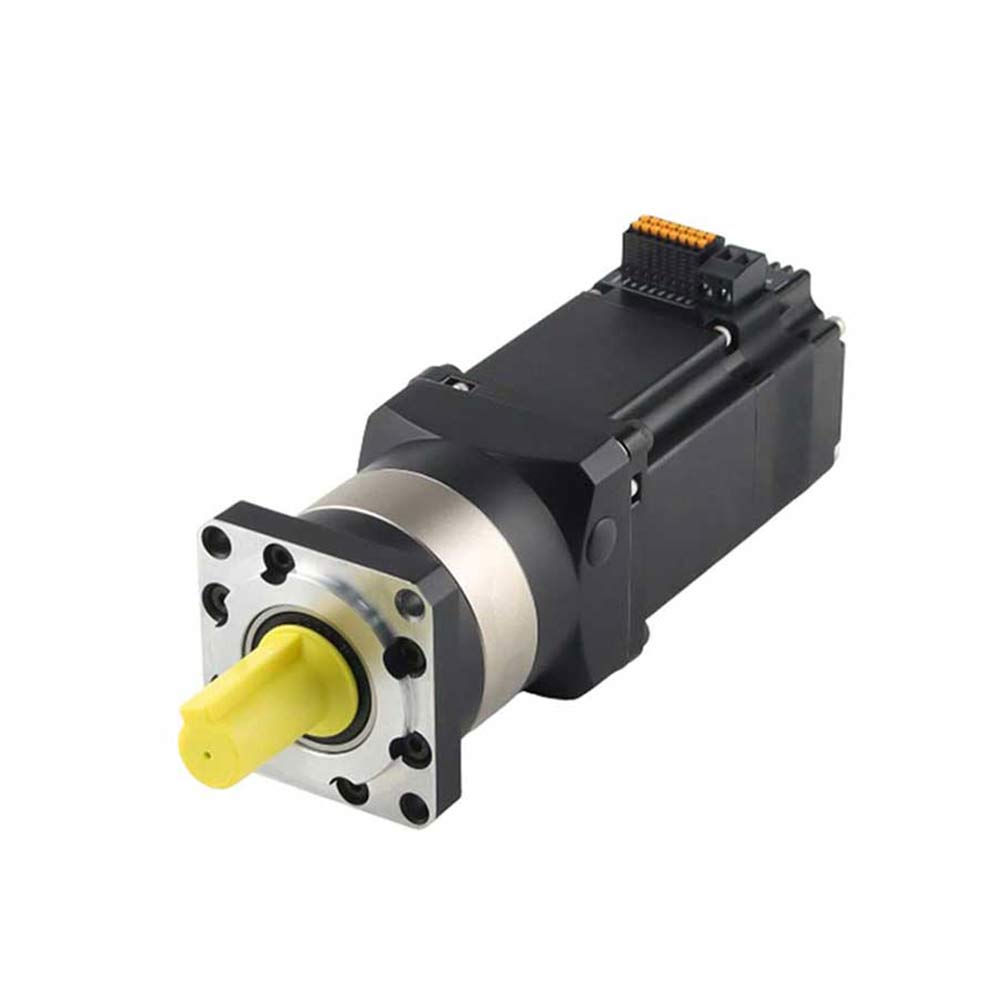

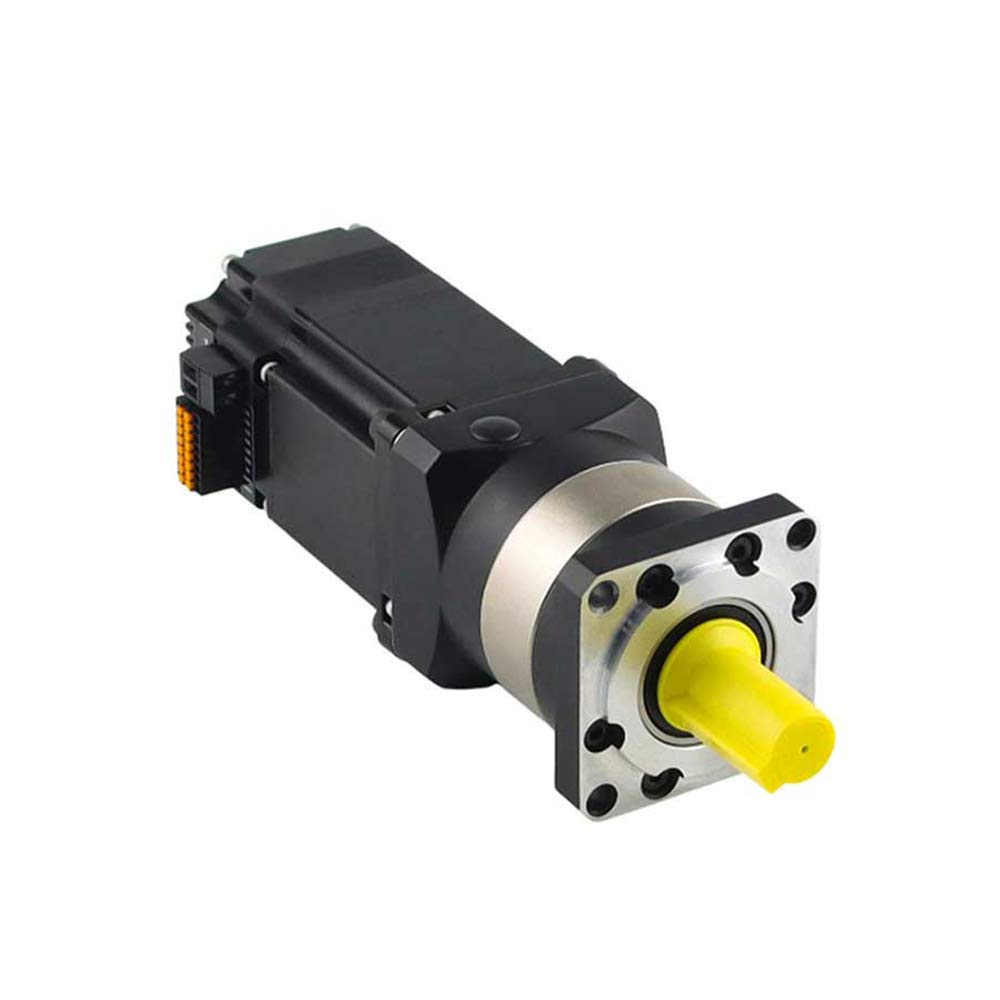

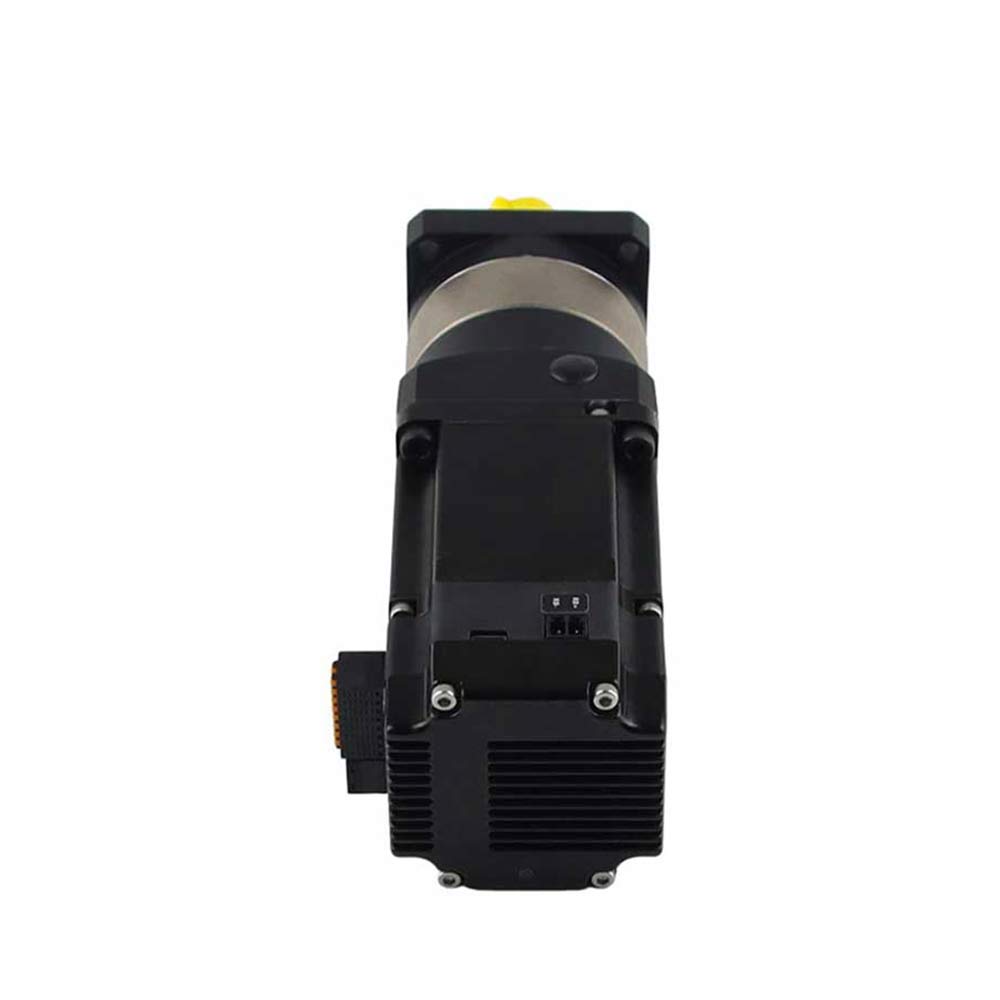

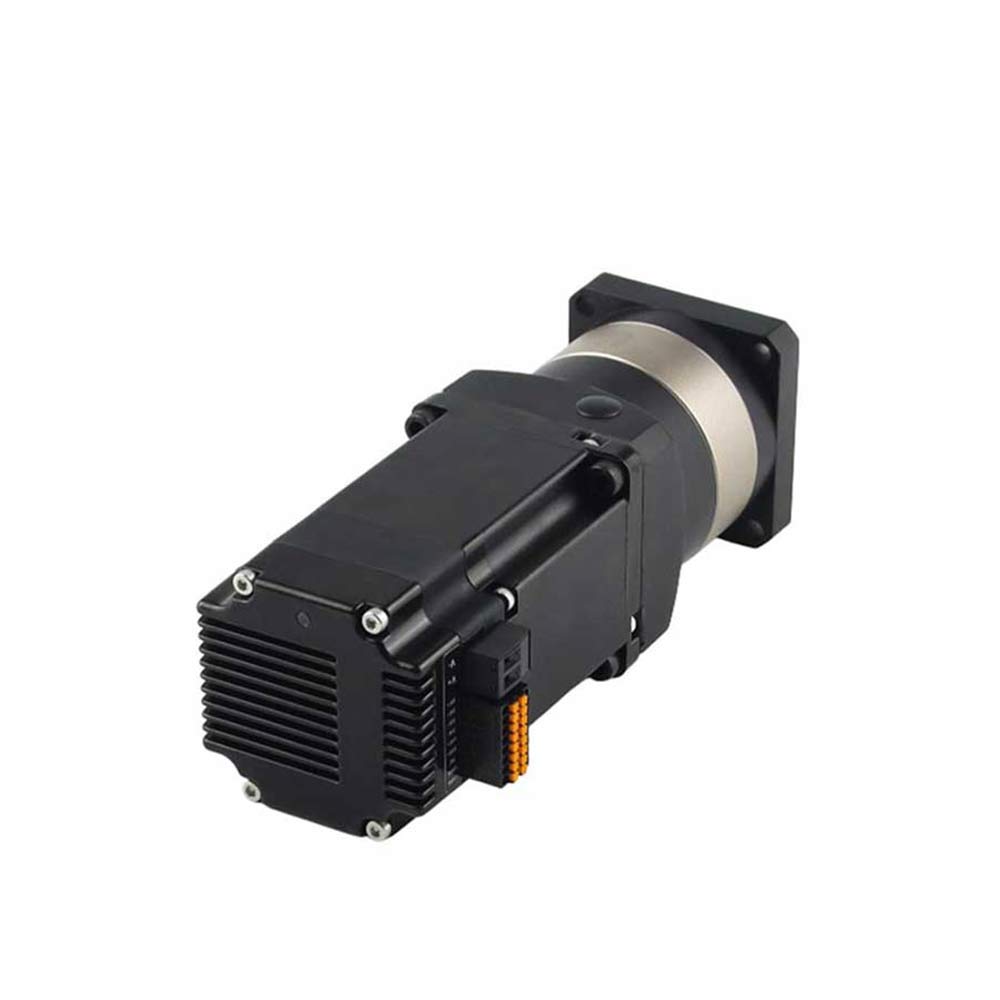

BFIDC80-P148A1 Planetary Geared Integrated DC Servo Motor with Pulse Control (CANopen,RS485 Optional) 750W 20A 2.4N.m

Type: BFIDC80-P248A1 Integrated Brushless Dc Servo Motor With Planetary Gearbox

Poles: 8poles

Rated Power: 750W

Rated Speed: 3000±10%RPM

Rated Current: 20A

Rated Torque: 2.4Nm(339.87oz.in)

Encoder: 17Bit Absolute Encoder

  • BFIDC80-P148A1 with Planetary Gearbox

  • Besfoc

  • 4000rpm

  • 8 poles

  • 48V, 72V

  • Pulse Type, RS485 ModBus, CANopen Network

  • 10 Pcs

Availability:
Inquire

Besfoc  nema 24 BFIDC80-P148A1 80x80x116.3mm Planetary Geared integrated brushless dc servo motor with Pluse control 750W 48V 3000Rpm 2.4N.m with 17bit integrated driver. For more different integrated servo motor requirements please contact us!!!


Electrical Specifications：

  • Model Name: BFIDC80-P148A1 integrated brushless dc servo motor with planetary gearbox

  • Phase: 3

  • Poles: 4

  • Rated Power: 750W

  • Rated Voltage: 48V/72V

  • Rated Speed: 3000±10%RPM

  • Rated Current: 19A/12A

  • Rated Torque: 2.4Nm(339.86oz.in)

  • Encoder: 17Bit

  • Control Method: Pulse (RS485, CANopen optional)


Physical Specifications:

  • Frame Size: 80x80mm

  • Body Length: 155mm


 Integrated Brushless Dc Servo Motors Features:

  • Adopting a new 32-bit M4+core with 120M or 240M main frequency

  • Stable torque characteristics from low to high speeds, with high speed and precision

  • Equipped with brake resistor interface to prevent damage to the electromechanical braking system

  • Wide speed range, low temperature rise, and high efficiency

  • Integrated motor and drive, compact size, simple wiring, and drive Good compatibility with the motor

  • Equipped with overcurrent, overvoltage, over temperature, and over differential protection functions

  • Configure a 17 bit single turn absolute encoder


Communication method:

  • Pulse type

  • RS485 MOdbus RTU network type

  • CANopen network type


Protection level:

Waterproof type: IP30, IP54, IP65, optional

80mm Integrated Servo Motor Electrical Specification:

Electrical Specification
Product Type
 / 80mm Integrated Brushless Dc Motor
Model Name / BFIDC80-P148A1
Phase / 3
Poles / 8
Power
 W 750
Rated Voltage V 48
Rated Current A 20
Rated Speed
 Rpm 3000±10%
Rated Torque N.m 2.4
Total Height mm 155
Phase to Phase Resistance
 ohms 0.14±10%
Phase to Phase Inductance mH 0.22±20%
Encoder
 / 17Bit / 15Bit /1000PPR


48v Integrated Brushless Motors Usage Environment：

Environment Parameters
Cooling Method Natural or forced cooling
Application Avoid dust, oil and corrosive gases; keep away from other heat generating equipment; prohibit the presence of combustible gases and conductive dust.
Operating Temperature 0℃ ～ +50℃
Environmental humidity ≤85%RH（no condensation）
Vibrations 5.9m/s² max
Storage Temperature -25℃ ～ +70℃


Integrated Driver Status Indicator：

Color Name Function
Green PWR Power indicator
Red ALM Alarm indicator


Integrated Drivers I/O port：

/
 Pluse CANopen RS485
Ports Pin Port Name Description Port Name Description
CN1 1 PUL+ Pluse Signal
 DI1+ Digital input 1
2 PUL-
 DI1-
3 DIR+ Direction Signal DI2+ Digital input 2
4 DIR-
 DI2-
5 ENA+ Enable Signal DI3+ Digital input 3
6 ENA-
 DI3-
7 BRK+ Brake Signal
 DI4+ Digital input 4
8 BRK-
 DI4-
9 ALM+ Alarm Signal DO1+ Digital output 1
10 ALM- DO1-
11 READY+ Ready Signal
 DO2+ Digital output 2
12 READY- DO2-
13 NC
 undefined NC undefined
14 NC
 undefined NC undefined
15 NC
 undefined CANL Low-level CAN bus 485A RS485 active terminal
16 NC undefined CANH High-level CAN bus 485B RS485 negative terminal
17 / / CANL Low-level CAN bus 485A RS485 active terminal
18 / / CANH High-level CAN bus 485B RS485 negative terminal
CN2
 1 V-
 Power Connection V-
 Power Connection
2 V+ V+
CN3
 3 RB+
 Discharge resistor RB+
 Discharge resistor
4 RB- RB-


Integrated Driver DIP Switches：

Pin Port Name Description
1 SW1 Subdivide Settings
2 SW2
3 SW3
4 SW4
5 SW5
 Setting of motor rotation direction


Integrated Driver Subdivide Settings：

Subdivide SW1 SW2
 SW3
 SW4
200 OFF
 OFF
 OFF
 OFF
400 ON
 OFF
 OFF
 OFF
800 OFF
 ON
 OFF
 OFF
1600 ON
 ON
 OFF
 OFF
3200 OFF
 OFF
 ON
 OFF
6400 ON
 OFF
 ON
 OFF
12800 OFF
 ON
 ON
 OFF
25600
 ON
 ON
 ON
 OFF
1000 OFF
 OFF
 OFF
 ON
2000 ON
 OFF
 OFF
 ON
4000 OFF
 ON
 OFF
 ON
5000 ON
 ON
 OFF
 ON
8000 OFF
 OFF
 ON
 ON
10000 ON
 OFF
 ON
 ON
20000 OFF
 ON
 ON
 ON
25000 ON
 ON
 ON
 ON


Setting of Motor Rotation Direction：

The user can set the motor rotation direction via SW5, which works together with the DIR control signal. Changing SW5 setting or DIR control signal can change the current motor rotation direction.

Directions SW5 DIR
CW OFF Low Level
CCW ON Low Level
CCW OFF High Level or Suspended
CW ON High Level or Suspended


PRF/PRL85 -L Series Gearbox Specification：

Model / PRF/PRL85-L1 PRF/PRL85-L2
Gear Ratio
3 4 5 7 10 15 20 25 30 40 50 70 100
Rated Torque N.m 96 122 122 95 56 96 122 122 96 122 122 95 56
Max Torque N.m 144 183 183 143 84 144 183 183 144 183 183 143 144
Motor Diameter mm 80
Motor Shaft Diameter mm 14
Motor flange mm 70
Front cover hole spacing mm 63.6/69.6
Front cover pitch circle mm 80
Mounting hole / M6
Gearbox Length mm 150.5 177
Back Lash arcmin ≤8-16 arcmin ≤8-20 arcmin
Efficiency % ≥96 ≥94
Rated Input Speed Rpm 3500
Max Input Speed Rpm 6000
Average Life Span H 20000
Noise dB ≤60
Work Temp. ℃ -20 to +80
Lubricating grease / Fully Synthetic Grease



BFIDC80-P148A1 Integrated DC Servo Motor Dimension:

IDC80 Integrated DC Servo Motor

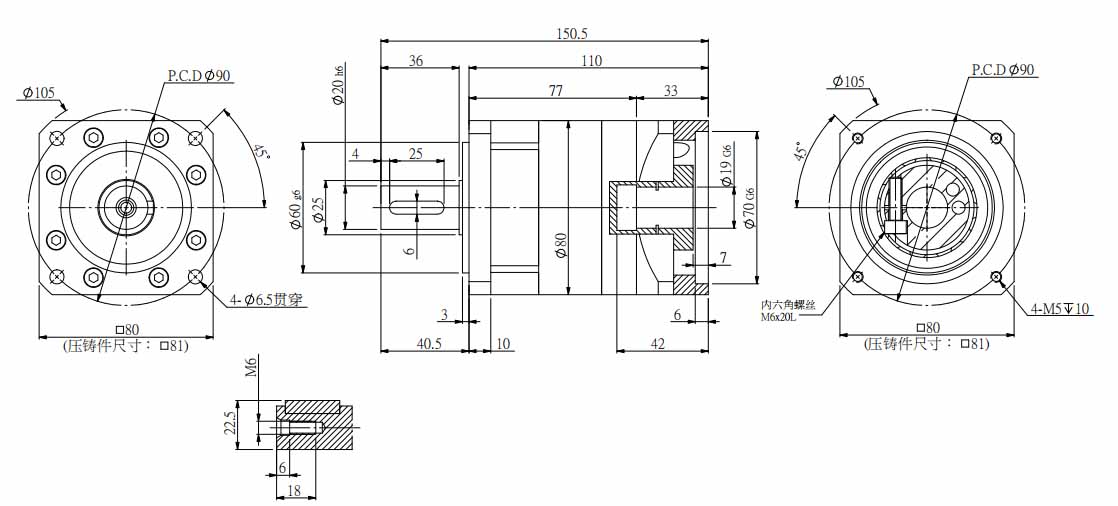

PRF/PRL85 - L1 Series Planetary Gearbox:

PRF85-L1

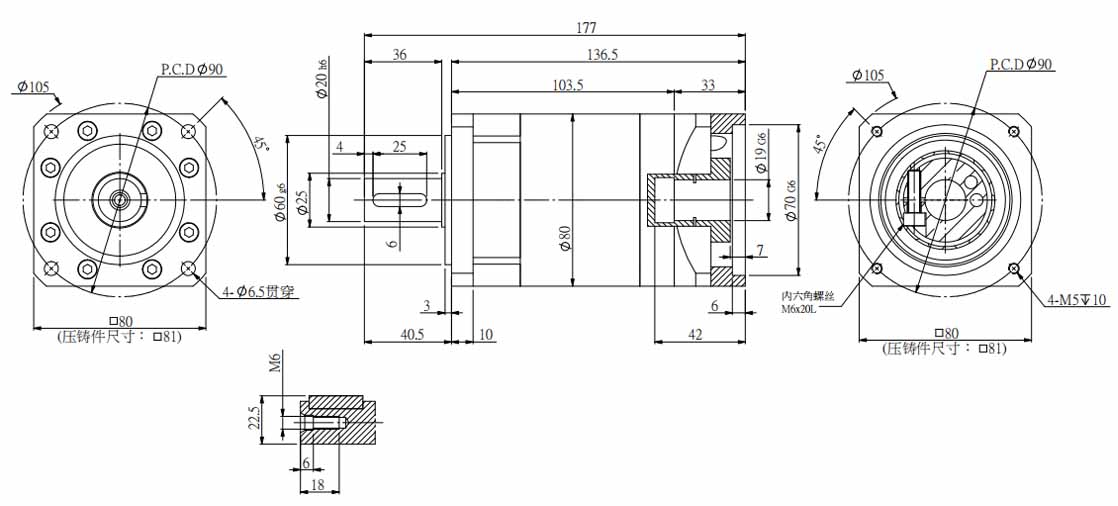

PRF/PRL85 - L2 Series Planetary Gearbox:

PRF85-L2

BFIDC80-P148A1  Integrated DC Servo Motor With Pluse Control and Driver Drawings:


Integrated DC Servo Motor Option
