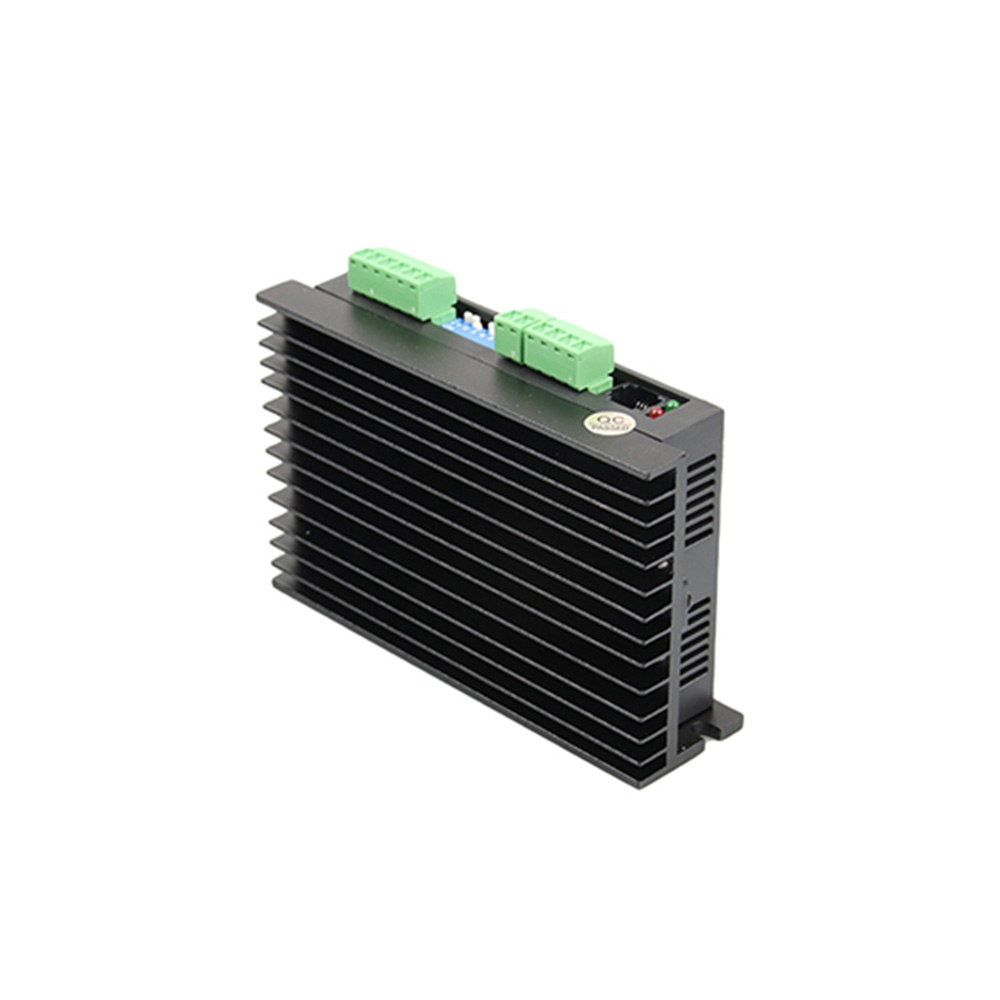

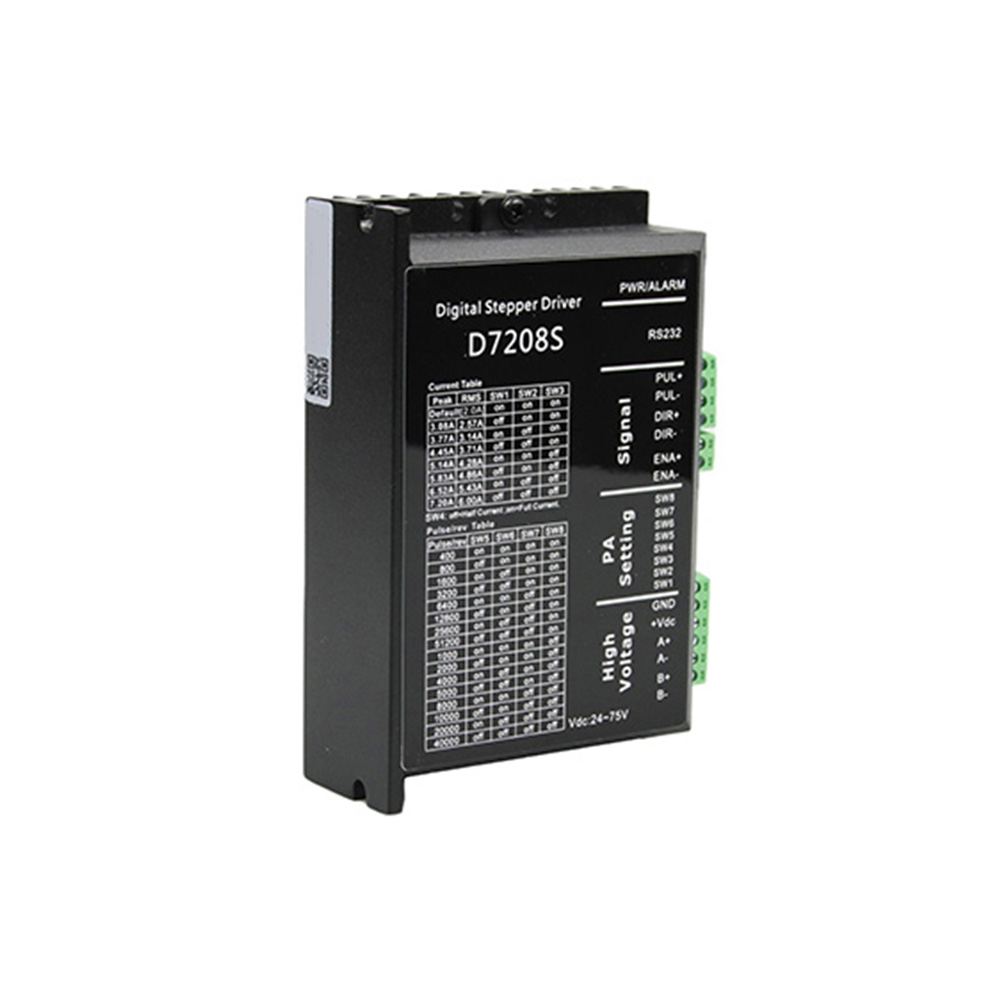

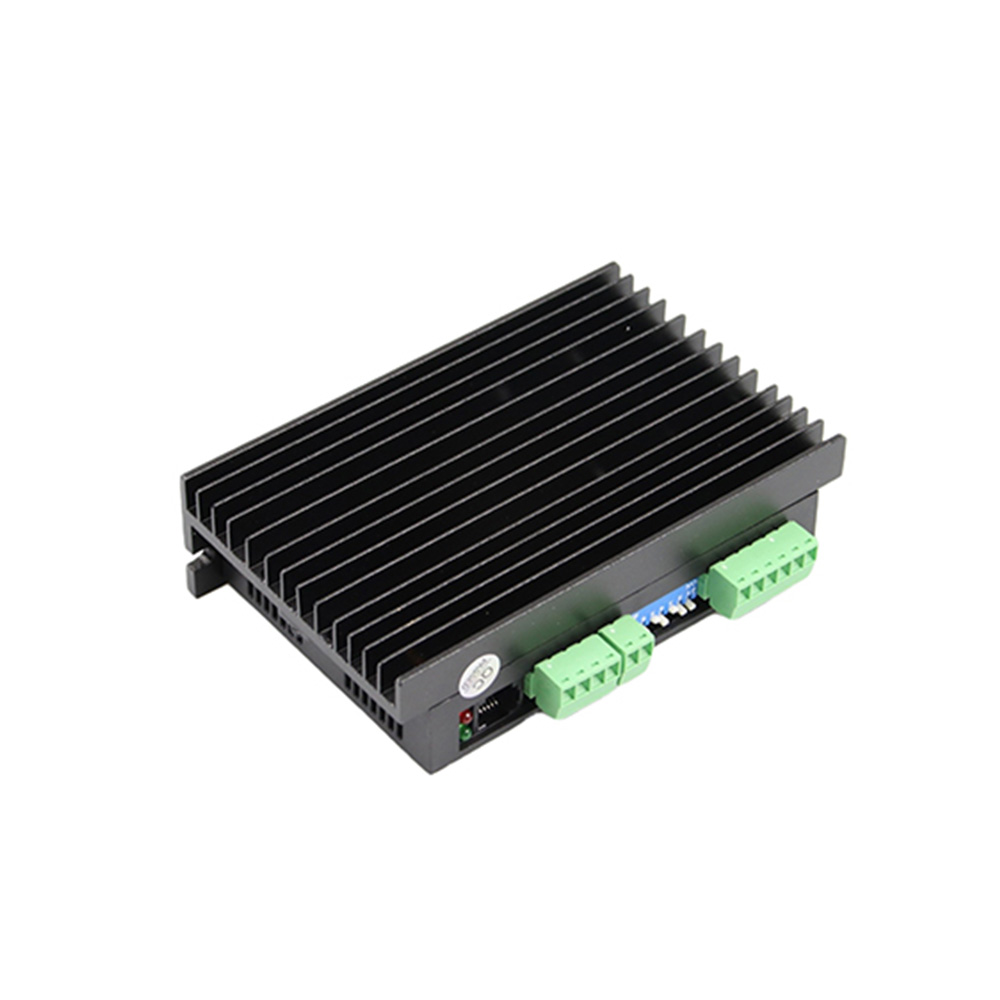

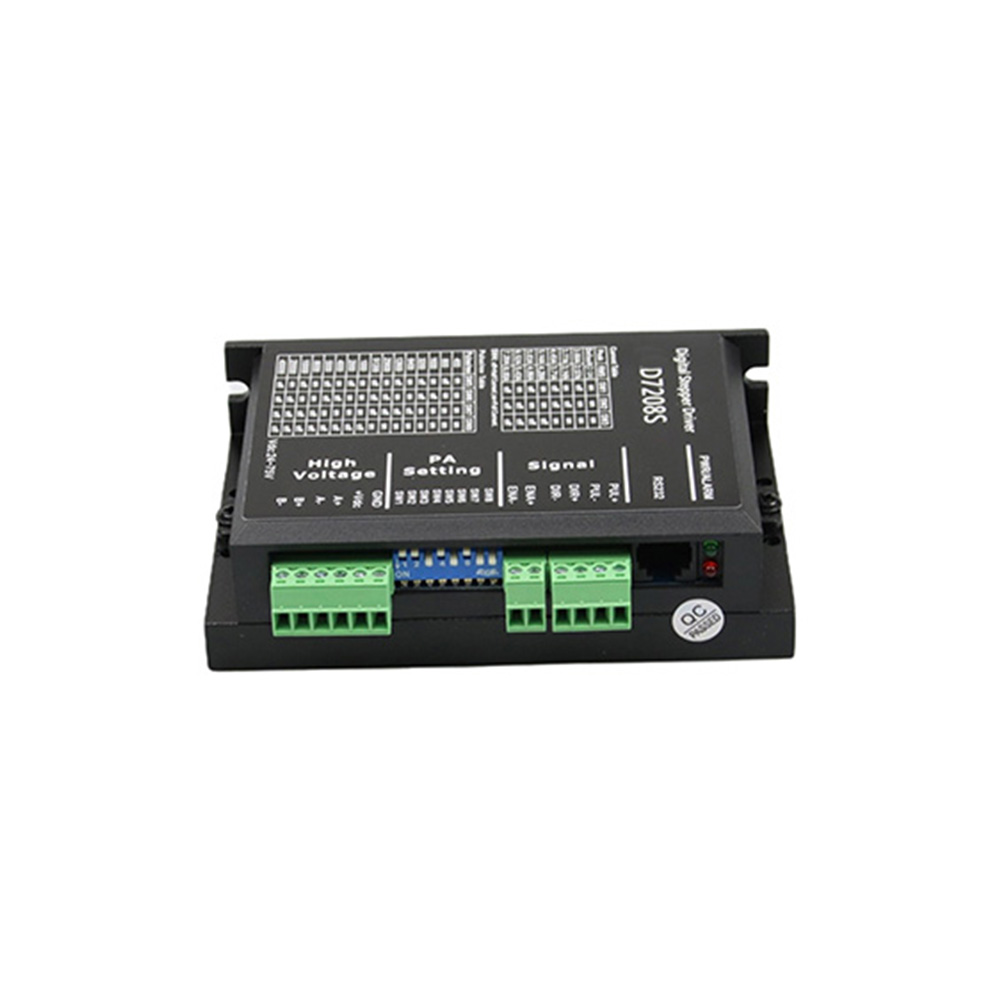

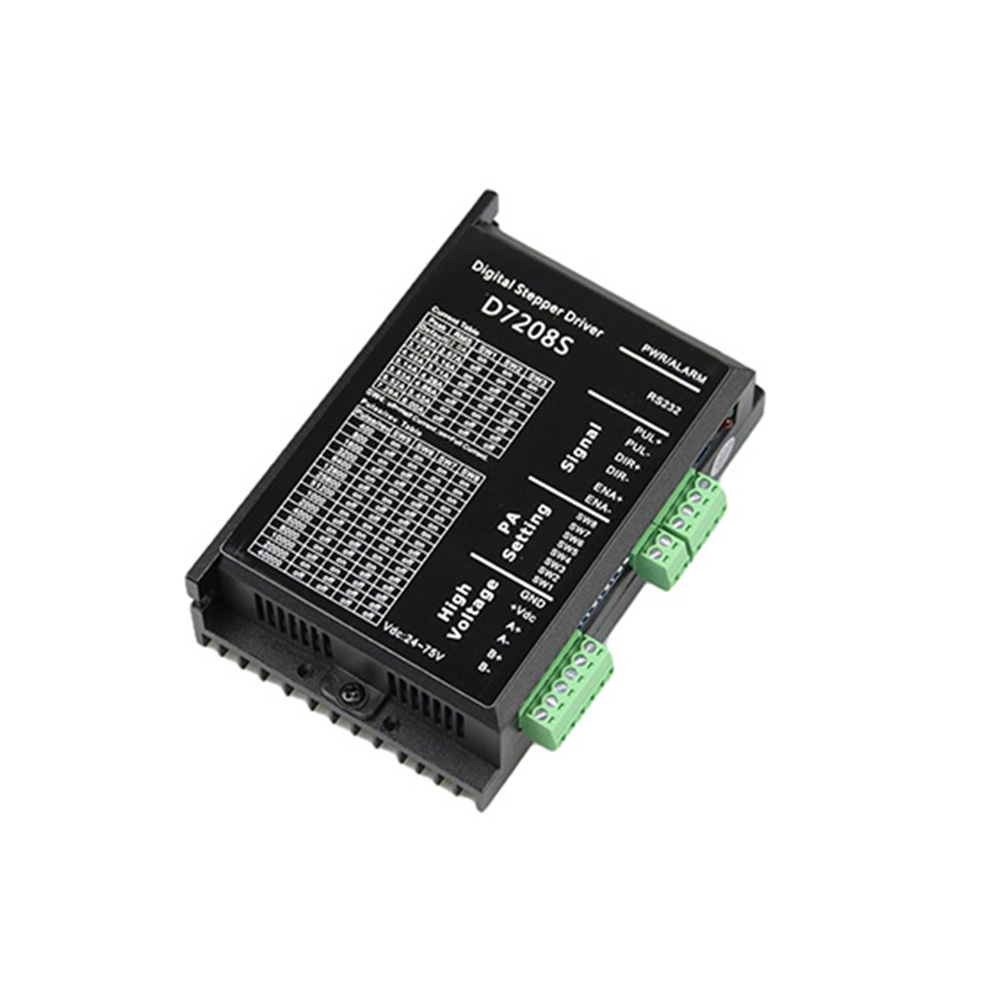

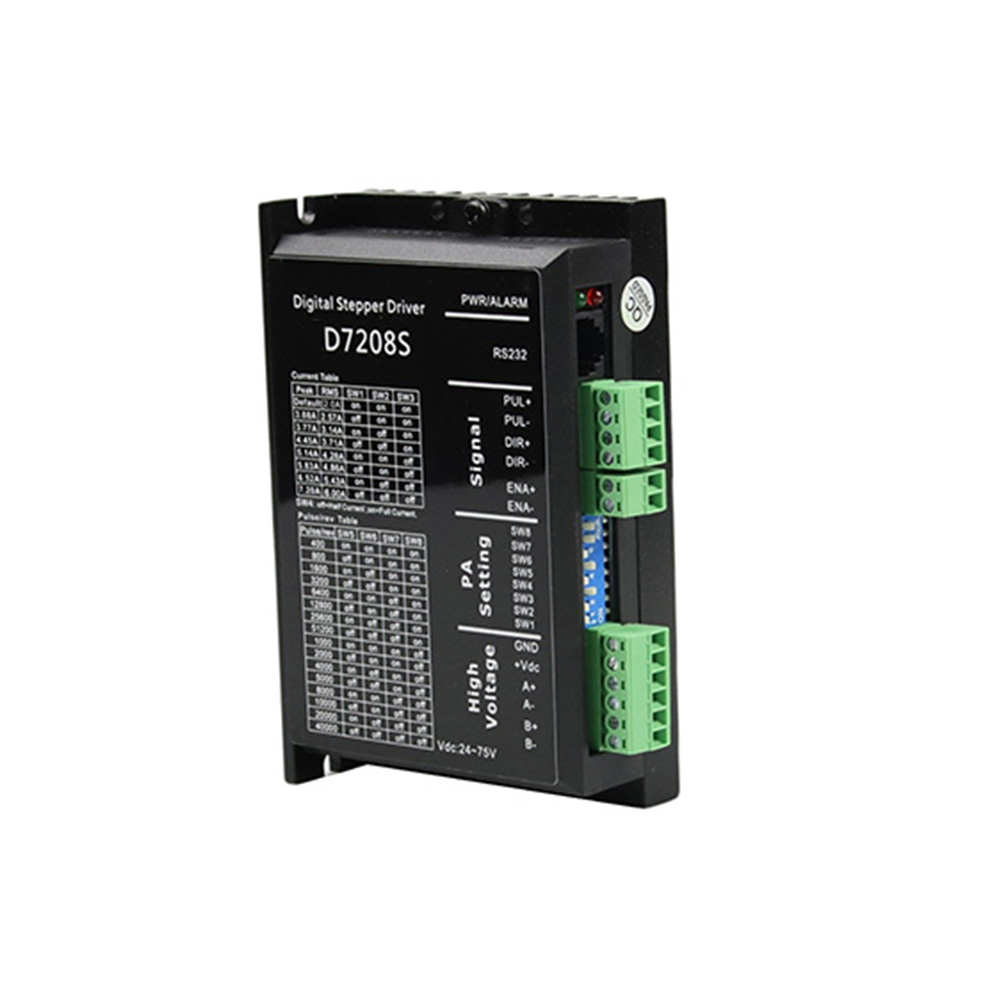

BFD7208S Digital Stepper Driver 0.1A - 7.2A 24- 75VDC for Nema 17-34 Stepper Motor

Hybrid Stepper Motor Driver Description：

Using environment and parameters

Electrical indicators

Interface Signal Description：

Current setting

1）Working (dynamic) current setting

2） Static current setting

Static current can set by SW4 DIP switch settings, off means the static current is set to half of dynamic current, on means static current and dynamic current is the same. SW4 should be set to off for general use, can reduce the heating of the motor and the driver. About 400ms after the pulse train stopped it will automatically reduced to half current (60% of the actual value), the heat will reduced to 30% theoretically .

2. Subdivision setting

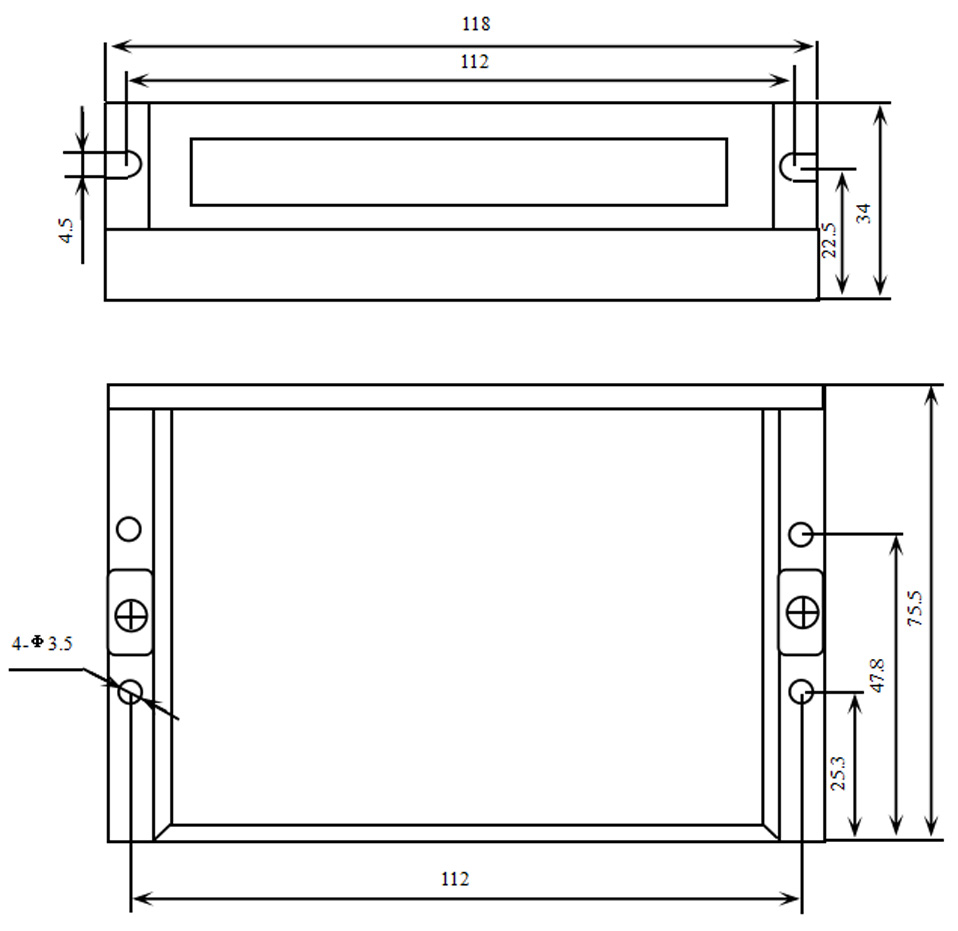

BFD7208S Stepper Motor Driver Dimension:

Nema 23 24 34 Digital Stepper Driver Manual:

1, Q: The motor does not turn and no holding torque:

     A: ① check whether the power line is connected to the wrong voltage is too low, need to increase the voltage or correct the power line

         ② check whether the motor wiring is correct, if not correct motor wiring. Check if the motor wiring is correct, if not, correct the motor wiring.

         ③ Whether the enable signal is valid, resulting in the motor does not work.

         ④ Is the subdividing parameter correct?

         ⑤ Is the current parameter correct?

2、Q：Motor does not rotate but has holding torque:

      A: ① The phase sequence of motor wires is wrong, need to swap any two wires.

          ② Pulse signal input is wrong, need to check the pulse wiring.

3、Q: The motor torque is too small:

      A: ① Phase current setting is too small, need to set the phase current corresponding to the motor.

          ② acceleration is too fast, reduce the acceleration value

          ③ motor blocking, need to rule out mechanical problems

          ④ drive and motor mismatch, need to replace the appropriate drive

4、Q：Motor steering error:

      A: ① motor line phase sequence is wrong, need to swap any two wires

          ② motor line has a broken circuit, check and connect the right

5、Q：The alarm indicator light is on:

     A: ① Is the motor wire connected incorrectly

         ② Whether there is over-voltage and under-voltage conditions

         ③ Motor or driver is damaged

6、Q：Motor acceleration blocking:

     A: ① short acceleration time

         ② motor torque is too small

         ③ Low voltage or current
