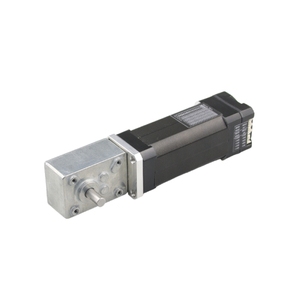

Nema 17 BFIDS42-P01A Integrated BLDC Servo Motor with Worm Gearbox 42x42mm Pluse Control 26W 24V 4000Rpm 0.0625N.m with Integrated Driver

Type: BFIDS42-P01A Pulse Control Integrated Brushless Dc Servo Motor with Worm Gearbox

Poles: 8poles

Rated Power: 26W

Rated Speed: 4000±10%RPM

Rated Current: 1.8A

Rated Torque: 0.0625Nm(8.85oz.in)

Encoder: 17Bit Absolute Encoder

  • BFIDS42-P01A with Worm Gearbox

  • BesFoc

  • Integrated Motors

  • Nema17-42mm

  • 2 phase

  • 1.8°

  • Pulse Type, RS485 ModBus, CANopen Network

  • 10 Pcs

Availability:

The Worm Geared Integrated BLDC Motor combines a brushless DC motor, worm gearbox, and integrated driver into a compact motion control solution. The worm gearbox provides high torque output and effective speed reduction, making it ideal for applications requiring stable, low-speed operation and reliable power transmission. This integrated design reduces installation space, simplifies wiring, and eliminates the need for separate drive components, improving overall system efficiency and reducing integration costs.

BesFoc Worm Geared Integrated BLDC Motors offer high efficiency, low maintenance, and long service life. They are suitable for industrial automation, conveyor systems, AGVs, packaging machinery, and other applications requiring compact, high-torque motion control. Customized gear ratios, motor specifications, and control options are available to meet different application requirements. Contact us for technical support and tailored motor solutions.

BesFoc nema 17 BFIDS42-P01A 42x42x61mm integrated BLDC servo motor with Pluse control 1.8Degree 1.8A 0.0625N.m with 17bit integrated driver. For more different integrated servo motor requirements please contact us!!!

Electrical Specifications:

  • Model Name: BFIDS42-P01A integrated BLDC Servo Motor with Worm Gearbox

  • Phase: 3

  • Poles: 8

  • Rated Power: 26W

  • Rated Voltage: 24VDC

  • Rated Speed: 4000±10%RPM

  • Rated Current: 1.8A

  • Rated Torque: 0.0625Nm(8.85oz.in)

  • Encoder: 17Bit

  • Control Method: Pulse (RS485, CANopen optional)

Physical Specifications:

  • Frame Size: Nema 17 (42 x 42mm)

  • Body Length: 61mm

  • Shaft Diameter: 5mm

  • Shaft Length: 22mm

Integrated Servo Motors Features:

  • Adopting a new 32-bit M4+core with 120M or 240M main frequency

  • Stable torque characteristics from low to high speeds, with high speed and precision

  • Equipped with brake resistor interface to prevent damage to the electromechanical braking system

  • Wide speed range, low temperature rise, and high efficiency

  • Integrated motor and drive, compact size, simple wiring, and drive Good compatibility with the motor

  • Equipped with overcurrent, overvoltage, over temperature, and over differential protection functions

  • Configure a 17 bit single turn absolute encoder

Communication method:

  • Pulse type

  • RS485 MOdbus RTU network type

  • CANopen network type

Protection level:

Waterproof type: IP30, IP54, IP65, optional

Nema 17 Integrated Bldc Servo Motor Electrical Specification:

Electrical Specification
Product Type
/ Integrated Bldc Motor with Worm Gearbox
Model Name / BFIDS42-P01A with Pulse Control
Phase / 3
Poles / 8
Power
W 26
Rated Voltage V 24
Rated Current A 1.6
No Load Current A 0.3
Rated Speed
Rpm 4000±10%
No Load Speed Rpm 6800±10%
Rated Torque N.m 0.0625
Total Height mm 61
Encoder
/ 17Bit
Resistance
ohms 1.8
Back EMF Constant V/Krpm
3.53
Torque Constant
N-m/A 0.034
Dielection Strength / 500VDC for one minute
Operating Temperature ℃ -15 ~ +50
Rotor Inertia
g.cm2 24
Insulation Class / B


Integrated Driver Specification:

Driver Parameters
Min Rated Max
Input Voltage(V)
16 24 36
Logic Input Voltage (V) 5 5 24
Logic Input Current(mA) 10 10 50
Pulse Frequency(KHz)

200


24v Integrated Brushless Motors Usage Environment:

Environment Parameters
Cooling Method Natural or forced cooling
Application Avoid dust, oil and corrosive gases; keep away from other heat generating equipment; prohibit the presence of combustible gases and conductive dust.
Operating Temperature 0℃ ~ +50℃
Environmental humidity ≤85%RH(no condensation)
Vibrations 5.9m/s² max
Storage Temperature -25℃ ~ +70℃



Integrated Driver Status Indicator:

Color Name Function
Green PWR Power indicator
Red ALM Alarm indicator


Integrated Drivers I/O port:

Ports Pin Port Name Description
CN1 1 PUL+ Pulse Signal
2 PUL-
3 DIR+ Direction Signal
4 DIR-
5 ENA+ Enable Signal
6 ENA-
7 NC undefined
8 NC undefined
9 ALM+ Alarm Signal
10 ALM-
CN2
1 NC
undefined
2 NC
undefined
3 NC
undefined
4 COM Common Ports
CN3 1 NC
undefined
2 5V +5V
3 NC
undefined
4 COM
Common Ports


Integrated Driver DIP Switches:

Pin Port Name Description
1 SW1 Subdivide Settings
2 SW2
3 SW3
4 SW4
5 SW5
Setting of motor rotation direction


Integrated Drivers Power and Communication Ports:

Ports Pin Port Name Description
CN4 1 GND Negative power supply wiring
2 VCC Positive power supply wiring
CN5 1 RXD Serial port communication receiver
2 TXD serial port communications sender
3 COM Common port
4 5V +5V


Integrated Driver Subdivide Settings:

Subdivide SW1 SW2
SW3
SW4
200 OFF
OFF
OFF
OFF
400 ON
OFF
OFF
OFF
800 OFF
ON
OFF
OFF
1600 ON
ON
OFF
OFF
3200 OFF
OFF
ON
OFF
6400 ON
OFF
ON
OFF
12800 OFF
ON
ON
OFF
25600
ON
ON
ON
OFF
1000 OFF
OFF
OFF
ON
2000 ON
OFF
OFF
ON
4000 OFF
ON
OFF
ON
5000 ON
ON
OFF
ON
8000 OFF
OFF
ON
ON
10000 ON
OFF
ON
ON
20000 OFF
ON
ON
ON
25000 ON
ON
ON
ON


Setting of Motor Rotation Direction:

The user can set the motor rotation direction via SW5, which works together with the DIR control signal. Changing SW5 setting or DIR control signal can change the current motor rotation direction.

Directions SW5 DIR
CW OFF Low Level
CCW ON Low Level
CCW OFF High Level or Suspended
CW ON High Level or Suspended



Integrated Bldc Motor Dimension:

Integrated Dc Servo Motor Option Customized Service:

步进电机金属带轮
步进电机塑料带轮
步进电机齿轮
步进电机定制
步进电机厂家
步进电机直销

Metal Pulleys

Plastic Pulley

Gear

Shaft Pin

Threaded Shaft

Panel Mount

步进电机工厂直销
步进电机厂家直销
步进电机促销
步进电机工厂
步进电机批发
步进电机直销厂家

Hollow Shaft

Threaded Shaft

Panel Mount

Single Flat

Dual Flat

Key Shaft

Integrated Dc Servo Motor Customized Service:

bldc motor supplier
bldc motor supplier
bldc motor supplier
bldc motor supplier
bldc motor supplier

Cables

Flanges

Fans

Shafts

Integrated Driver

bldc motor supplier
bldc motor supplier
bldc motor supplier
bldc motor supplier
12v stepper motor manufacturer

Brakes

Gearbox

Outer Runner

Coreless Dc

More Custom

Looking for other communication protocols for NEMA 17 42mm Integrated Dc Motor?

  • For RS485 ModBus-RTU control, see [RS485 ModBus-RTU Control BFIDS42-R01A].

  • For CANopen control, see [CANopen Control BFIDS42-C01A].

Need different torque / power / motor length options for Pulse Control?

As a professional [integrated dc servo motor manufacturer], Besfoc provides customized motion control solutions for global clients. Learn more about our factory capabilities.

IDS42 Series Worm Geared Integrated DC Servo Motor

Series

Model

Control Method

Power

Rated Voltage

Rated Current

Rated Speed

Rated Torque

Total body Length

Integrated Encoder

W

V

A

Rpm

Nm

mm

IDS42-0.0625Nm

BFIDS42-P01A

Pulse

26

24

1.8

4000

0.0625

61

17bit

BFIDS42-R01A

RS485

BFIDS42-C01A

CANopen

IDS42-0.125Nm

BFIDS42-P02A

Pulse

53

24

3.3

4000

0.125

81

17bit

BFIDS42-R02A

RS485

BFIDS42-C02A

CANopen

IDS42-0.185Nm

BFIDS42-P03A

Pulse

78

24

4.5

4000

0.185

101

17bit

BFIDS42-R03A

RS485

BFIDS42-C03A

CANopen

IDS42-0.25Nm

BFIDS42-P04A

Pulse

78

24

4.5

3000

0.25

120

17bit

BFIDS42-R04A

RS485

BFIDS42-C04A

CANopen
