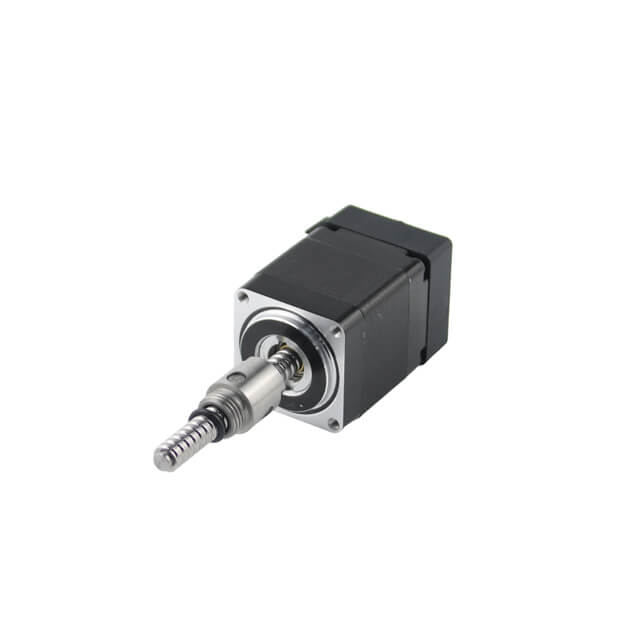

Nema 11 BFISC28-P2A3 Integrated Linear Stepper Servo Motor with External Ball Screw 42x42x61mm Pulse Control (CANopen,RS485 Optional) 0.67A 0.095N.m

Type: Nema11 Integrated Linear Stepper Servo Motor with Ball Screw

Current: 0.67A

Resistance: 6.8Ω

Rated Torque:0.095Nm(13.45oz.in)

Encoder: 1000ppr / 17bit / 15bit

Model:
BFISC28-P2A3 with External Ball Screw
Brand:
BesFoc
Steper Motor Kinds:
Integrated Motors
Lead Screw Kinds:
External Ball Screw
Communication Methods:
Pulse Type, RS485 ModBus, CANopen Network
MOQ:
10 Pcs


Availability:



Inquire

Besfoc nema 11 BFISC28-P2A3 28x28x61mm intelligent integrated stepper servo motor with pulse control 1.8Degree 0.67A 6.8Ω 5.5 mH 0.095N.m with 1000ppr / 17bit / 15bit integrated driver. For more different integrated servo motor requirements please contact us!!!

Electrical Specifications：

Type: Nema11 linear stepper motor with built-in driver
Model Name:BFISC28-P2A3 with External Ball Screw
Phase: 2
Step Angle: 1.8 degree
Current: 0.67A
Resistance: 6.8Ω±10%(20℃)
Inductance: 5.5mH±20%(1kHz 1V RMS)
Holding Torque: 0.095Nm
Encoder: 1000ppr / 17Bit / 15Bit
Control Method: Pulse (RS485, CANopen optional)

Physical Specifications:

Frame Size: Nema 11 (28 x 28mm)
Body Length:61mm
Shaft Diameter: 6mm
Shaft Length: 20mm

Integrated Stepper Servo Motors Features:

Cortex-M4 core high-performance 32-bit micro controller
The highest pulse response frequency can reach 200KHz
Built in protection function, effectively ensuring the safe use of the device
Intelligent current regulation to reduce vibration, noise, and heat generation
Adopting low internal resistance MOS, the heating is reduced by 30% compared to ordinary products
Voltage range: DC12V-36V
Integrated design with integrated drive motor, easy installation, small footprint, and simple wiring
Equipped with anti reverse connection function

Communication method:

Pulse type
RS485 MOdbus RTU network type
CANopen network type

Protection level:

Waterproof type: IP30, IP54, IP65, optional

28mm Integrated Stepper Servo Motors Usage:

Medical equipment, logistics transportation, industrial automation, textile machinery, laser, drawing, traditional Chinese medicine ingredient industry, etc

Nema 11 Motor with Built-in Driver Electrical Specification:

Electrical Specification
Product Type	/	Nema 11 Integrated Linear Stepper Motor
Model Name	/	BFISC28-P2A3 With EXternal Ball Screw
Phase	phase	2
Step Angle	°	1.8
Current	A	0.67
Resistance	Ω	6.8
Inductance	mH	5.5
Rated Torque	N.m	0.095
Total Height	mm	61
Encoder	/	1000ppr / 17Bit / 15Bit
Insulation Class	/	B

Integrated Linear Stepper Motor Nema 11 Physical Specification:

Physical Specification
Frame Size	mm	Nema 11 (28 x 28)
Output Shaft Type	/	External Ball Screw Linear Stepper Motor
No. of Leads	/	4
Leads Length	mm	300
Weight	Kg	0.13

Ball Screw Rod Physical Specification:

Ball Screw Rod Physical Specification
Model	Outside Diameter	Lead	Head Count	Spherical Diameter
G0801	8	1	1	0.8
G0802	8	2	1	1.2

Nema11 Integrated Stepper Motors Usage Environment：

Environment	Parameters
Cooing Method	Natural or forced cooling
Application	Avoid dust, oil and corrosive gases; keep away from other heat generating equipment; prohibit the presence of combustible gases and conductive dust.
Operating Temperature	0℃ ～ +50℃
Environmental humidity	≤85%RH（no condensation）
Vibrations	5.9m/s² max
Storage Temperature	-25℃ ～ +70℃

Integrated Driver Status Indicator：

Color	Name	Function
Green	PWR	Power indicator
Red	ALM	Alarm indicator

V2 Series Integrated Drivers I/O port：

/		Pluse		CANopen		RS485
Ports	Pin	Port Name	Description	Port Name		Description
CN1	1	PUL+	Pluse Signal	DI1+		Digital input 1
	2	PUL-		DI1-
	3	DIR+	Direction Signal	DI2+		Digital input 2
	4	DIR-		DI2-
	5	ENA+	Enable Signal	DI3+		Digital input 3
	6	ENA-		DI3-
	7	BRK+	Brake Signal	DI4+		Digital input 4
	8	BRK-		DI4-
	9	ALM+	Alarm Signal	DO1+		Digital output 1
	10	ALM-		DO1-
	11	READY+	Ready Signal	DO2+		Digital output 2
	12	READY-		DO2-
	13	NC	undefined	NC		undefined
	14	NC	undefined	NC		undefined
	15	NC	undefined	CANL	Low-level CAN bus	485A	RS485 active terminal
	16	NC	undefined	CANH	High-level CAN bus	485B	RS485 negative terminal
	17	/	/	CANL	Low-level CAN bus	485A	RS485 active terminal
	18	/	/	CANH	High-level CAN bus	485B	RS485 negative terminal
CN2	1	V-	Power Connection	V-		Power Connection
	2	V+		V+

Integrated Driver DIP Switches：

Pin	Port Name	Description
1	SW1	Subdivide Settings
2	SW2
3	SW3
4	SW4
5	SW5	Setting of motor rotation direction

Integrated Driver Subdivide Settings：

Subdivide	SW1	SW2	SW3	SW4
200	OFF	OFF	OFF	OFF
400	ON	OFF	OFF	OFF
800	OFF	ON	OFF	OFF
1600	ON	ON	OFF	OFF
3200	OFF	OFF	ON	OFF
6400	ON	OFF	ON	OFF
12800	OFF	ON	ON	OFF
25600	ON	ON	ON	OFF
1000	OFF	OFF	OFF	ON
2000	ON	OFF	OFF	ON
4000	OFF	ON	OFF	ON
5000	ON	ON	OFF	ON
8000	OFF	OFF	ON	ON
10000	ON	OFF	ON	ON
20000	OFF	ON	ON	ON
25000	ON	ON	ON	ON

Setting of Motor Rotation Direction：

The user can set the motor rotation direction via SW5, which works together with the DIR control signal. Changing SW5 setting or DIR control signal can change the current motor rotation direction.
