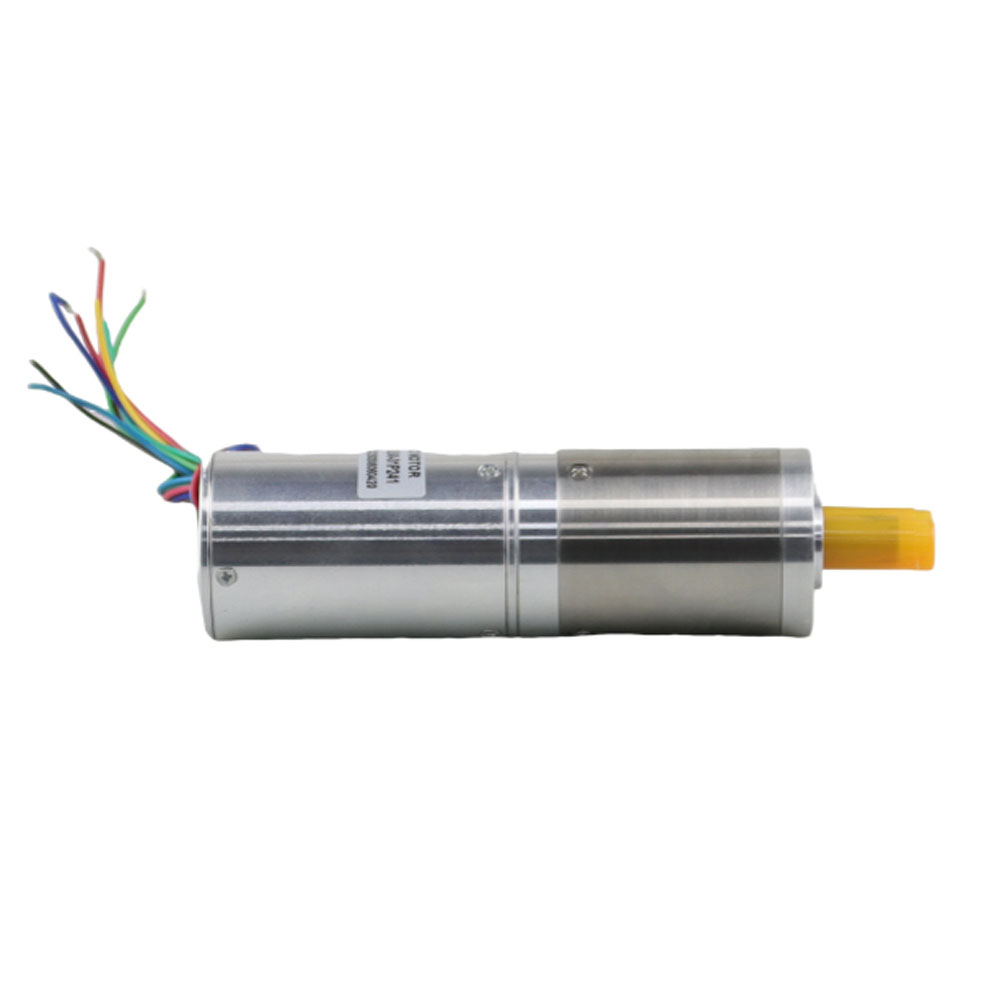

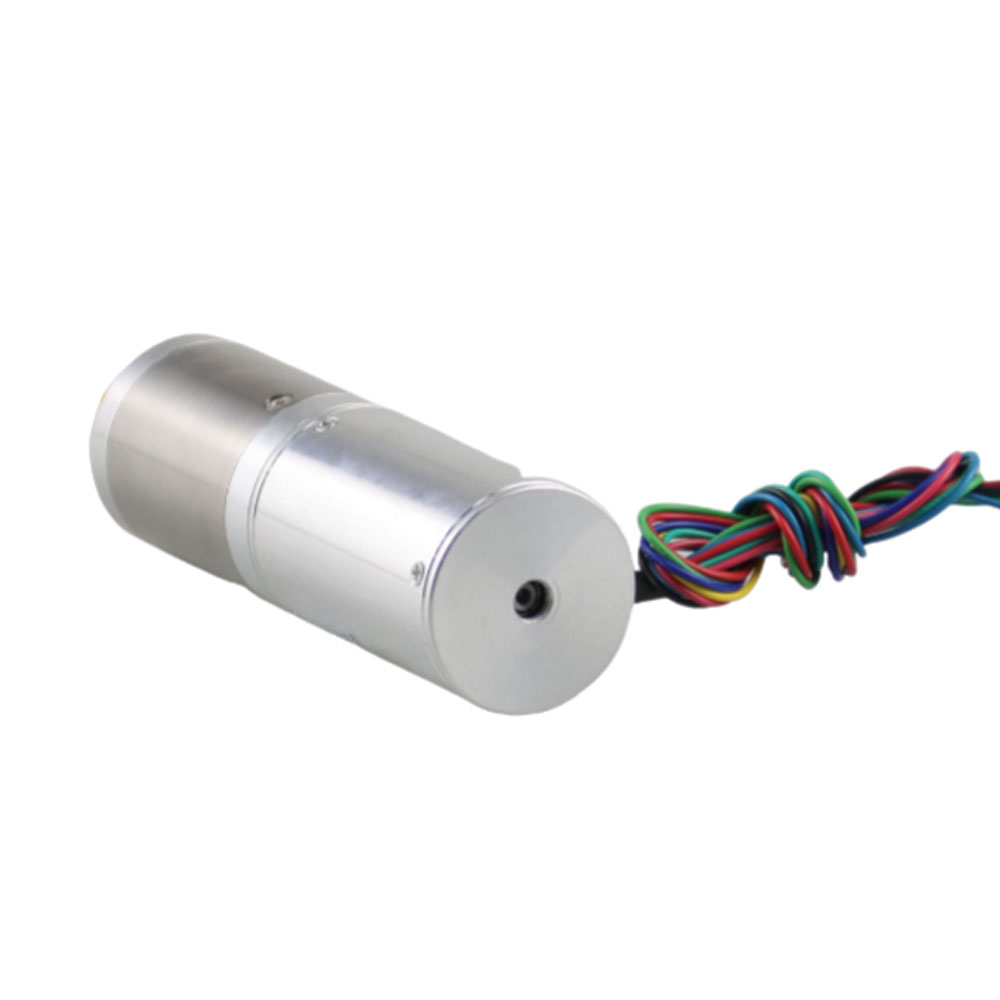

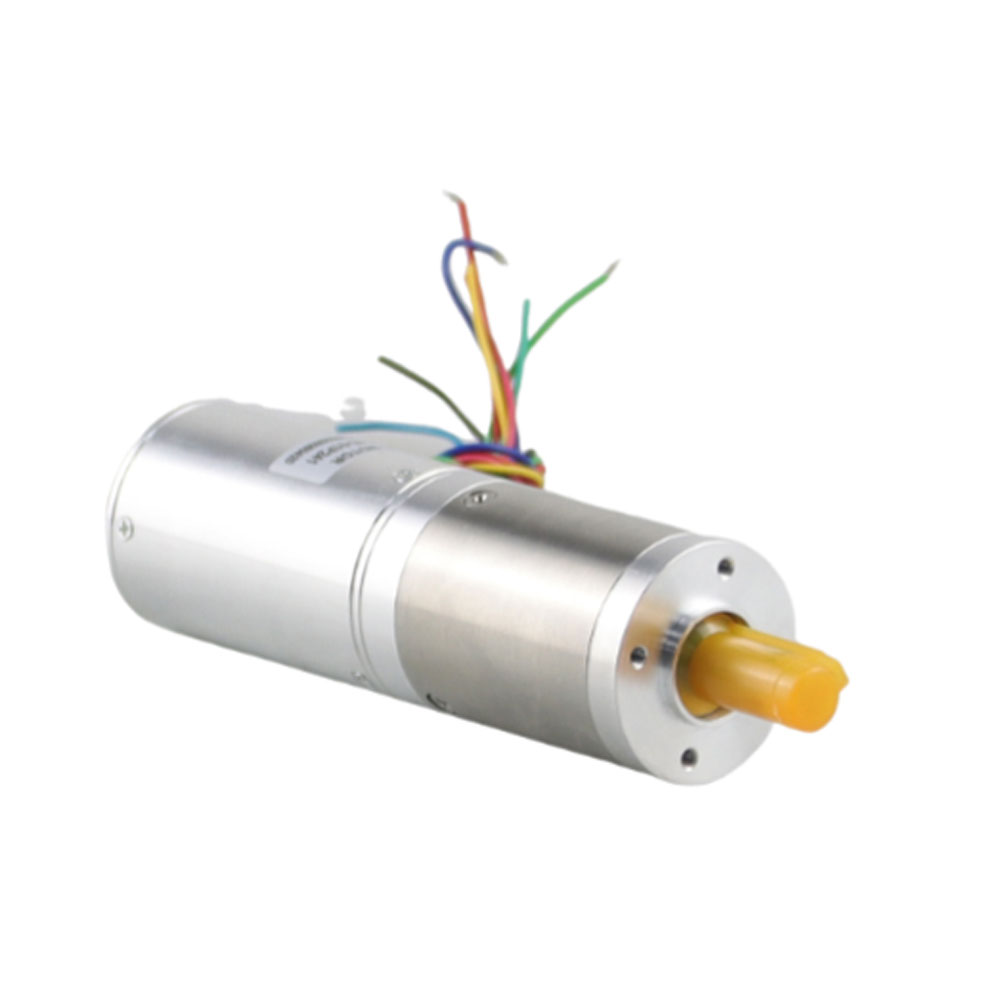

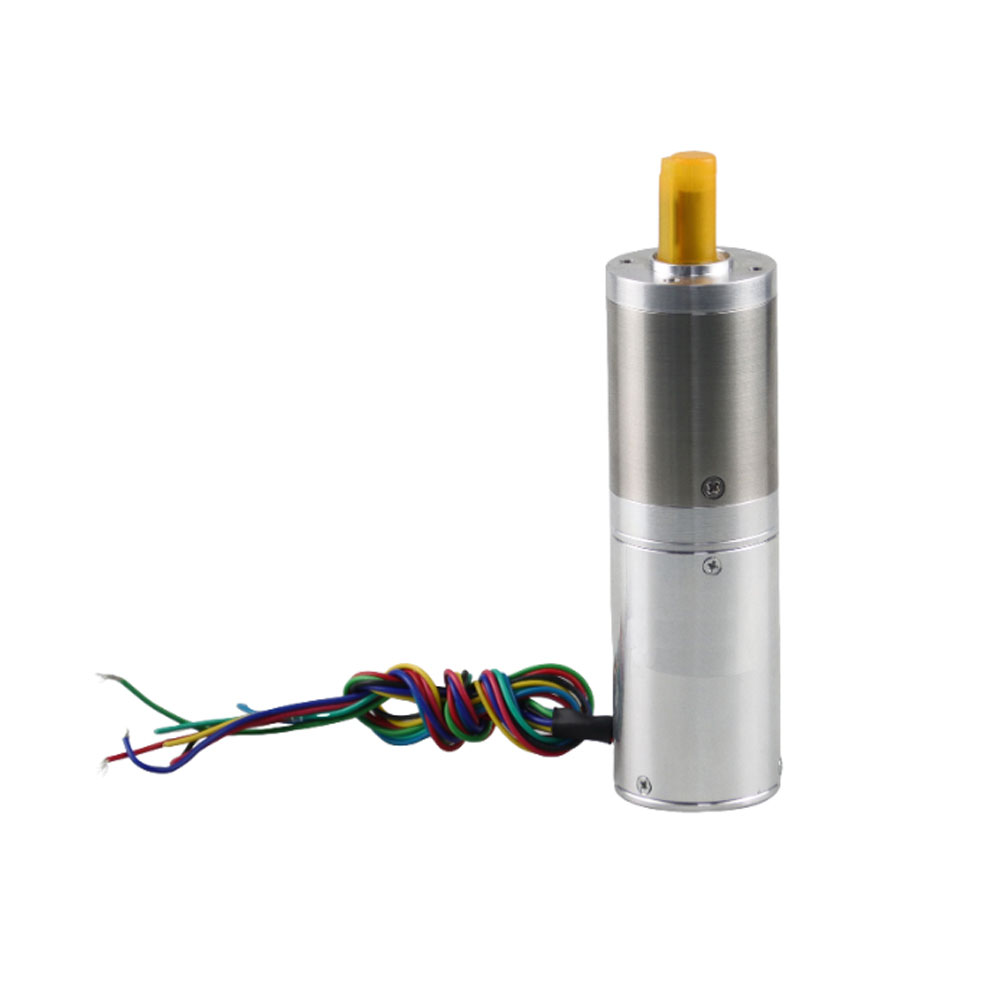

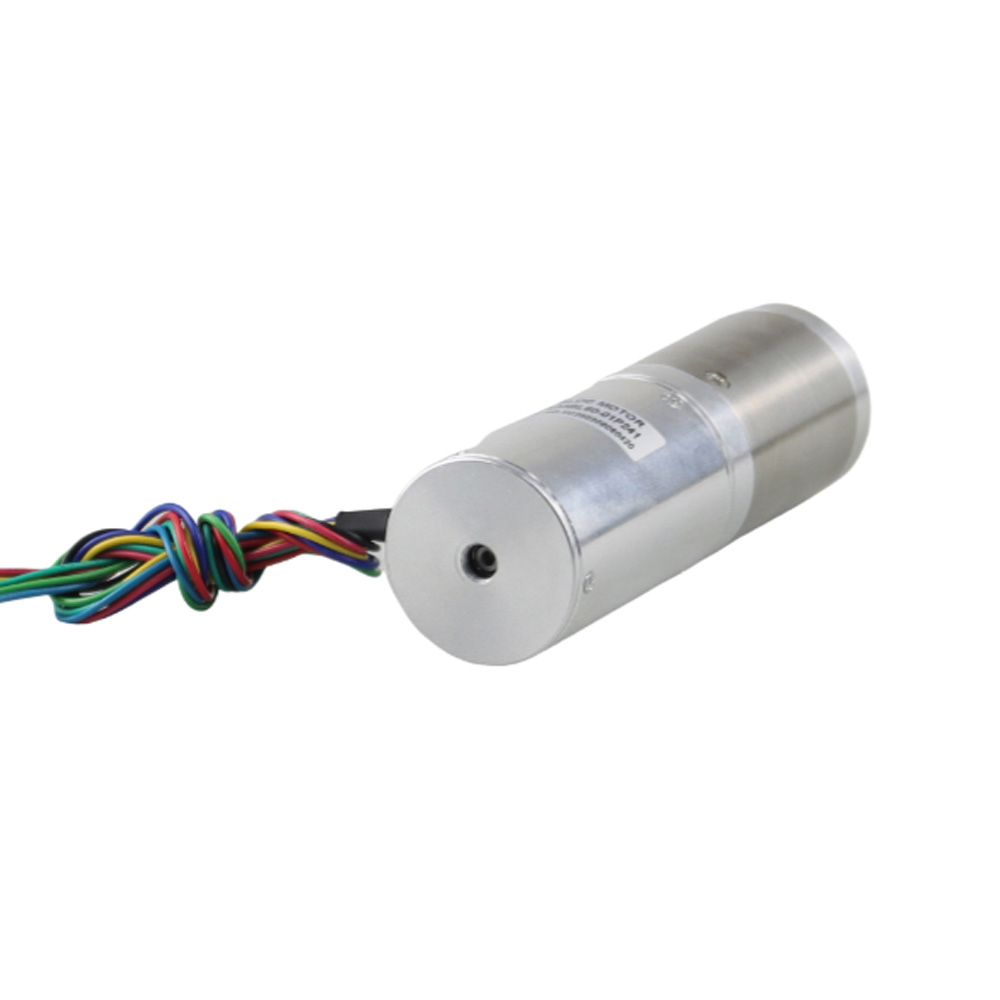

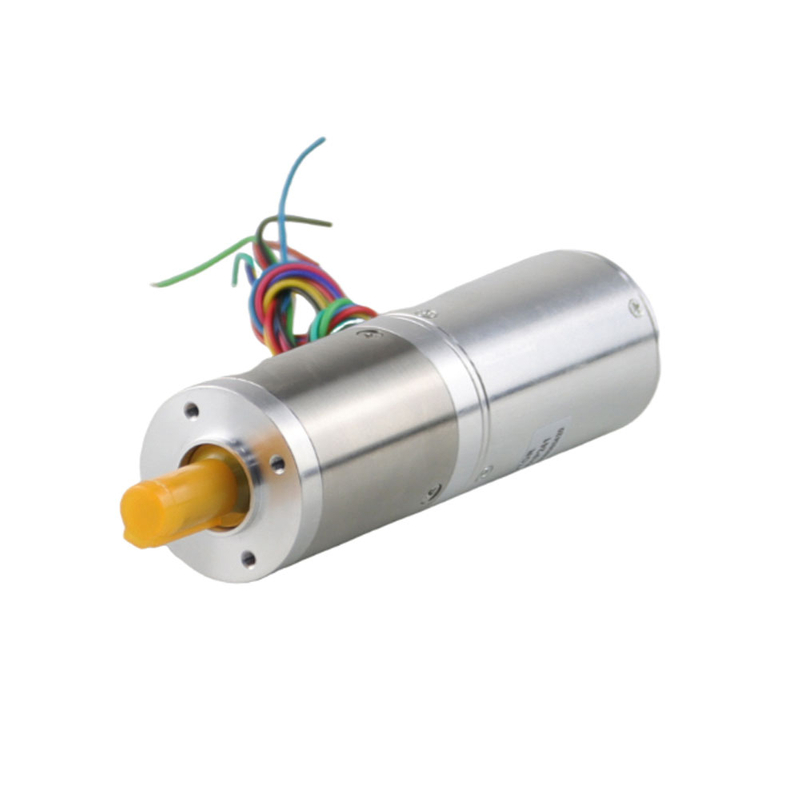

BF33BL80-24 Geared Round Head BLDC Motor with Common Planetary Gearbox 33x33mm 3 Phase 4-Wires

Type: 33mm 24V 40W Brushless Dc Motor
Phase: 3
Poles: 4
Rated Torque: 50mN.m
Peak Current: 5.6A
Body Length: 80mm
Customized Parts: Motors, Gearboxes, Encoders, Brakes......

  • BF33BL80-24 Geared BLDC Motor

  • Besfoc

  • 4 poles

  • 24V

  • 10 Pcs

Availability:
Inquire

24V 33BL 33mm Brushless Dc Motor General Specifications:

General Specifications
Item Specification
Winding type Star
Hall effect angle 120 degree electrical angle
Shaft run out 0.025mm
Radial play 0.02mm@450g
End play 0.08mm@450g
Max.radial force 10N@10mm from the flange
Max. axial force 2N
Insulation class Class B
Dielectric Strength 600VAC/1S
Insulation Resistance 100MΩ Min., 500VDC


33BL Dc Brushless Motor Electrical Specification:

Electrical Specification
Model

/

 JK33BL80-24
Phase / 3
Poles / 4
Rated Voltage vdc 24
Rated Speed rpm
 7800
Rated Torque mN.m 50
Peak Torque mN.m 150
Rated Power W 40
Peak Torque mN.m 60
Peak Current A 5.6
Wire Resistance ohms@20℃ 0.86
Back E.M.F

Vrms/Krpm

 2
Torque Constant mN.m/A 27
Rotor Inertia g.cm2 23.55
Body Length mm 80
Weight kg 0.2
Sensor / Honey-well
Insulation Class / B
Insulation Class / IP30
Storage Temperature ℃ -25～+70℃
Operating Temperature ℃ -15～+50℃
Working Humidity RH 85% RH or less (no condensation) ≤85% RH
Working Environment / Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust
Altitude m 1000 meters or less

Wires Connection:

Bldc Motors Wires Hall Sensor Wires
U V W +5VDC
 GND Hu
 Hv Hw
Yellow Green Blue Red Black Yello
 Green Blue



33BL 24V Bldc Motor Dimension:


33mm brushless dc motor


3 Phase Brushless Dc Motor Optional Parts：

Motor, Gearbox, Encoder, Brake, Integrated Driver...


Customized Shaft Service:

Metal Pulleys

Metal Pulleys

Plastic Pulley

Plastic Pulley

Gear

Gear

Shaft Pin

Shaft Pin

Threaded Shaft

Threaded Shaft

Panel Mount

Panel Mount

Hollow Shaft

Hollow Shaft

Threaded Shaft

Threaded Shaft

Panel Mount

Panel Mount

Single Flat

Single Flat

Dual Flat

Dual Flat

Key ShaftKey Shaft


Other Customized Parts of Bldc Motors：

brushless dc motor

Cables

brushless dc motor customized

Flange

brushless dc motor basics

Shaft

brushless dc motor controller 36v

Screw Rod

outter runner bldc motor

Outter Runner

coreless dc motor manufacturer

Coreless Dc Motors

bldc motor with worm gearbox

Worm Gearbox

brushless dc geared motor

Common Gear

brushless dc motor with planetary gearbox

Planetary Gear

bldc motor with brake

Brake

integrated brushless dc motor

Built-in Driver

brushless dc motor drivers

Drivers


24V 33BL Brushless Dc Motor Drawing:



Suitable Drivers Manual:
