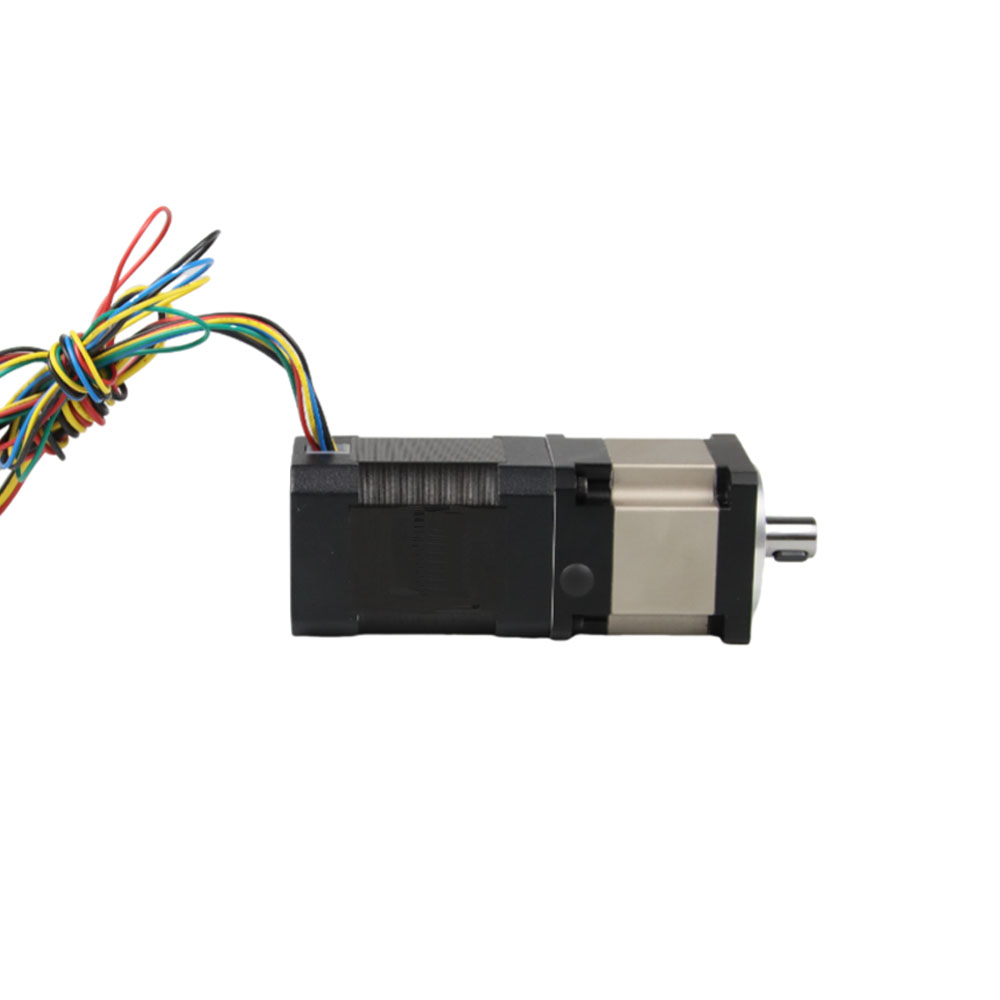

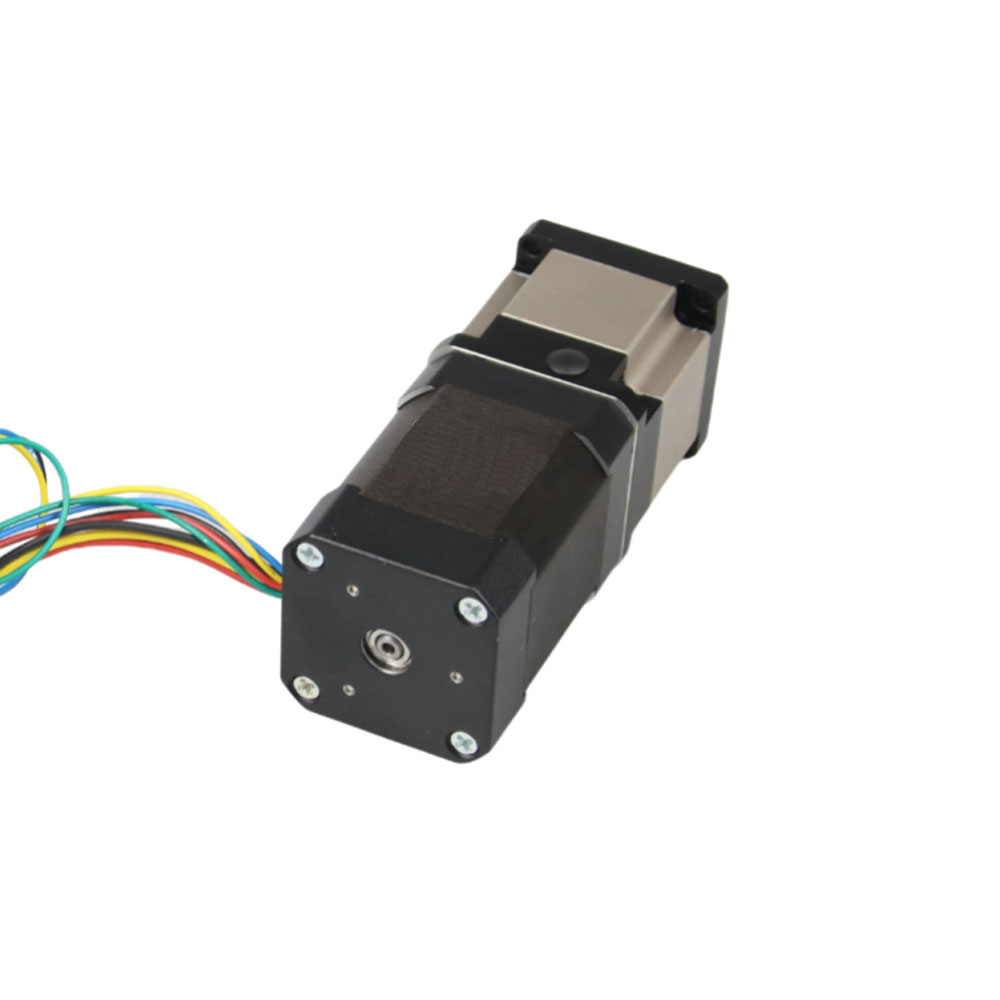

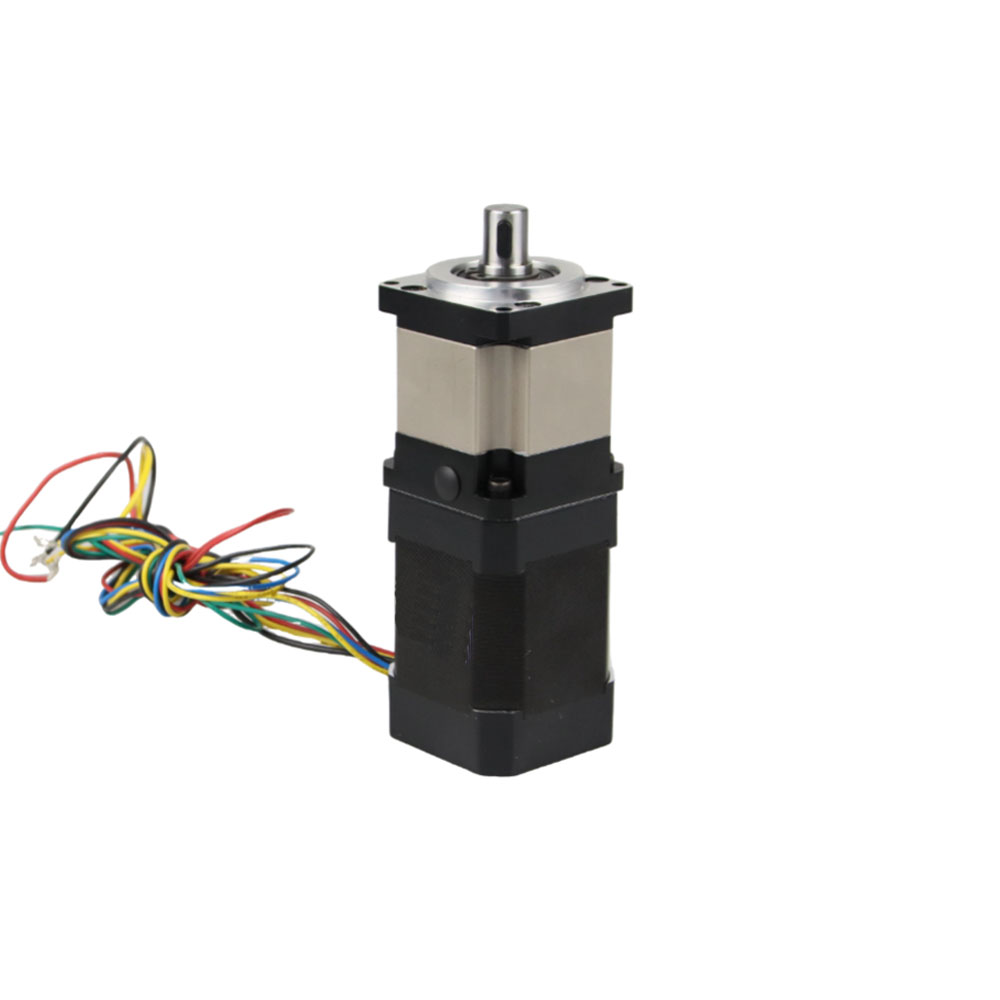

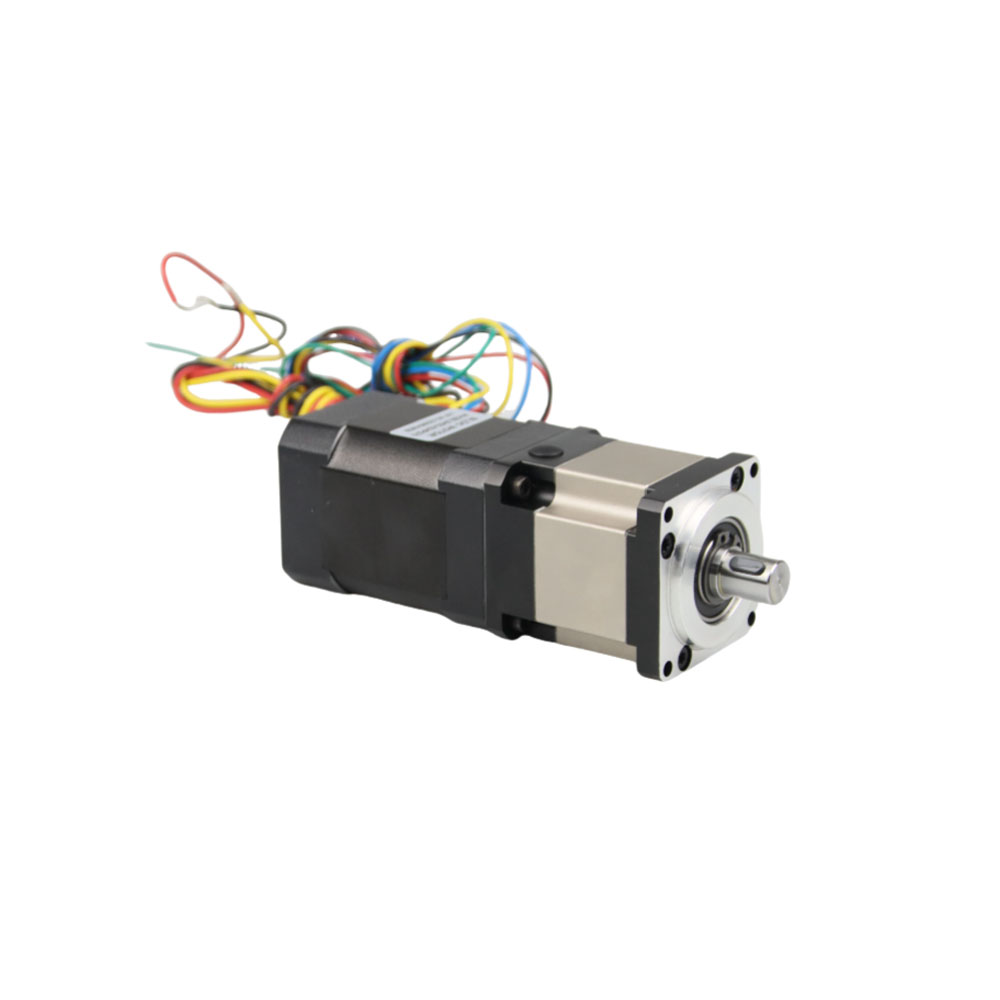

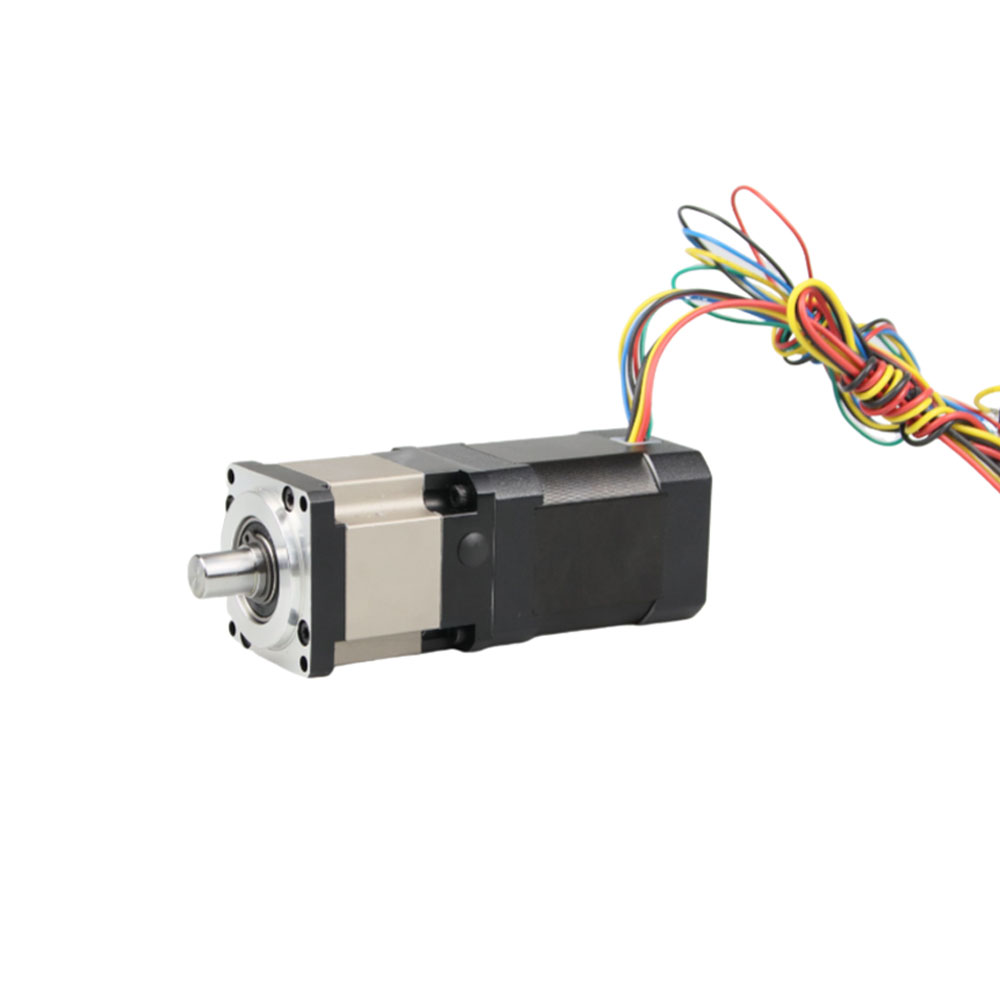

Nema 17 BF42BLS04 Square Head Geared BLDC Motor with High Precision Planetary Gearbox 42x42mm 3 Phase

Type: 42mm 24V 105W Brushless Dc Motor
Phase: 3
Poles: 8
Rated Torque: 0.25N.m
Rated Current: 6.3A
Body Length: 100mm
Customized Parts: Motors, Gearboxes, Encoders, Brakes, Integrated Drivers...

Model:
BF42BLS04 Geared BLDC Motor
Brand:
Besfoc
Rated Speed:
4000rpm
Bldc Poles:
8 poles
Bldc Motor Size:
Nema17 (42mm)
Rated Voltage:
24V
MOQ:
10 Pcs


Availability:



Inquire

24V Nema 17 Brushless Dc Motor General Specifications

General Specifications
Item	Specification
Winding type	Delt
Hall effect angle	120 degree electrical angle
Shaft run out	0.025mm
Radial play	0.02mm@450g
End play	0.08mm@450g
Max.radial force	28N@20mm from the flange
Max. axial force	10N
Insulation class	Class B
Dielectric Strength	500VDC for one minute
Insulation Resistance	100MΩ Min., 500VDC

Nema 17 Dc Brushless Motor Electrical Specification:

Electrical Specification
Model	/	BF42BLS04
Phase	/	3
Poles	/	8
Rated Voltage	vdc	24
Rated Speed	rpm	4000
Rated Torque	N.m	0.25
Rated Current	A	6.3
Rated Power	W	105
Peak Torque	N.m	0.75
Peak Current	A	20
Back E.M.F	V/Krpm	4.3
Torque Constant	N.m/A	0.041
Rotor Inertia	g.cm2	96
Body Length	mm	100
Weight	kg	0.8
Sensor	/	Honey-well
Insulation Class	/	B
Insulation Class	/	IP30
Storage Temperature	℃	-25～+70℃
Operating Temperature	℃	-15～+50℃
Working Humidity	RH	85% RH or less (no condensation) ≤85% RH
Working Environment	/	Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust
Altitude	m	1000 meters or less

Wires Connection:

Bldc Motors Wires			Hall Sensor Wires
U	V	W	+5VDC	GND	Hu	Hv	Hw
Yellow	Green	Blue	Red	Black	Yello	Green	Blue

Nema 34 BF86BLS125 Square Head Geared BLDC Motor with High Precision Planetary Gearbox 86x86mm 3 Phase

Nema 34 BF86BLS98 Square Head Geared BLDC Motor with High Precision Planetary Gearbox 86x86mm 3 Phase

Nema 34 BF86BLS84 Square Head Geared BLDC Motor with High Precision Planetary Gearbox 86x86mm 3 Phase

Nema 34 BF86BLS71 Square Head Geared BLDC Motor with High Precision Planetary Gearbox 86x86mm 3 Phase

BF86BLS58 Square Head Geared BLDC Motor with High Precision Planetary Gearbox 86x86mm 3 Phase

BF80BLS04 Square Head Geared BLDC Motor with High Precision Planetary Gearbox 80x80mm 3 Phase

BF80BLS03 Square Head Geared BLDC Motor with High Precision Planetary Gearbox 80x80mm 3 Phase

BF80BLS02 Square Head Geared BLDC Motor with High Precision Planetary Gearbox 80x80mm 3 Phase

BF80BLS01 Square Head Geared BLDC Motor with High Precision Planetary Gearbox 80x80mm 3 Phase

Nema 24 BF60BLS04 Square Head Geared BLDC Motor with High Precision Planetary Gearbox 60x60mm 3 Phase

Nema 24 BF60BLS03 Square Head Geared BLDC Motor with High Precision Planetary Gearbox 60x60mm 3 Phase

Nema 24 BF60BLS02 Square Head Geared BLDC Motor with High Precision Planetary Gearbox 60x60mm 3 Phase

Nema 24 BF60BLS01 Square Head Geared BLDC Motor with High Precision Planetary Gearbox 60x60mm 3 Phase

Nema 23 BF57BLS005 Square Head Geared BLDC Motor with High Precision Planetary Gearbox 57x57mm 3 Phase

Nema 23 BF57BLS04 Square Head Geared BLDC Motor with High Precision Planetary Gearbox 57x57mm 3 Phase

Nema 23 BF57BLS03 Square Head Geared BLDC Motor with High Precision Planetary Gearbox 57x57mm 3 Phase

Nema 23 BF57BLS02 Square Head Geared BLDC Motor with High Precision Planetary Gearbox 57x57mm 3 Phase

Nema 23 BF57BLS01 Square Head Geared BLDC Motor with High Precision Planetary Gearbox 57x57mm 3 Phase

Nema 23 BF57BLS005 Square Head Geared BLDC Motor with High Precision Planetary Gearbox 57x57mm 3 Phase

Nema 17 BF42BLS03 Square Head Geared BLDC Motor with High Precision Planetary Gearbox 42x42mm 3 Phase

Nema 17 BF42BLS01 Square Head Geared BLDC Motor with High Precision Planetary Gearbox 42x42mm 3 Phase

Model	/	BF-HPS42-L1				BF-HPS42-L2
Gear Ratio	/	4	5	7	10	16	20	25	28	35	40	50	70
Gear Trains	/	1				2
Gearbox Length	mm	60				71
Rated Torque	N.m	9	9	5	5	12	12	10	10	10	10	10	10
Sundden Stop Torque	N.m	18	18	10	10	24	24	20	20	20	20	20	20
Back Lash	arcmin	≤15 arcmin				≤20 arcmin
Efficiency	%	96				94
Suitable Motor Dimension	mm	Φ5-10 / Φ22-2 / F31-M3				Φ5-10 / Φ22-2 / F31-M3
Rated Input Speed	Rpm	3000				3000
Max Input Speed	Rpm	6000				6000
Average Life Span	h	20000				20000
Axial Force	N	100				100
Radial Force	N	300				300
Noise	dB	≤65				≤65
Protection Level	IP	IP54				IP54
Work Temp.	℃	-20 to +150				-20 to +150
Out Shaft Type	/	Key Shaft Type				Key Shaft Type

Model	/	BF-HPS42-L1SW				BF-HPS42-L2SW
Gear Ratio	/	4	5	7	10	16	20	25	28	35	40	50	70
Gear Trains	/	1				2
Gearbox Length	mm	75				86
Rated Torque	N.m	9	9	5	5	12	12	10	10	10	10	10	10
Sundden Stop Torque	N.m	18	18	10	10	24	24	20	20	20	20	20	20
Back Lash	arcmin	≤15 arcmin				≤20 arcmin
Efficiency	%	96				94
Suitable Motor Dimension	mm	Φ5-24 / Φ22-2 / F31-M3				Φ5-10 / Φ22-2 / F31-M3
Rated Input Speed	Rpm	3000				3000
Max Input Speed	Rpm	6000				6000
Average Life Span	h	20000				20000
Axial Force	N	100				100
Radial Force	N	300				300
Noise	dB	≤65				≤65
Protection Level	IP	IP54				IP54
Work Temp.	℃	-20 to +150				-20 to +150
Out Shaft Type	/	Key Shaft Type				Key Shaft Type

Model	/	BF-HPS42-L1				BF-HPS42-L2
Gear Ratio	/	4	5	7	10	16	20	25	28	35	40	50	70
Gear Trains	/	1				2
Gearbox Length	mm	60				71
Rated Torque	N.m	9	9	5	5	12	12	10	10	10	10	10	10
Sundden Stop Torque	N.m	18	18	10	10	24	24	20	20	20	20	20	20
Back Lash	arcmin	≤15 arcmin				≤20 arcmin
Efficiency	%	96				94
Suitable Motor Dimension	mm	Φ5-10 / Φ22-2 / F31-M3				Φ5-10 / Φ22-2 / F31-M3
Rated Input Speed	Rpm	3000				3000
Max Input Speed	Rpm	6000				6000
Average Life Span	h	20000				20000
Axial Force	N	100				100
Radial Force	N	300				300
Noise	dB	≤65				≤65
Protection Level	IP	IP54				IP54
Work Temp.	℃	-20 to +150				-20 to +150
Out Shaft Type	/	Key Shaft Type				Key Shaft Type

Model	/	BF-HPS42-L1SW				BF-HPS42-L2SW
Gear Ratio	/	4	5	7	10	16	20	25	28	35	40	50	70
Gear Trains	/	1				2
Gearbox Length	mm	75				86
Rated Torque	N.m	9	9	5	5	12	12	10	10	10	10	10	10
Sundden Stop Torque	N.m	18	18	10	10	24	24	20	20	20	20	20	20
Back Lash	arcmin	≤15 arcmin				≤20 arcmin
Efficiency	%	96				94
Suitable Motor Dimension	mm	Φ5-24 / Φ22-2 / F31-M3				Φ5-10 / Φ22-2 / F31-M3
Rated Input Speed	Rpm	3000				3000
Max Input Speed	Rpm	6000				6000
Average Life Span	h	20000				20000
Axial Force	N	100				100
Radial Force	N	300				300
Noise	dB	≤65				≤65
Protection Level	IP	IP54				IP54
Work Temp.	℃	-20 to +150				-20 to +150
Out Shaft Type	/	Key Shaft Type				Key Shaft Type

Integrated Servo Motors & Linear Motions Supplier

Nema 17 BF42BLS04 Square Head Geared BLDC Motor with High Precision Planetary Gearbox 42x42mm 3 Phase

24V Nema 17 Brushless Dc Motor General Specifications

General Specifications

Nema 17 Dc Brushless Motor Electrical Specification:

Wires Connection:

24V Nema 17 Brushless Dc Motor General Specifications

General Specifications

Nema 17 Dc Brushless Motor Electrical Specification:

Wires Connection:

BF-HPS42-L Planetary Gearbox Specification:

BF-HPS42-LSW Planetary Gearbox Specification:

BF-HPS42-L Planetary Gearbox Specification:

BF-HPS42-LSW Planetary Gearbox Specification:

Nema17 24V Bldc Motor Dimension:

BF-HPS42-L Series Output Dimension:

BF-HPS42-L1:

BF-HPS42-L2:

BF-HPS42-LSW Series Output Dimension:

BF-HPS42-L1SW:

BF-HPS42-L2SW:

Nema17 24V Bldc Motor Dimension:

BF-HPS42-L Series Output Dimension:

BF-HPS42-L1:

BF-HPS42-L2:

BF-HPS42-LSW Series Output Dimension:

BF-HPS42-L1SW:

BF-HPS42-L2SW:

3 Phase Bldc Motor Optional Parts：

Customized Shaft Service:

Other Customized Parts of Bldc Motors：

3 Phase Bldc Motor Optional Parts：

Customized Shaft Service:

Other Customized Parts of Bldc Motors：

24V Nema 17 Brushless Dc Motor Drawing:

BF42BLS04 outline.pdf

Suitable Drivers Manual:

24V Nema 17 Brushless Dc Motor Drawing:

BF42BLS04 outline.pdf

Suitable Drivers Manual:
