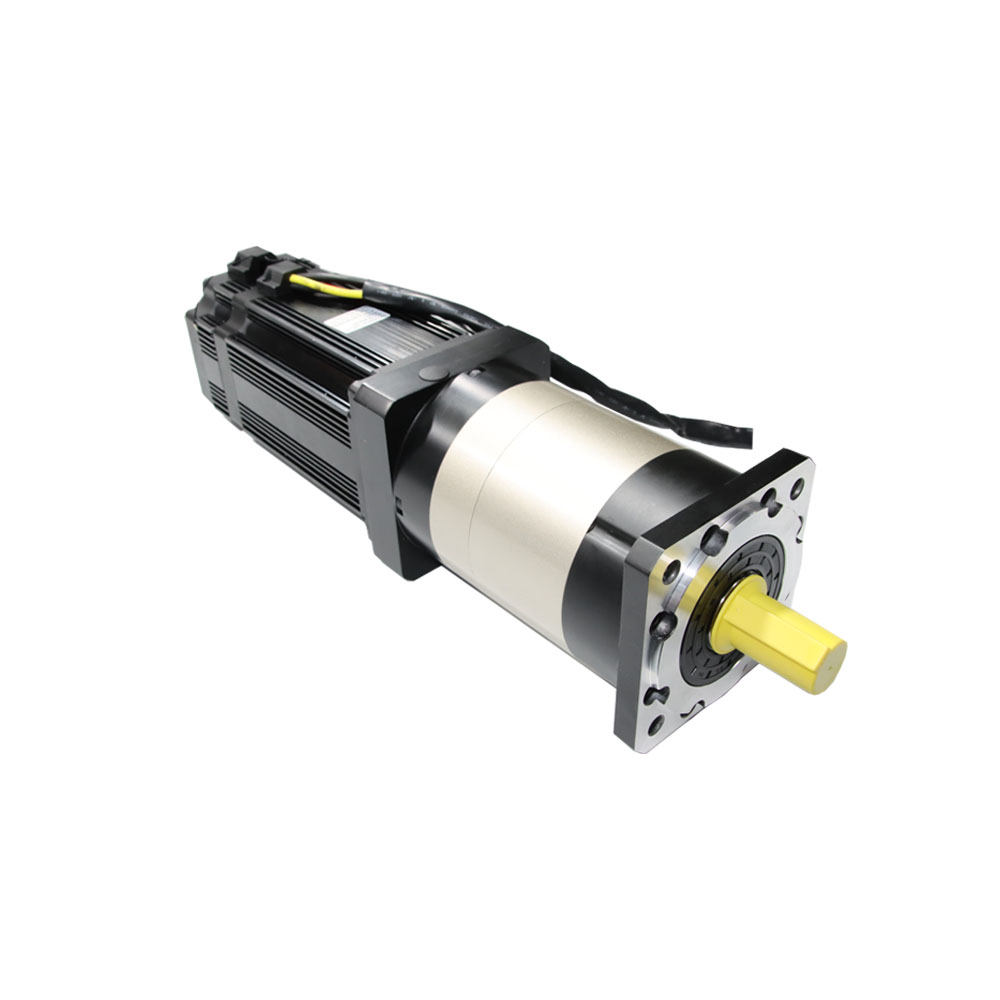

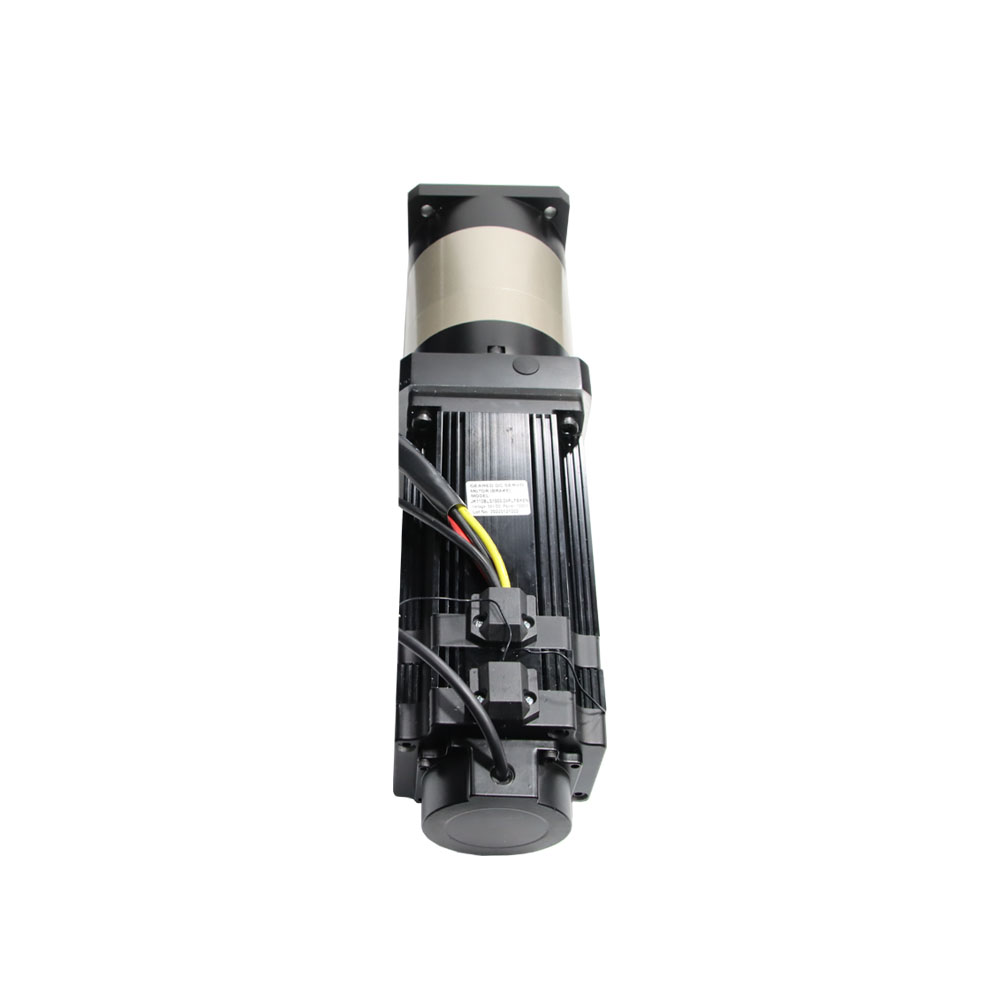

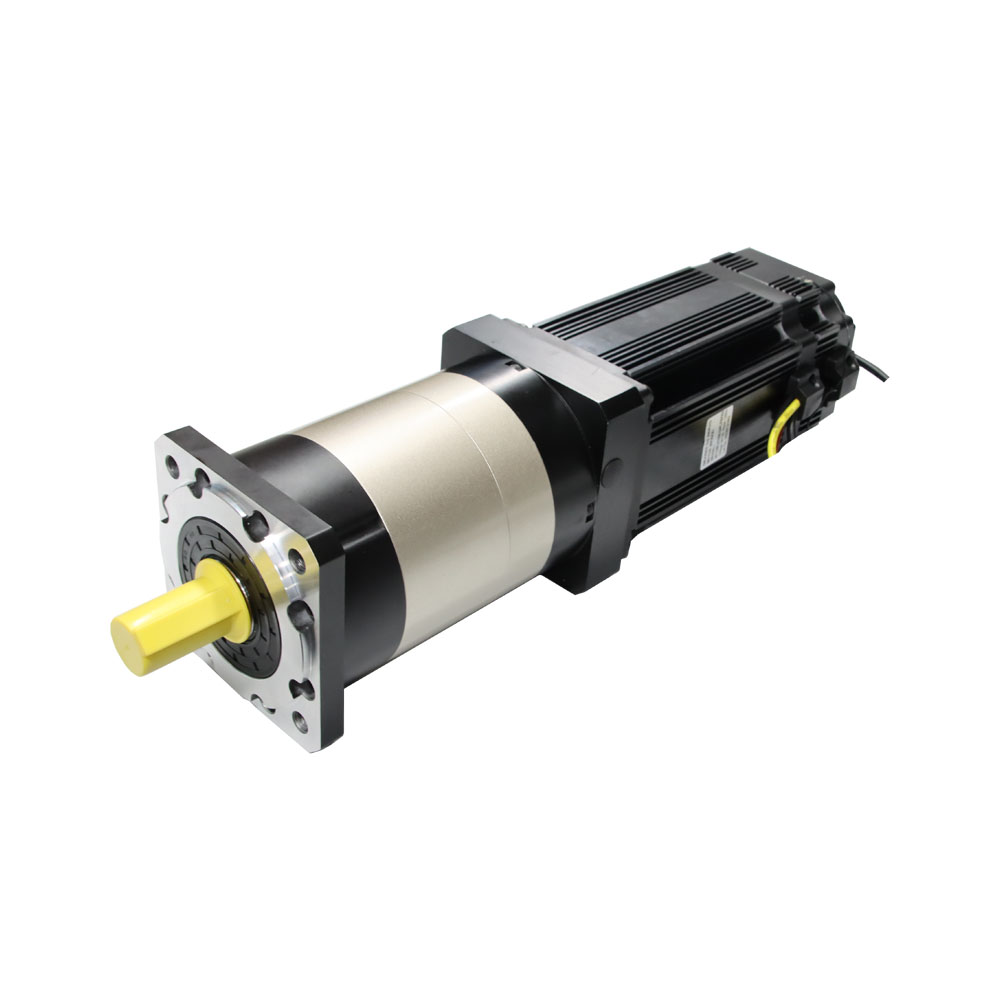

Nema 42 BF110BLS75 Square Head Geared BLDC Motor with High Precision Gearbox 110x110mm 3 Phase

Type: Nema 42 110mm 310V 110BLS 1030W Brushless BLDC Dc Motor
Phase: 3
Poles: 8
Rated Torque: 3.3N.m
Rated Current: 23.7A
Body Length: 159mm
Customized Parts: Motors, Gearboxes, Encoders, Brakes...

Model:
BF110BLS75 Geared BLDC Motor
Rated Speed:
3000rpm
Bldc Poles:
8 poles
Bldc Motor Size:
Nema42 (110mm)
Rated Voltage:
310V
MOQ:
10 Pcs


Availability:



Inquire

310V Nema 42 Brushless Dc Motor General Specifications:

General Specifications
Item	Specification
Winding type	Star
Hall effect angle	120 degree electrical angle
Shaft run out	0.025mm
Radial play	0.02mm@450g
End play	0.08mm@450g
Max.radial force	300N@20mm from the flange
Max. axial force	70N
Insulation class	Class B
Dielectric Strength	1200VDC for one minute
Insulation Resistance	100MΩ Min., 500VDC

Nema 42 Dc Brushless Motor Electrical Specification:

Electrical Specification
Model	/	JK110BLS75
Phase	/	3
Poles	/	8
Rated Voltage	vdc	310
Rated Speed	rpm	3000
Rated Torque	N.m	3.3
Rated Current	A	3.7
Rated Power	W	1030
No Load Current	A	0.6
Back E.M.F	V/Krpm	91.1
Torque Constant	N.m/A	0.87
Body Length	mm	159
Weight	kg	4.5
Sensor	/	Honey-well
Insulation Class	/	B
Insulation Class	/	IP30
Storage Temperature	℃	-25～+70℃
Operating Temperature	℃	-15～+50℃
Working Humidity	RH	85% RH or less (no condensation) ≤85% RH
Working Environment	/	Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust
Altitude	m	1000 meters or less

Nema 42 BF110BLS125 Square Head Geared BLDC Motor with High Precision Gearbox 110x110mm 3 Phase

Nema 42 BF110BLS100 Square Head Geared BLDC Motor with High Precision Gearbox 110x110mm 3 Phase

Nema 42 BF110BLS50 Square Head Geared BLDC Motor with High Precision Gearbox 110x110mm 3 Phase

Nema 42 BF110BLS125 Square Head 3000rpm 310V 6.6N.m 3HP 2070W 2KW 7.7A Ф110x110x209mm Brushless BLDC Dc Motor

Nema 42 BF110BLS100 Square Head 3000rpm 310V 5N.m 2HP 1570W 1.5KW 5.6A Ф110x110x184mm Brushless BLDC Dc Motor

Nema 42 BF110BLS75 Square Head 3000rpm 310V 3.3N.m 1030W 3.7A Ф110x110x159mm Brushless BLDC Dc Motor

Nema 42 BF110BLS50 Square Head 3000rpm 310V 2.38N.m 1HP 750W 2.7A Ф110x110x134mm Brushless BLDC Dc Motor

Nema 34 Square Head BF86BLS125 3000rpm 48V 2.1N.m 660W 18A Ф86x86x138.5m Brushless Dc Motor

Nema 34 Square Head BF86BLS98 3000rpm 48V 1.4N.m 440W 11.5A Ф86x86x111.5m Brushless Dc Motor

Nema 34 Square Head BF86BLS84 3000rpm 48V 1.05N.m 330W 9A Ф86x86x98m Brushless Dc Motor

Nema 34 Square Head BF86BLS71 3000rpm 48V 0.7N.m 220W 6.3A Ф86x86x84.5m Brushless Dc Motor

Nema 34 Square Head BF86BLS58 3000rpm 48V 0.35N.m 110W 3A Ф86x86x71m Brushless Dc Motor

80mm Round Head BF80BLS04 3000rpm 48V 1.4N.m 440W 10.5A Ф80x80x138mm Brushless Dc Motor

80mm Round Head BF80BLS03 3000rpm 48V 1.05N.m 330W 8A Ф80x80x118mm Brushless Dc Motor

80mm Round Head BF80BLS02 3000rpm 48V 0.7N.m 220W 5.5A Ф80x80x98mm Brushless Dc Motor

80mm Round Head BF80BLS01 3000rpm 48V 0.35N.m 110W 3A Ф80x80x78mm Brushless Dc Motor

Nema 24 Square Head BF60BLS04 3000rpm 48V 1.2N.m 377W 9.5A Ф60x60x141mm Brushless Dc Motor

Nema 24 Square Head BF60BLS03 3000rpm 48V 0.9N.m 283W 7.5A Ф60x60x120mm Brushless Dc Motor

Nema 24 Square Head BF60BLS02 3000rpm 48V 0.6N.m 188W 5.2A Ф60x60x99mm Brushless Dc Motor

Nema 24 Square Head BF60BLS01 3000rpm 48V 0.3N.m 94W 2.8A Ф60x60x78mm Brushless Dc Motor

Stage	Ⅰ Stage		Ⅱ Stage		Ⅲ Stage
Ratio	3、4、5、7、10		12、15、16、20、25、28、35、40、50、70、100		64、80、100、120、125、140、175、200、250、280、350、400、500、700、1000
	A	B	A	B	A	B
Length (mm)	86	212	118	244	150	276
Rated Speed (rpm)	3500		3500		3500
Max Speed (rpm)	6000		6000		6000
Max. radial force (N)	1600		1600		1600
Max. axial force (N)	1350		1350		1350
No-load Torque (N.m)	1.3		0.6		0.6
Efficiency (%)	96		94		90
Backlash (arcmin)	≤10		≤15		≤18
Noise (dB)	≤65		≤65		≤65
Weight (kg)	1.1		1.3		1.5
Working Lifetime (h)	＞20000 （Continuous operating life halved）
Torsional rigidity (Nm/arcmin)	15
Lubrication Method	Long-term
Rotation Direction	Input/Output Syntropy
Protection Class	IP65
Mounting Position	Arbitrarily

Ratio（i）	Ⅰ Stage					Ⅱ Stage
Ratio（i）	3	4	5	7	10	12	15	16	20	25	28	35	40	50	70	100
Rated output torque (Nm）	105	230	220	160	100	105	105	260	260	245	260	245	260	245	195	110
Max Output torque (Nm）	210	460	440	320	200	210	210	520	520	490	520	490	520	490	390	220
Rotor Interia（kg.cm² )	2.63	1.79	1.53	1.41	1.30	2.63	2.63	1.75	1.50	1.49	1.30	1.30	1.30	1.30	2.57	1.30
Ⅲ Stage
Ratio（i）	64	80	100	120	125	140	175	200	250	280	350	400	500	700	1000
Rated output torque (Nm）	300	300	300	300	265	300	265	300	265	300	265	300	265	235	125
Max Output torque (Nm）	600	600	600	600	530	600	530	600	530	600	530	600	530	470	250
Rotor Interia（kgcm² )	0.076	0.064	0.075	0.064	0.064	0.064	0.064	0.064	0.064	0.064	0.064	0.064	0.064	0.064	0.064

Stage	Ⅰ Stage		Ⅱ Stage		Ⅲ Stage
Ratio	3、4、5、7、10		12、15、16、20、25、28、35、40、50、70、100		64、80、100、120、125、140、175、200、250、280、350、400、500、700、1000
	A	B	A	B	A	B
Length (mm)	86	212	118	244	150	276
Rated Speed (rpm)	3500		3500		3500
Max Speed (rpm)	6000		6000		6000
Max. radial force (N)	1600		1600		1600
Max. axial force (N)	1350		1350		1350
No-load Torque (N.m)	1.3		0.6		0.6
Efficiency (%)	96		94		90
Backlash (arcmin)	≤10		≤15		≤18
Noise (dB)	≤65		≤65		≤65
Weight (kg)	1.1		1.3		1.5
Working Lifetime (h)	＞20000 （Continuous operating life halved）
Torsional rigidity (Nm/arcmin)	15
Lubrication Method	Long-term
Rotation Direction	Input/Output Syntropy
Protection Class	IP65
Mounting Position	Arbitrarily

Ratio（i）	Ⅰ Stage					Ⅱ Stage
Ratio（i）	3	4	5	7	10	12	15	16	20	25	28	35	40	50	70	100
Rated output torque (Nm）	105	230	220	160	100	105	105	260	260	245	260	245	260	245	195	110
Max Output torque (Nm）	210	460	440	320	200	210	210	520	520	490	520	490	520	490	390	220
Rotor Interia（kg.cm² )	2.63	1.79	1.53	1.41	1.30	2.63	2.63	1.75	1.50	1.49	1.30	1.30	1.30	1.30	2.57	1.30
Ⅲ Stage
Ratio（i）	64	80	100	120	125	140	175	200	250	280	350	400	500	700	1000
Rated output torque (Nm）	300	300	300	300	265	300	265	300	265	300	265	300	265	235	125
Max Output torque (Nm）	600	600	600	600	530	600	530	600	530	600	530	600	530	470	250
Rotor Interia（kgcm² )	0.076	0.064	0.075	0.064	0.064	0.064	0.064	0.064	0.064	0.064	0.064	0.064	0.064	0.064	0.064

Integrated Servo Motors & Linear Motions Supplier

Nema 42 BF110BLS75 Square Head Geared BLDC Motor with High Precision Gearbox 110x110mm 3 Phase

310V Nema 42 Brushless Dc Motor General Specifications:

General Specifications

Nema 42 Dc Brushless Motor Electrical Specification:

310V Nema 42 Brushless Dc Motor General Specifications:

General Specifications

Nema 42 Dc Brushless Motor Electrical Specification:

BF-PLF120 Planetary Gearbox Specification:

BF-PLF120 Planetary Gearbox Specification:

Nema 42 310V Bldc Motor Dimension:

BF-PLF120 Series Output Dimension:

Nema 42 310V Bldc Motor Dimension:

BF-PLF120 Series Output Dimension:

3 Phase Bldc Motor Optional Parts：

Customized Shaft Service:

Other Customized Parts of Bldc Motors：

3 Phase Bldc Motor Optional Parts：

Customized Shaft Service:

Other Customized Parts of Bldc Motors：

310V Nema 42 Brushless Dc Motor Drawing:

Suitable Drivers Manual:
