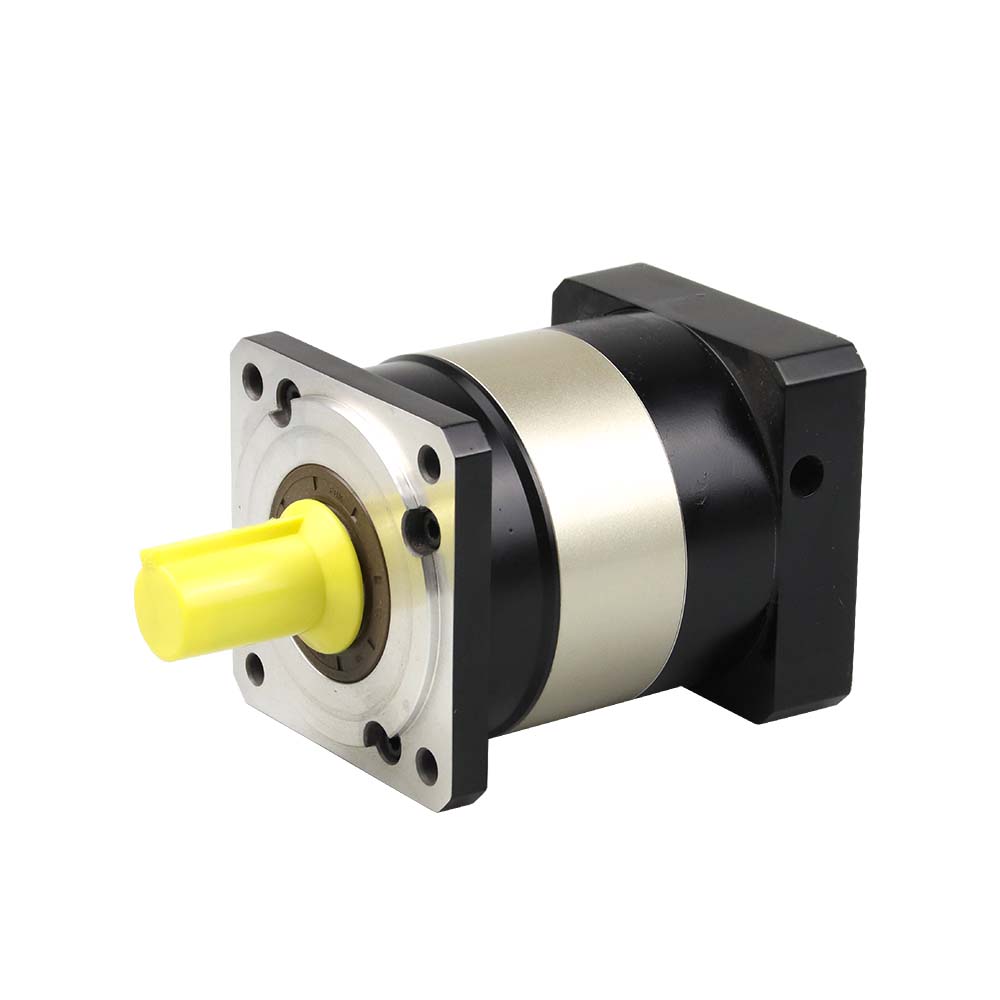

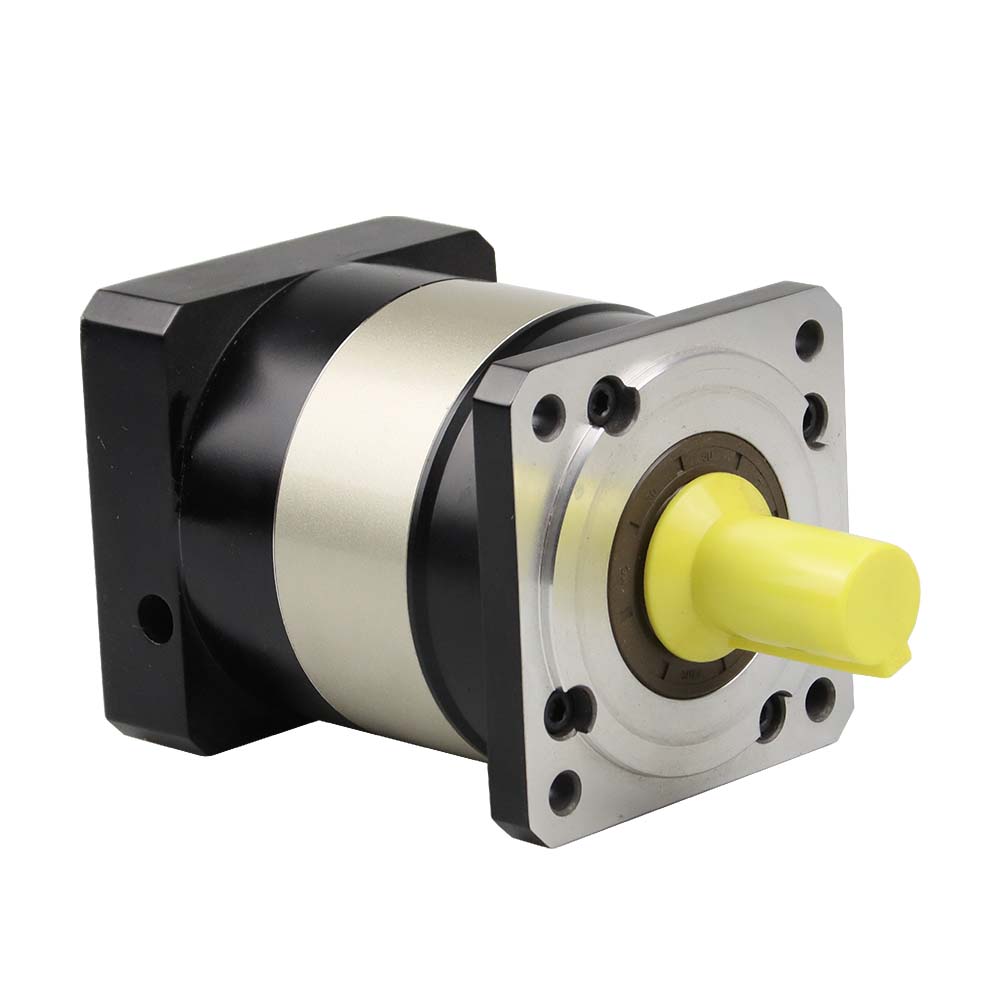

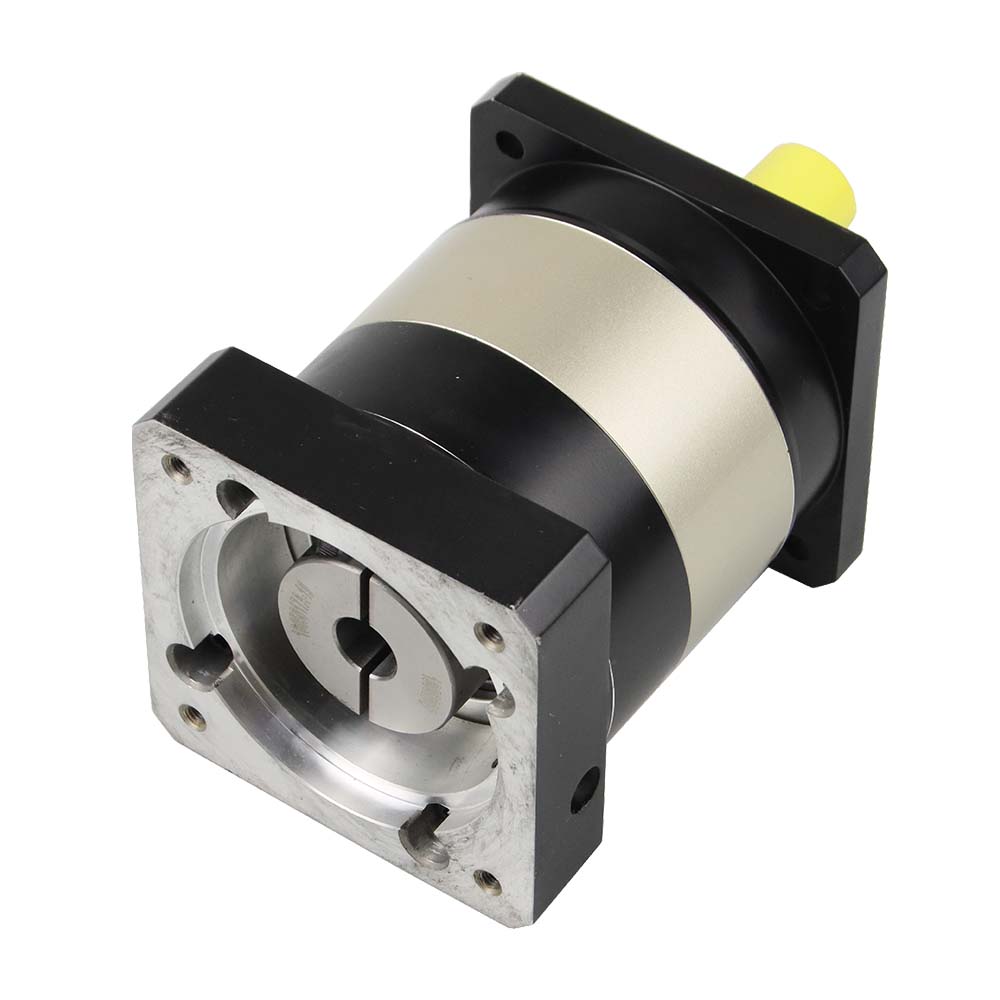

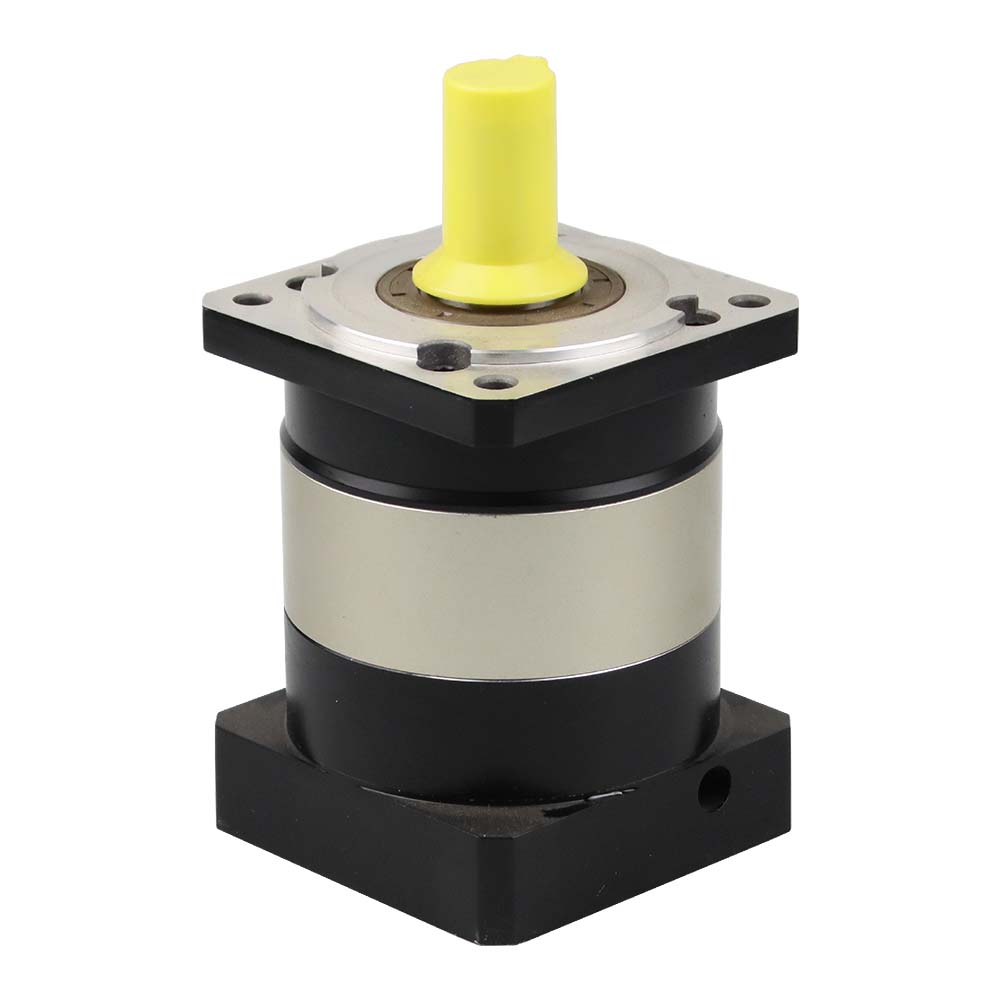

BF-PLF80 Series High Precision Planetary Gearbox for 80 / 86mm Bldc Motor

Type: BF-PLF80 Series High Precision Planetary Gearbox
Rated Torque: 40N.m - 95N.m

  • BF-PLF80 Series

  • Besfoc

  • 10 Pcs

Availability:
Inquire

BF-PLF80 High Precision Planetary Gearbox Specifications:

PLF80
Stage Ⅰ Stage Ⅱ Stage
Ratio 3、4、5、7、10 12、15、16、20、25、28、35、40、50、70、100
A A
Length (mm) 141.5 166.5
Rated Speed (rpm) 3500 3500
Max Speed (rpm) 6000 6000
Max. radial force (N) 550 550
Max. axial force (N) 500 500
No-load Torque (N.m) 0.8 0.4
Efficiency (%) 96 94
Backlash (arcmin) ≤10 ≤15
Noise (dB) ≤62 ≤62
Weight (kg) 3 3.6
Working Lifetime (h) ＞20000 （Continuous operating life halved）
Torsional rigidity (Nm/arcmin) 7.5
Lubrication Method Long-term
Rotation Direction Input/Output Syntropy
Protection Class IP65
Mounting Position Arbitrarily


Gear Ratio（i） Ⅰ Stage Ⅱ Stage
3 4 5 7 10 12 15 16 20 25 28 35 40 50 70 100
Rated Output Torque (Nm） 55 90 95 64 40 60 60 95 95 100 95 100 95 100 70 45
Max Output Torque (Nm） 110 180 190 128 80 120 120 190 190 200 190 200 190 200 140 90
Rotor Inertia（kgcm² ) 0.77 0.52 0.45 0.4 0.39 0.67 0.67 0.5 0.44 0.44 0.39 0.44 0.39 0.42 0.44 0.44

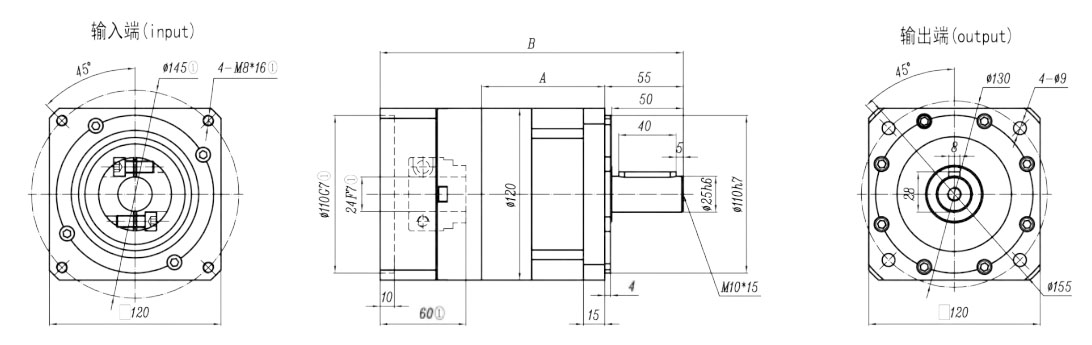

BF-PLF80 Dimension:

PLF80

Customized Service:

  • Input/Output Shaft Diameter and Length

  • Input/Output Shaft Type

  • Gear Ratio


2D BF-PLF80 Series Planetary Gearbox Drawings:
