NEMA 34 BF86HS155--6004 Hybrid bipolêre trapmotor 1.8 graad 13N.M (1840.95oz.in) 86x86x155mm 6.0a 4 drade

NEMA 34 BF86HS155-6004 Hibriede bipolêre trapmotor 1.8 graad 13N.M (1840.95oz.in) 86x86x155mm 6.0a 4 drade

Tipe: NEMA34 Hibriede bipolêre trapmotor

Huidig: 6.0a

Weerstand: 0,68Ω

Gegradeerde wringkrag: 13n.m (1840.95oz.in)

Model:
BF86HS155-6004
Handelsmerk:
Besfoc
STEPER MOTOR SINKE:
Oop lusmotors
Stepper Motorgrootte:
NEMA34 (86 mm)
Aantal leidrade:
4 dogters
Fase:
2 fase
Staphoek:
1,8 °
MOQ:
10 stuks


Beskikbaarheid:



Navraag doen

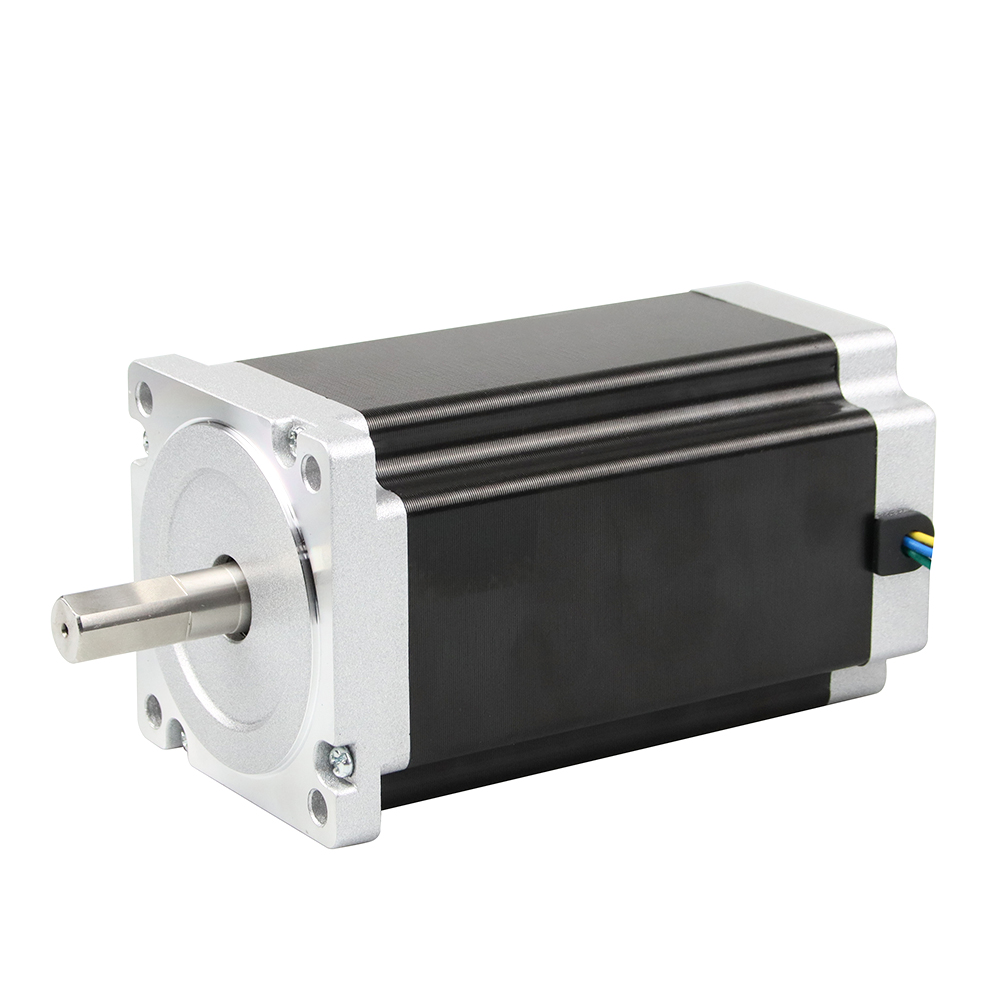

BESFOC NEMA 34 Bipolêre baster-steppermotor (BF86HS155-6004) met staphoek 1.8DEG en grootte 86x86x155mm. Dit het 4 drade, 6.0a, 0.68 Ω 9mh en met 'n wringkrag 13n.m (1840.95oz.in) . vir meer verskillende trapmotorsvereistes (soos ratkas, rem, enkodeerder of geïntegreerde motors), kontak ons asseblief !!!

Elektriese spesifikasies ：

Tipe: NEMA34 Bipolêre baster -steppermotor
Modelnaam: BF86HS155-6004
Fase: 2
Staphoek: 1,8 grade
Huidig: 6.0a
Weerstand: 0,68 Ω ± 0,1 (20 ℃)
Induktansie: 9MH ± 20%(1 kHz 1V RMS)
Hou wringkrag: 13 n.cm ( 1840.95oz.in)
Isolasieklas: B (130 °); 80K Max.
Opsionele onderdele: ratkas, enkodeerder, rem, geïntegreerde drywer ...

Fisiese spesifikasies:

Raamgrootte: NEMA 34 (86 x 86 mm)
Liggaamslengte: 155 mm
As deursnee: 12 mm
Aslengte: 32 mm

Drade verbinding:

A+	A-	B+	B-
Swart	Groen	Rooi	Blou
