NEMA 11 BF28HSK32-0674 Captive Linear Actuator Stepper Motor 1.8 degree 6n.cm (8.50oz.in) 28x28x32mm 0.67a 4 wires

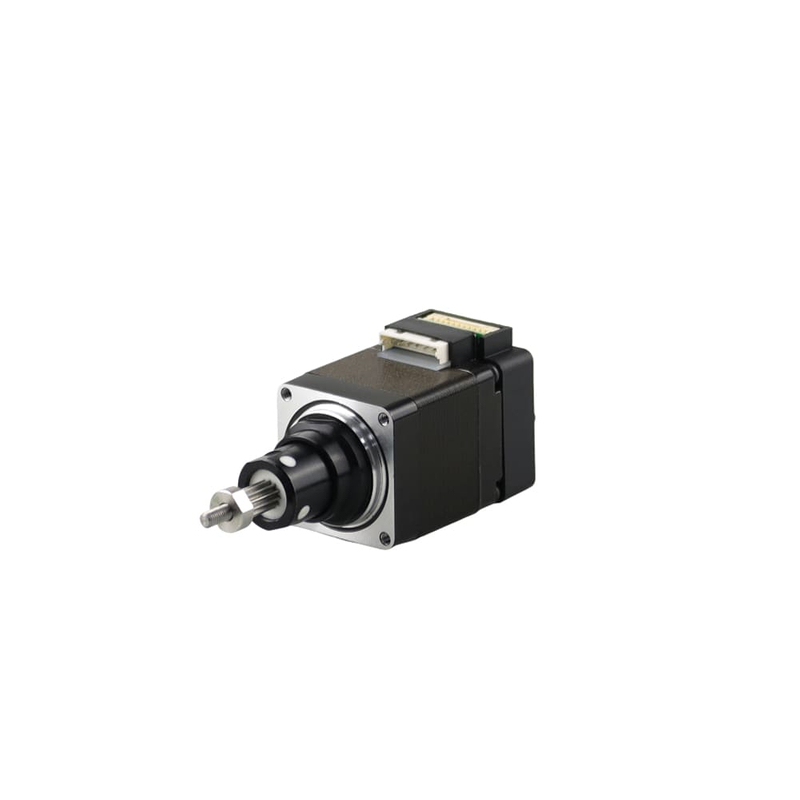

NEMA 11 BF28HSK45-0674 Captive Linear Actuator Stepper Motor 1.8 degree 9N.CM (12.75oz.in) 28X28X45mm 0.67A 4 WIRES

Uri: NEMA11 2Phase Bipolar Captive Linear Actuator Stepper Motor

Kasalukuyan: 0.67a

Paglaban: 6.8Ω

Na -rate na metalikang kuwintas: 9n.cm (12.75oz.in)

Model:
BF28HSK45-0674
Tatak:
Besfoc
Steper Motor Kinds:
Linear motor
Mga uri ng tingga ng tornilyo:
Captive linear
Laki ng motor ng stepper:
Nema11 (28mm)
Bilang ng mga nangunguna:
4wires
Phase:
2 phase
Hakbang anggulo:
1.8 °
MOQ:
10 PCS


Availability:



Magtanong

BESFOC NEMA 11 Captive Linear Actuator Stepper Motor (BF28HSK45-0674) na may anggulo ng hakbang 1.8deg at laki 28x28x45mm. Ang linear stepper motor na ito ay may 4 na wire, 0.67a, 6.8 Ω 4.9mh at may may hawak na metalikang kuwintas 9N.CM (12.75oz.in) . para sa higit pang iba't ibang mga kinakailangan sa stepper motor (tulad ng gearbox, preno, encoder, o integrated motor), mangyaring makipag -ugnay sa amin !!!

Mga pagtutukoy ng elektrikal ：

Uri: NEMA11 Captive Linear Actuator Stepper Motor
Pangalan ng Model: BF28HSK45-0674
Phase: 2
Anggulo ng Hakbang: 1.8 degree
Kasalukuyan: 0.67a
Paglaban: 6.8Ω ± 0.1 (20 ℃)
Inductance: 4.9mh ± 20%(1kHz 1V RMS)
Holding Torque: 9n.cm (12.75oz.in)
Klase ng pagkakabukod: B (130 °); 80k max.
Mga Opsyonal na Bahagi: Gearbox, Encoder, preno, Integrated Driver ...

Mga pagtutukoy sa pisikal:

Laki ng Frame: NEMA 11 (28 x 28mm)
Haba ng Katawan: 45mm
Uri ng Shaft: Captive linear actuators

Koneksyon ng mga wire:

A+	A-	B+	B-
Itim	Berde	Pula	Asul

Nakaraan:

Susunod:

Mga kaugnay na produkto

NEMA 23 BF57HSK41-2804 Captive Linear Actuator Stepper Motor 1.8 degree 0.55nm (77.89oz.in) 57x57x41mm 2.8A 4 Wires

NEMA 23 BF57HSK112-3004 Captive Linear Actuator Stepper Motor 1.8 degree 3N.M (424.84oz.in) 57x57x112mm 3.0a 4 wires

NEMA 23 BF57HSK100-3004 Captive Linear Actuator Stepper Motor 1.8 degree 2.8nm (396.51oz.in) 57x57x100mm 3.0a 4 Wires

NEMA 23 BF57HSK82-3004 Captive Linear Actuator Stepper Motor 1.8 degree 2.1nm (297.38oz.in) 57x57x82mm 3.0a 4 wires

NEMA 23 BF57HSK76-2804 Captive Linear Actuator Stepper Motor 1.8 degree 1.89nm (267.65oz.in) 57x57x76mm 2.8A 4 Wires

NEMA 23 BF57HSK56-2804 Captive Linear Actuator Stepper Motor 1.8 degree 1.2nm (169.93oz.in) 57x57x56mm 2.8a 4 wires

NEMA 23 BF57HSK51-2804 Captive Linear Actuator Stepper Motor 1.8 Degree 1N.M (141.61oz.in) 57x57x51mm 2.8A 4 Wires

NEMA 23 BF57HSK41-2804 Captive Linear Actuator Stepper Motor 1.8 degree 0.55nm (77.89oz.in) 57x57x41mm 2.8A 4 Wires

NEMA 17 BF42HSK60-1704 Captive Linear Actuator Stepper Motor 1.8 degree 73ncm (103.38oz.in) 42x42x60mm 1.7a 4 wires

NEMA 17 BF42HSK48-1684 Captive Linear Actuator Stepper Motor 1.8 degree 55ncm (77.89oz.in) 42x42x48mm 1.7a 4 Wires

NEMA 17 BF42HSK40-1704 Captive Linear Actuator Stepper Motor 1.8 degree 42ncm (59.48oz.in) 42x42x40mm 1.7a 4 wires

NEMA 17 BF42HSK34-1334 Captive Linear Actuator Stepper Motor 1.8 degree 26ncm (36.82oz.in) 42x42x34mm 1.33a 4 wires

NEMA 11 BF28HSK51-0674 Captive Linear Actuator Stepper Motor 1.8 degree 12n.cm (16.99oz.in) 28x28x51mm 0.67a 4 wires

NEMA 11 BF28HSK32-0674 Captive Linear Actuator Stepper Motor 1.8 degree 6n.cm (8.50oz.in) 28x28x32mm 0.67a 4 wires

NEMA 8 BF20HSK30-0604 Captive Linear Stepper Motor 1.8 degree 1.8N.CM (2.55oz.in) 20x20x30mm 0.6a 4 wire

NEMA 8 BF20HSK38-0604 Captive Linear Stepper Motor 1.8 Degree 3N.CM (4.25oz.in) 20x20x38mm 0.6A 4 Wires

NEMA 8 BF20HSK30-0604 Captive Linear Stepper Motor 1.8 degree 1.8N.CM (2.55oz.in) 20x20x30mm 0.6a 4 wire

Pisikal na detalye
Laki ng frame	mm	NEMA 11 (28 x 28)
Uri ng output shaft	/	Captive linear actuator stepper motor
Hindi. Ng mga nangunguna	/	4
Humahantong ang haba	mm	300
Timbang	Kg	0.14

Ang sukat ng linear actuators
Sukat A: mm	Jounery B: Mm	Laki C: mm
Sukat A: mm	Jounery B: Mm	L = 32	L = 45
14.7	12.7	2.35	0
22.1	19.05	9.15	0
27.4	25.4	15.05	4.6
33.8	31.8	21.45	11
40.1	38.1	27.75	17.4
52.8	50.8	40.35	29.8
63.5	63.5	54.05	42.5

Pisikal na detalye
Laki ng frame	mm	NEMA 11 (28 x 28)
Uri ng output shaft	/	Captive linear actuator stepper motor
Hindi. Ng mga nangunguna	/	4
Humahantong ang haba	mm	300
Timbang	Kg	0.14

Ang sukat ng linear actuators
Sukat A: mm	Jounery B: Mm	Laki C: mm
Sukat A: mm	Jounery B: Mm	L = 32	L = 45
14.7	12.7	2.35	0
22.1	19.05	9.15	0
27.4	25.4	15.05	4.6
33.8	31.8	21.45	11
40.1	38.1	27.75	17.4
52.8	50.8	40.35	29.8
63.5	63.5	54.05	42.5
