Home / Products Center / Stepper Motor / Hybrid Stepper Motor / Nema 23 BF57HM56-2804 Hybrid Bipolar Stepper Motor 0.9 Degree 1.2Nm (169.93oz.in) 57x57x56mm 2.8A 4 Fila

loading

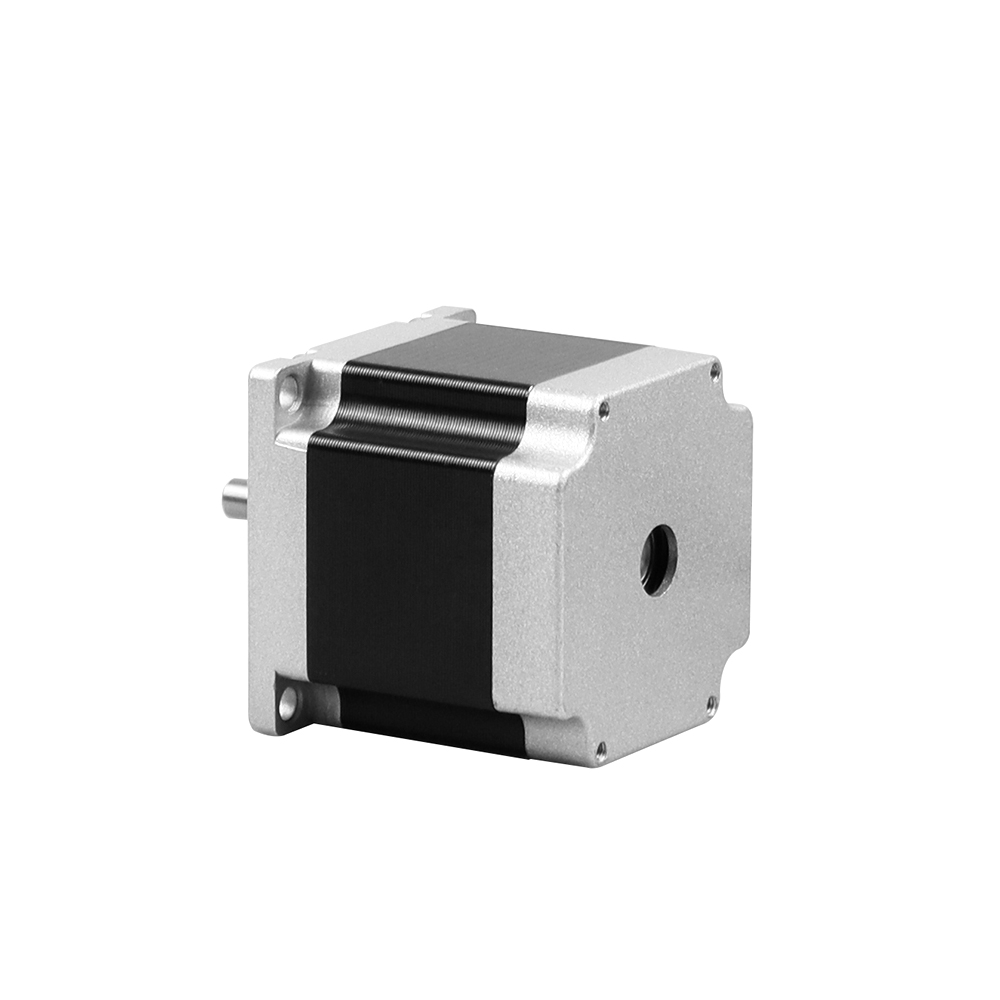

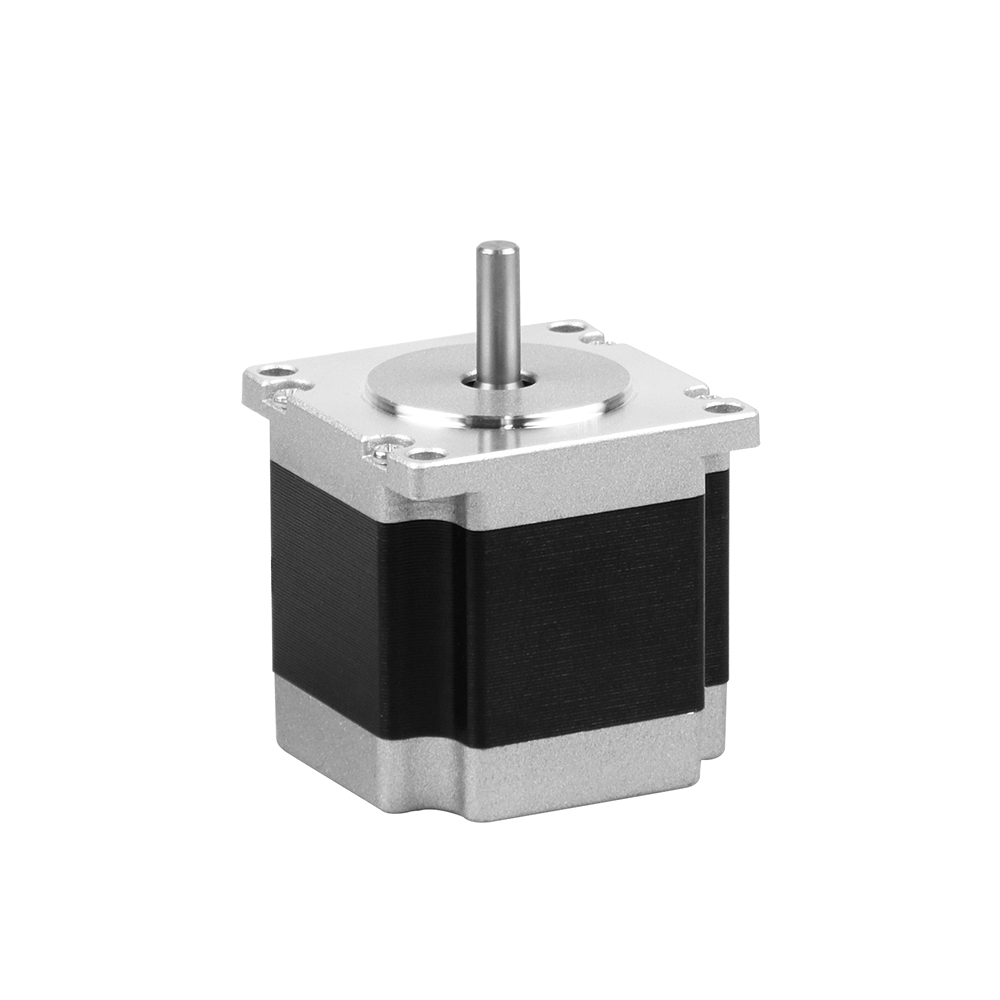

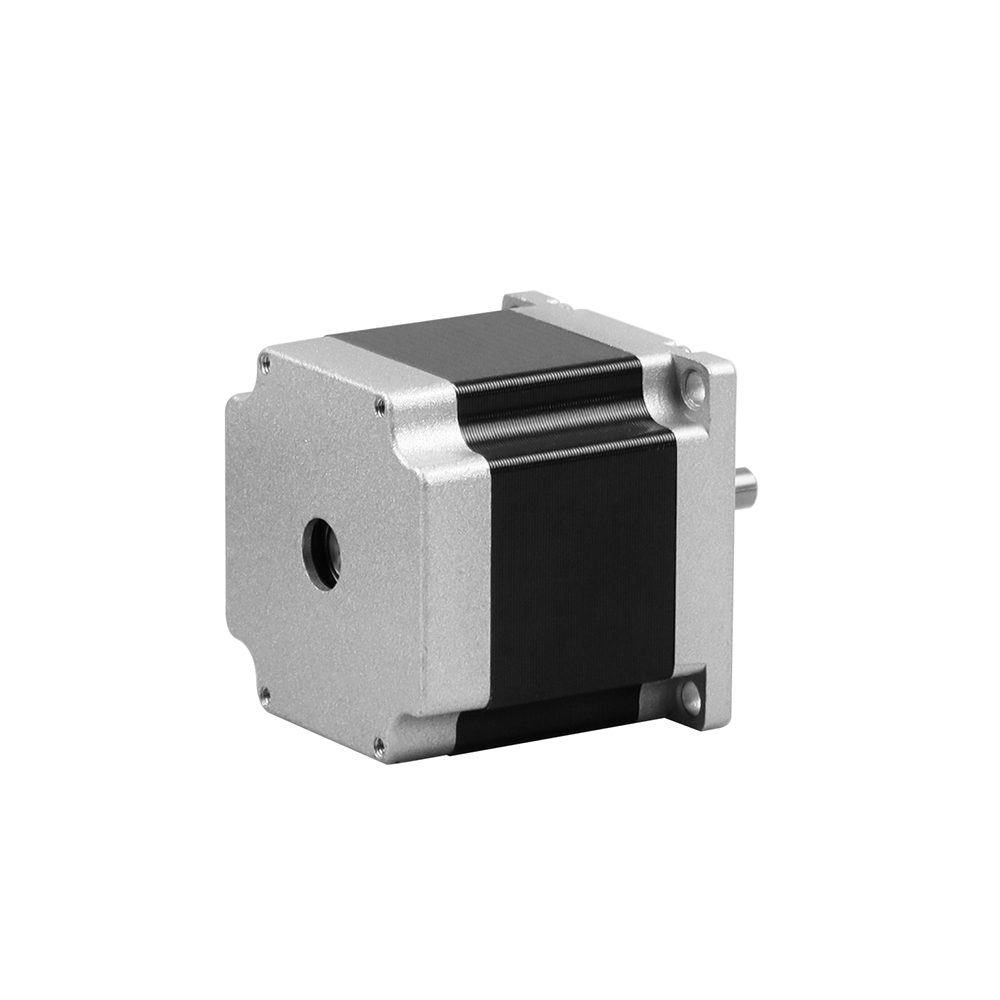

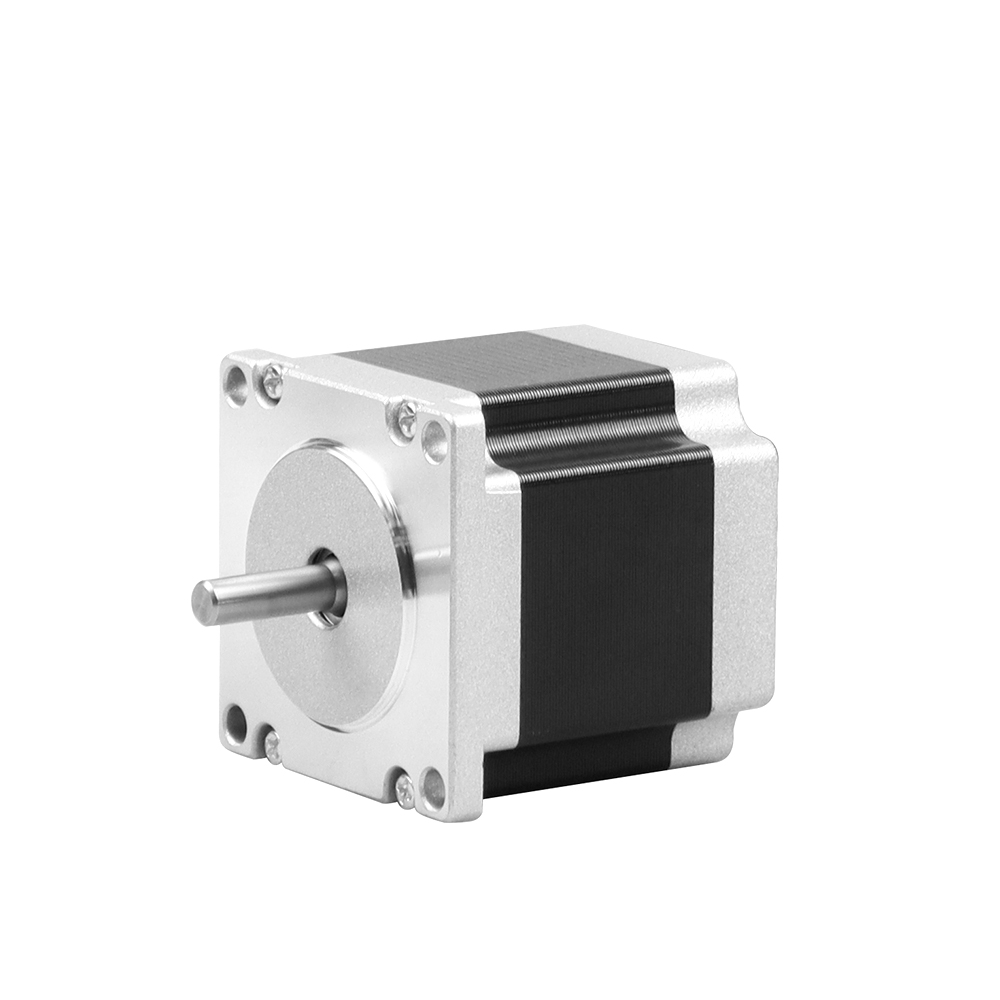

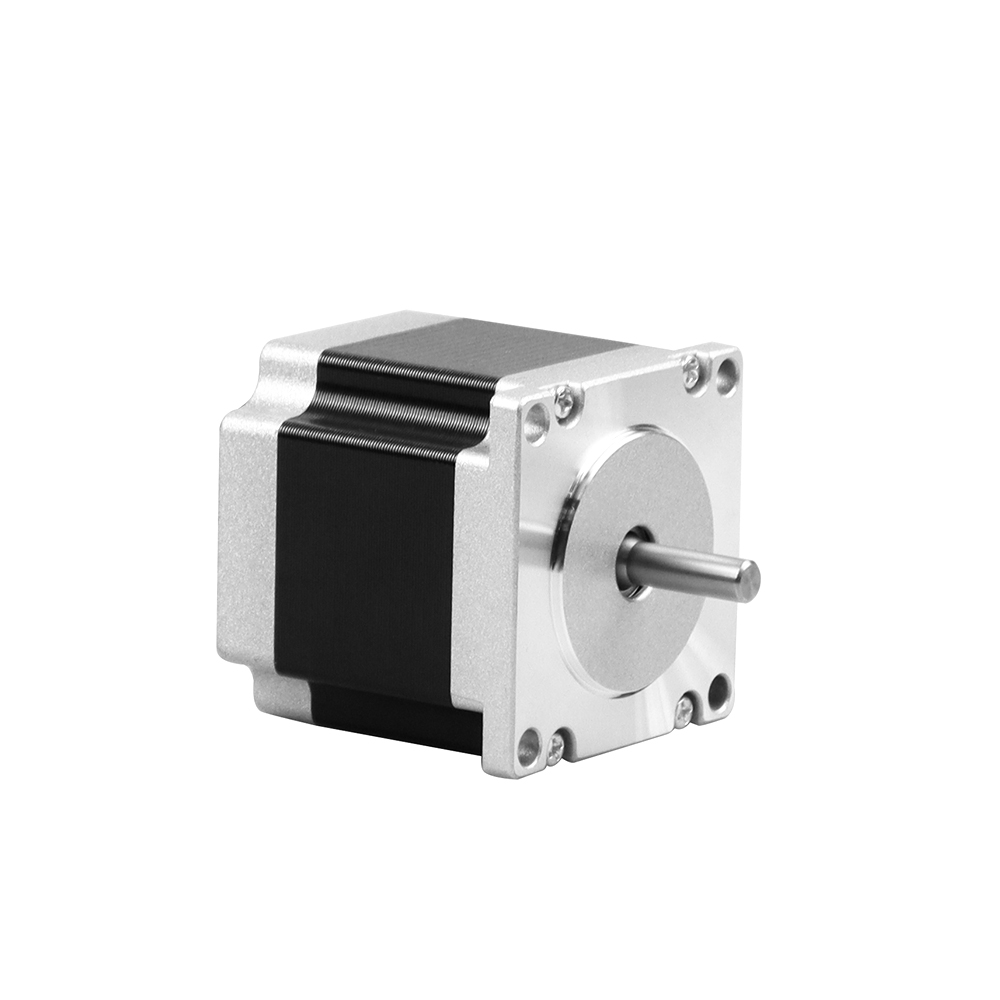

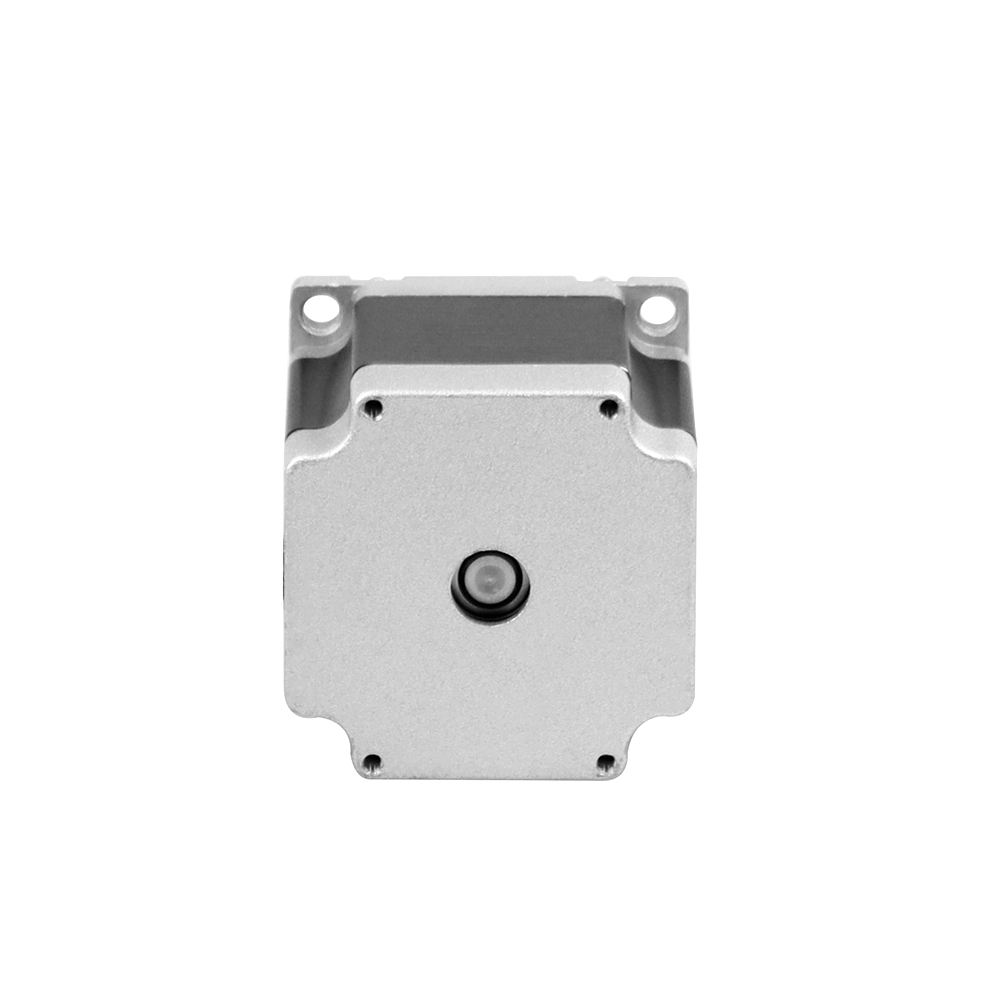

Nema 23 BF57HM56-2804 Hybrid Bipolar Stepper Motor 0.9 Degree 1.2Nm (169.93oz.in) 57x57x56mm 2.8A 4 Fila

Type: Nema23 2Phase Bipolar Stepper Motor

Current: 2.8A

Resistentia: 0.9Ω

Rated Torque: 1.2Nm(169.93oz.in)

  • BF57HM56-2804

  • BesFoc

  • Open Loop Motors

  • Nema23 (57mm)

  • 4wires

  • 2 phase

  • 0.9°

  • 10 Pcs

Availability:
inquire

BesFoc Nema 23 motor stepper bipolaris (BF57HM56-2804) cum angulo gradus 0.9deg et magnitudo  57x57x56mm. Fila 4 habet, 2.8A, 0.9 Ω 3.3mH et  cum tenens torque 1.2Nm(169.93oz.in) . Pro motoribus multis requisitis (ut gearbox, confregit, encoder vel integrata motores), nos tange!


Electrical Specifications

  • Type: Nema23 bipolar stepper motor

  • Exemplar Nomen: BF57HM56-2804

  • Phase: 2

  • Gradus Angulus: 0,9 gradus

  • Current: 2.8A

  • Resistentia: 0.9 Ω±0.1(20℃)

  • Induction: 3.3mH±20% (1kHz 1V RMS)

  • Tenens Torque: 1.2 N.cm ( 169.93oz.in)

  • Insulatio Classis: B (130°); 80K Max.

  • Partes libitum: Gearbox, Encoder, Brake, Coegi Integrated...


Specificationes physicae:

  • Frame Size: Nema 23 (57 x 57mm)

  • Corpus Longitudo: 56mm

  • Shaft Diameter: 6.35mm

  • Hastile Longitudo: 21mm


Fila Connection:

A+
 A- B+ B-
Niger Viridis Red Blue



Nema 23 Electrical Specification:

Electrical Specification
Product Type
 / Nema 23 Bipolar Stepper Motor
Nomen exemplar / BF57HM56-2804
Phase tempus 2
Gradus Anglus ° 0.9
Current A 2.8
Resistentia Ω 0.9
Inductione mH* 3.3
Rated Torque (Nm) Nm 1.2
Tenens Torque (oz.in) oz.in 169.93
Bipolar/Unipolar / Bipolar
Insulatio Classis / B
Detent Torque g.cm 400
Rotor Inertia g.cm2 300


Nema 23 Stepper Motor Physical Specification:

Corporalis Specification
Artus Size mm Nema 23 (57 x 57)
Output Shaft Type / Circum Shaft
Shaft Diameter mm 6.35
hastile Longitudo mm 21
Corpus Longitudo
 mm 56
Una Shaft / Dual Shaft / una Shaft
No. of Leads / 4
Ducit Longitudo mm 300
Pondus Kg 0.68

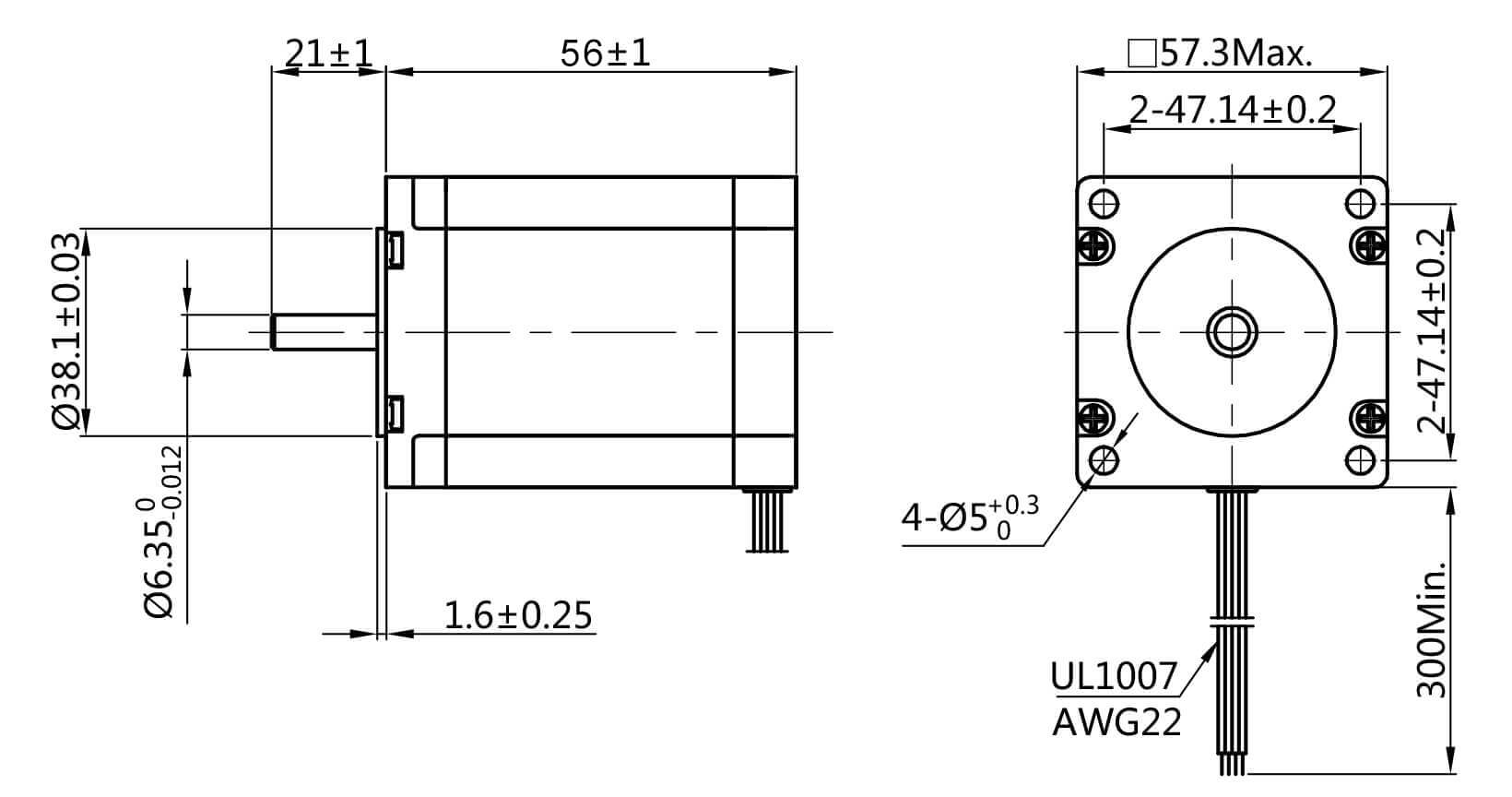

Nema 23 Stepper Motor Dimension:

steper motor nema 23

Hybrid Stepper Motor Partes libitum

Connectors, Gearbox, Encoder, Brake, Integrated Driver...


Lorem Service:

步进电机金属带轮

Metallum Pulleys

步进电机塑料带轮

Plastic Pulley

步进电机齿轮

Apparatus

步进电机定制

Shaft Pin

步进电机厂家

Threaded Shaft

步进电机直销

Panel Mount


步进电机工厂直销

cava Shaft

步进电机厂家直销

Threaded Shaft

步进电机促销

Panel Mount

步进电机工厂

una Flat

步进电机批发

Dual Flat

步进电机直销厂家

Clavis Shaft


Hybrid Stepper Motorised Service:

stepper motor fabrica

cables

42mm gearbox stepper motor fabrica

Flanges

86mm stepper motor fabrica

Shaft

Sinis stepper motor fabrica

Duc stupra Rod

Altera hybrid stepper motor fabrica

Encoders


stepper motor Sinis manufacturer

Brakes

stepper motor fabrica in Sina

Gearboxes

stepper motor exactoris fabrica

Motor Kits

3D stepper motor fabrica

Integrated Coegi

12v stepper motor fabrica

More nativus


2D Stepper Motor Drawings:

BF57HM56-2804 Datasheet PDF.pdf

57HM Nema 23 Stepper Motor Dimension.pdf
