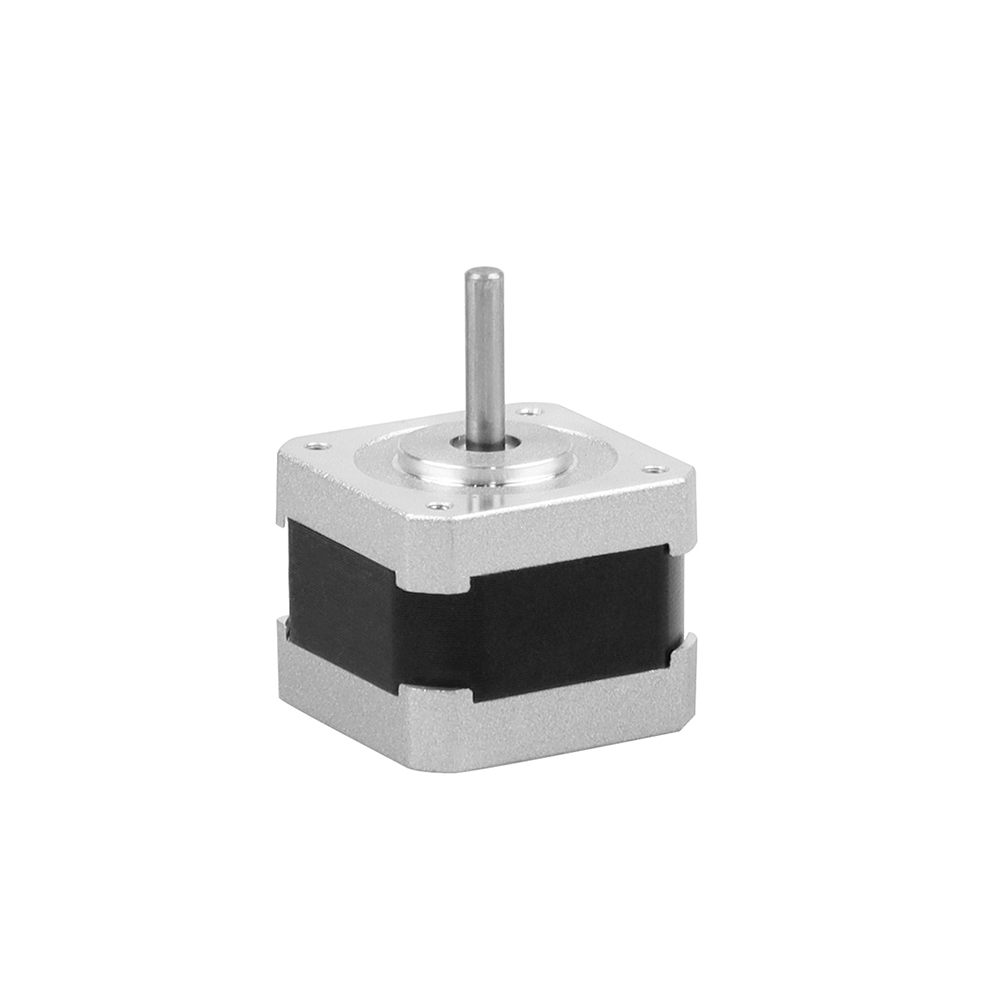

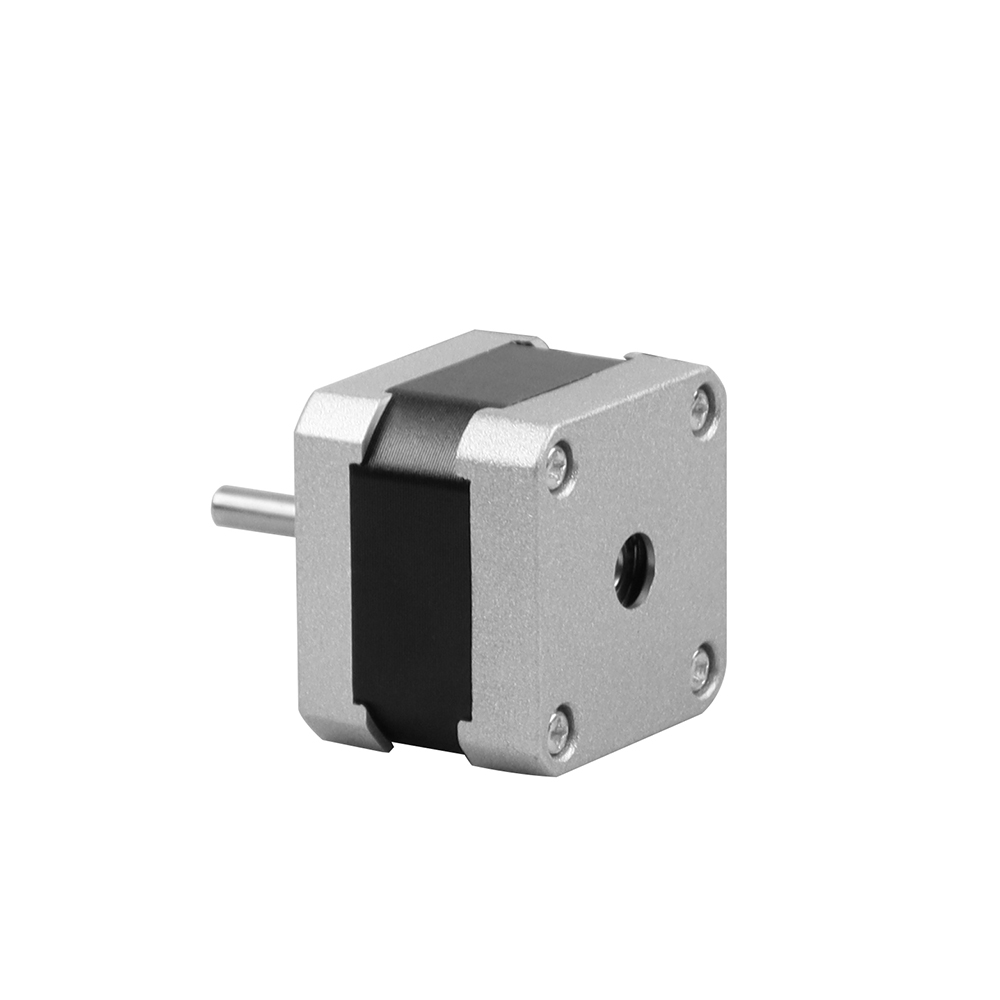

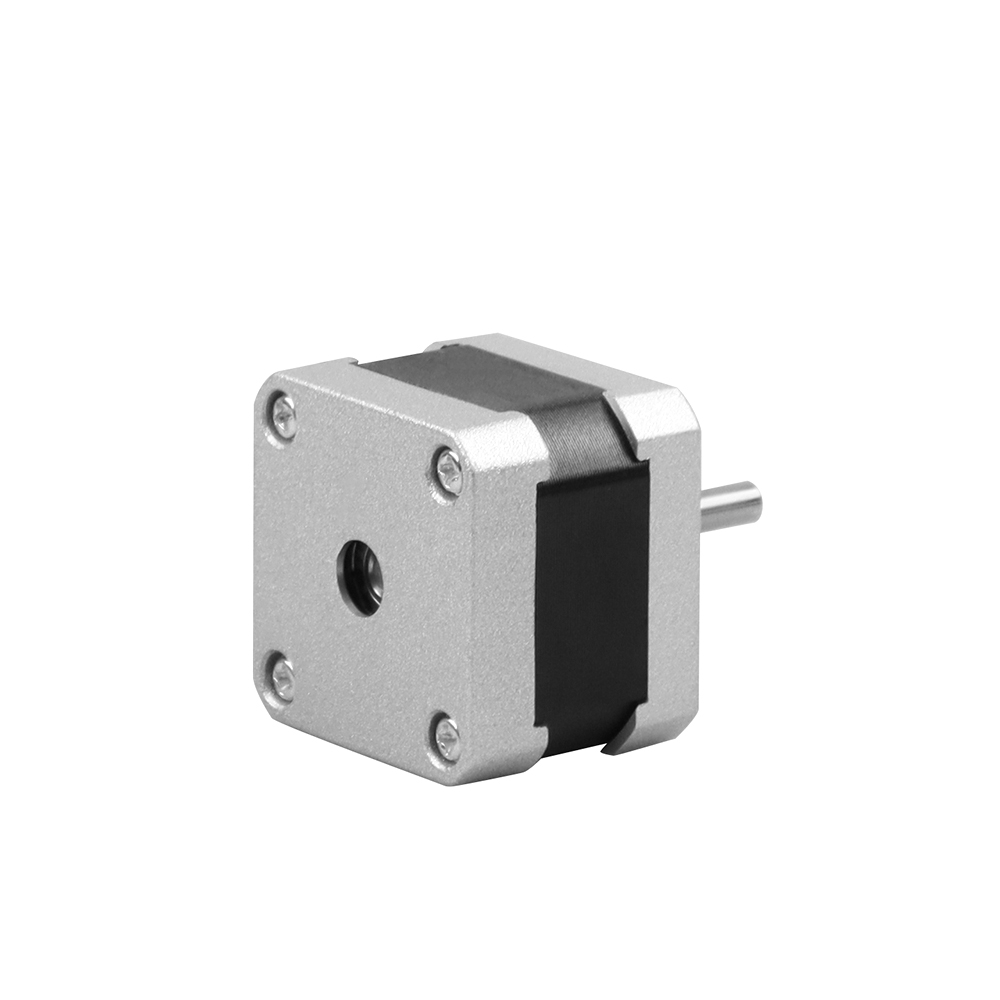

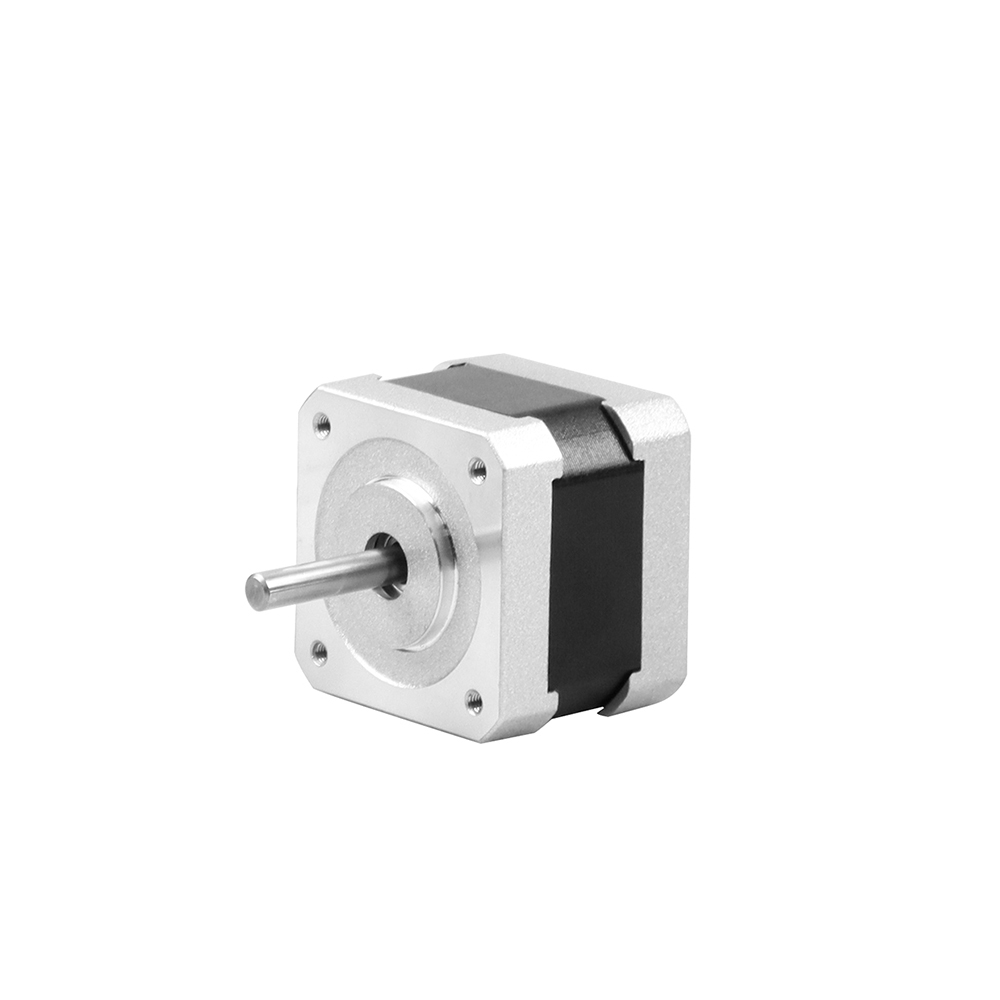

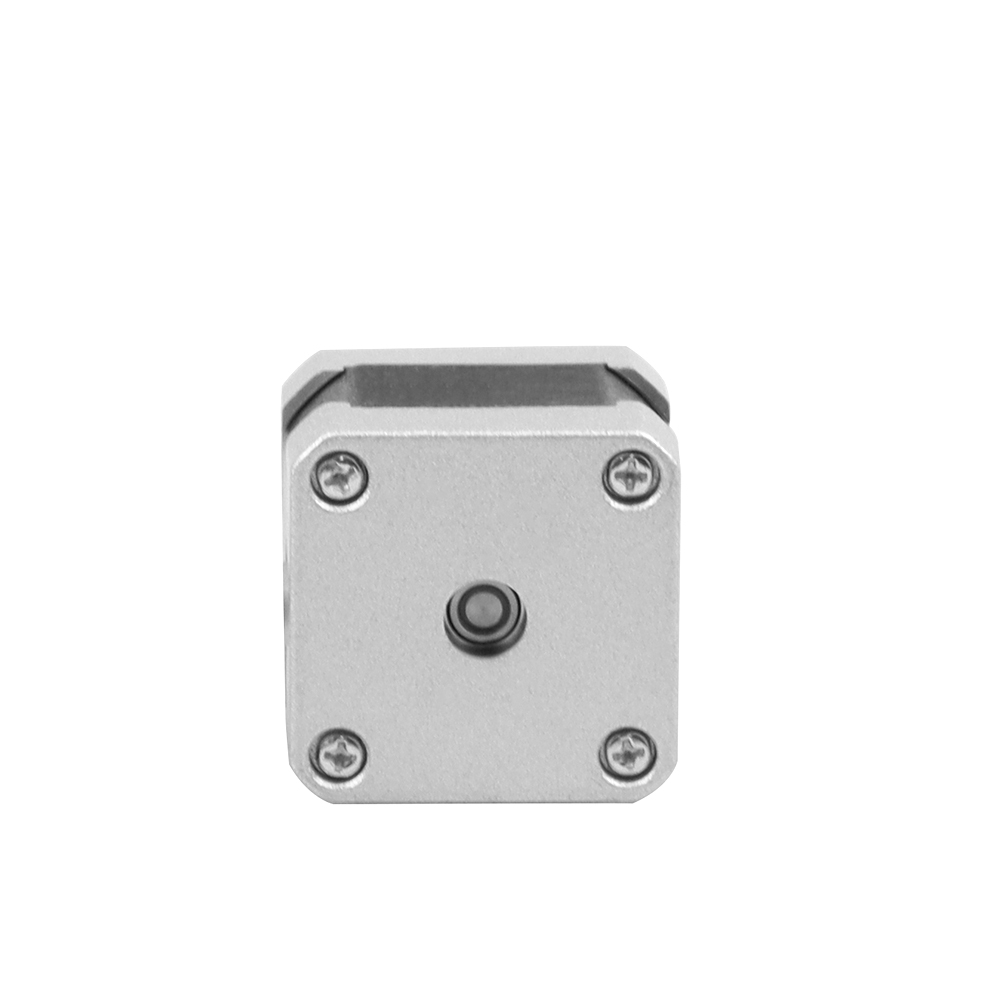

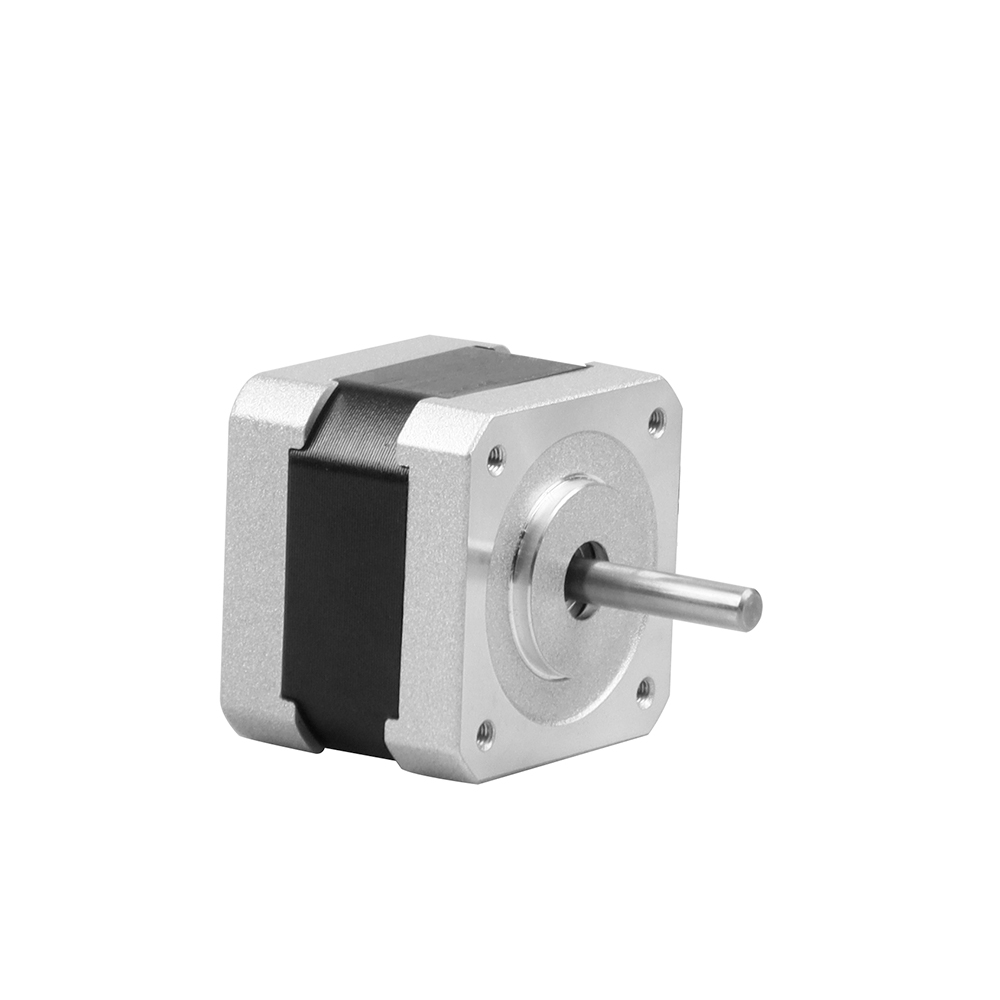

Nema 17 BF42HS34-0404 12V Hybrid Bipolar Stepper Motor 1.8 Graduum 28Ncm (39.65oz.in) 42x42x34mm 1.33A 4 Fila

Type: Nema17 Hybrid Stepper Motor

Current: 0.4A

Resistentia: 30Ω

Rated Torque: 0.28Nm(39.65oz.in)

  • BF42HS34-0404

  • BesFoc

  • Open Loop Motors

  • Nema17 (42mm)

  • 4wires

  • 2 phase

  • 1.8°

  • 10 Pcs

Availability:
inquire

BesFoc 12V Nema 17 motor bipolaris hybrid (BF42HS34-0404) cum angulo gradus 1.8deg et magnitudine  42x42x34mm. Fila habet 4, 0.4A, 30 Ω 35mH et  cum tenens torques  0.28Nm(39.65oz.in) . Pro motorum gradarum pluribus requisitis (ut gearbox, confregit, encoder vel integrata motores), nos contact!


Electrical Specifications

  • Type: Nema17 bipolar gradiens motor

  • Exemplar Nomen: BF42HS34-0404

  • Phase: 2

  • Gradus Angulus: 1.8 gradus

  • Current: 0.4A

  • Resistentia:  30Ω±0.1(20℃)

  • Induction: 35mH±20% (1kHz 1V RMS)

  • Tenens Torque: 0. 28N.m ( 39.65oz.in)

  • Insulatio Classis: B (130°); 80K Max.

  • Partes libitum: Gearbox, Encoder, Brake, Coegi Integrated...


Specificationes physicae:

  • Frame Size: Nema 17 (42 x 42mm)

  • Corpus Longitudo: 34mm

  • Shaft Diameter: 5mm

  • Hastile Longitudo: 24mm


Fila Connection:

A+
 A- B+ B-
Niger Viridis Red Blue


Nema 17 Motors Electrical Specification:

Electrical Specification
Product Type
 / 12V 2 Phase Hybrid Stepping Motor
Nomen exemplar / BF42HS34-0404
Phase tempus 2
Gradus Anglus ° 1.8
Current A 0.4
Resistentia Ω 30
Inductione mH* 35
Rated Torque (Nm) Nm 0.28
Tenens Torque (oz.in) oz.in 39.65
Bipolar/Unipolar / Bipolar
Insulatio Classis / B
Detent Torque
 g.cm 120
Rotor Inertia g.cm2 34


12V Stepper Motor Physical Specification:

Corporalis Specification
Artus Size mm Nema 17 (42 x 42) ;
Output Shaft Type / Circum Shaft
Shaft Diameter mm 5
hastile Longitudo mm 24
Corpus Longitudo
 mm 34
Una Shaft / Dual Shaft / una Shaft
No. of Leads / 4
Ducit Longitudo mm 300
Pondus Kg 0.22



Nema 17 Stepper Motor Dimension:

nema 17 dimensions

Hybrid Stepper Motor Partes libitum

Connectors, Gearbox, Encoder, Brake, Integrated Driver...



Lorem Service:

步进电机金属带轮

Metallum Pulleys

步进电机塑料带轮

Plastic Pulley

步进电机齿轮

Apparatus

步进电机定制

Shaft Pin

步进电机厂家

Threaded Shaft

步进电机直销

Panel Mount


步进电机工厂直销

cava Shaft

步进电机厂家直销

Threaded Shaft

步进电机促销

Panel Mount

步进电机工厂

una Flat

步进电机批发

Dual Flat

步进电机直销厂家

Clavis Shaft


Hybrid Stepper Motorised Service:

stepper motor fabrica

cables

42mm gearbox stepper motor fabrica

Flanges

86mm stepper motor fabrica

Shaft

Sinis stepper motor fabrica

Duc stupra Rod

Altera hybrid stepper motor fabrica

Encoders


stepper motor Sinis manufacturer

Brakes

stepper motor fabrica in Sina

Gearboxes

stepper motor exactoris fabrica

Motor Kits

3D stepper motor fabrica

Integrated Coegi

12v stepper motor fabrica

More nativus


2D Stepper Motor Drawings:

BF42HS34-0404 Datasheet PDF.pdf

42HS Nema 17 Stepper Motor Dimension.pdf


Idonei Coegi Manual:
