36V 0.22nm 92W 36V 36V 36V Quadratum Caput XXIII Nema BF57blf02 36V 36V 36V Motor

36V 0.22nm 92W 36V 36V 36V Quadratum Caput XXIII Nema BF57blf02 36V 36V 36V Motor

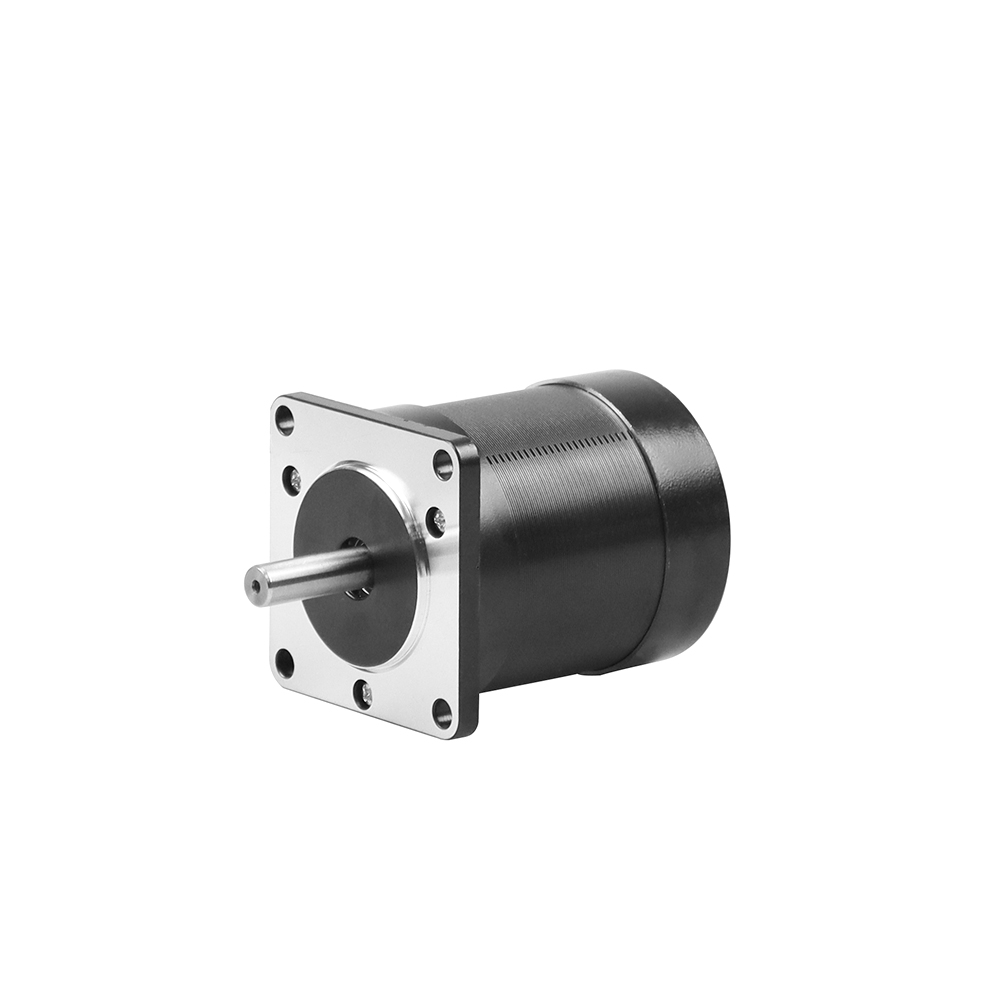

Typus: 57mm 36V 92W Quadratum caput Brushless DC motricium

Phase: III
Poles: IV
Rated Torque: 0,22NM
Rated Current: 3.6a

Corpus Longitudo: 67mm
customized partes: Motors, Gearboxes, encoders, ardua dumos, integrari coegi ...

Model:
Bf57blf02
Rated Volo:
4000rpm
Bldc Poles:
IV Poles
Bldc motricium Location:
Nema23 (57mm)
Rated voltage:
36V
MOQ:
X PCs


Availability:



Inquiro

Besfoc Nema XXIII 36v 4poles quadratum caput Brushless DC motricium (Bf57blf02) cum 4000rpm celeritate et magnitudine 57x57x67mm. Is est VIII filis (III filis ad Motors, V filis pro Hallsensor), 0.22nm 3.6a et 92W. Nam magis alia Bldc Motors Requirements (ut Gearbox, fregit, encoder, seu integrated Motors), placere contactus nos !!!

Electrical Specifications:

Type: Nema XXIII 36v 57mm Quadratum Caput Brushless DC motricium
Model Name: BF57blf02
Numerus of Phase: III
Numerus Poles: IV
Rated Volo: 4000rpm
Rated torque: 0,22nm
Rated Current: 3.6a
Rated Power: 92W
Pecco torque: 0,66nm
Pecco Current: 11.5A
Back EMF: 7.4v / KRPM
Torque constant: 0.07nm / a
Rotor inertia: 119g.cm2
SINTULATION Classis: B
Nulla resistitur: 100mω min @ 500VDC
DieLectric fortitudo: 500vac ad I minute
Driver, Bld300
Libitum Partes: Gearbox, Encoder, fregit, Integrated Driver ...

Systematis corporis cubits:

Frame Size: Nema XXIII (LVII x 57mm)
Longitudo corporis: 67mm
Shaft Diameter: 8mm
Numero ducit: VIII
Longitudo ducit: 300mm
Sensorem: Sensorem
Pondus 0.75kg

Wires Connection:

Bldc Motors Wires			Aula sensorem fila
U	V	W	+ 5VDC	Gnd	Hu	HV	HW
Flavus	Viride	Blue	Ruber	Niger	Yello	Viride	Blue

3000RPM 48v 28v 2.1NM 660W 3000RPM 48V Quadratus Nema 3000RPM 48v 2.1NM Brushless DC motricium

3000RPM 48v 440W 48v 48v 440W 440W NEMPRPM NEMPRPM 48V 48v 48v. Motor

3000RPM 48V 1.05nm 3000RPM 3000RPM 4A NEMMRPM 4A 3000RPM Caput BF86BLS84 3000RPM 1.05NM Motor

3000RPM 48V 0.7nm 30WRPM 3000RPM 3000RPM 3000RPM 3000RPM 3000RPM 3000RPM Temperat 220W 220W 220W Brushless DC motricium

3000RPM 48v 3000RPM 48v 3000RPM 48V 34V 3A NEMPRPM TEMPUS BF86BLS58 3000RPM

80mm 440W 440W 440W 440W 440W 40mmm 440W 10.5a 8080888mm Brushless DC motricium

8MRPM 48v 8VRpm 8a 8a 8a 8A 8A 8080mm 8a 8a 808080x18mm Brushless DC motricium

80mm 48v 3000RPM 48V 80mm 48v 220W 5.5A 808080X98mm Brushless DC motricium

80mm 48v 3000RPM 48v 48v 3000RPM 110W 3A 808080X78MM Brushless DC motricium

Nema XXIV Quadratum caput BF60BLS04 3000RPM 48v 1.2NM 377W 9.5A ф60X60X141mm Brushless DC motricium

Nema XXIV Quadratum caput BF60BLS03 3000RPM 48v 0.9NM 283W 7.5A ф60X60X120mm Brushless DC motricium

Nema XXIV Quadratum Caput BF60BLS02 3000RPM 48v 0.6NM 188W 5.2A ф60X60X9MM Brushless DC motricium

Nema XXIV Quadratum caput BF60BLS01 3000RPM 48v 0.3nm 94W 2.8a ф60X6078MM Brushless DC motricium

36v 0.44nm 36V 0.44nm 184W 6.8a 36V Quadratum Nema 36V 0.44nm

36v 0.33nm 138W 5.3a 36v 36V Quadratum Caput XXIII Nema 36v 5.3a ф57x57x87mm Brushless DC motricium

Nema XXIII Quadratum Caput BF57blf01 457x57x47mm 46W 46W 2a ф57x57x47mm Brushless DC motricium

Nema XXIII Quadratum Caput BF57blf005 457x57x37mm 23W 1,2a 23W 1,2a ф57x57x37mm Brushless DC motricium

Nema XXIII BF57BLS04 4000RPM 36V 0.44NM 184W 6.8a ф57x57x107mm Brushless DC motricium

Nema XXIII BF57BLS03 4000RPM 36V 0.33nm 138W 5.3a ф57x57x87mm Brushless DC motricium

Nema XXIII BF57BLS02 4000RPM 36V 0.22NM 92W 3.6a ф57x57x67mm Brushless DC motricium

Generalis specifications
Item	Specificatio
Type curva	Delt
Hall effectus angle	CXX gradus electrica angle
Shaft currere sunt	0.025mm
RAPILLUS	0.02mm@450g
Fabula	0.08mm@450g
Max.radial vi	75n @ 20mm ex LABIUM
Max. AXIBILIS	15N
Nulla Genus	Classis b
Dielectric fortitudinem	500VDC pro uno momento
Nulla resistitur	100mω min., 500VDC

Electrica specificationem
Exemplar	/	Bf57blf02
Phase	/	3
Polos	/	4
Rated voltage	VDC	36
Rated celeritate	rpm	4000
Rated torque	NM	0.22
Rated Current	A	3.6
Rated potestatem	W	92
Peak torque	NM	0.66
Apicem current	A	11.5
Retro emf	V / krpm	7.4
Torque assidue	N. / a	0.07
Rotor inertia	G.CM2	119
Corpus longitudinem	mm	67
Pondus	kg	0.75
Sensor	/	Mel bene
Nulla Genus	/	B
Nulla Genus	/	Ip30
Storage temperatus	℃	-25 ~ + LXX ℃
Operating temperatus	℃	-15 ~ + L ℃
Operantes humiditas	RH	LXXXV% RH vel minus (no condensationem) ≤85% RH
Operantes environment	/	Velit (non directe solis), nec mordax Gas, nec flammabiles Gas, non oleum caligo, nec pulvis
Altitudo	m	M metris et minus

Generalis specifications
Item	Specificatio
Type curva	Delt
Hall effectus angle	CXX gradus electrica angle
Shaft currere sunt	0.025mm
RAPILLUS	0.02mm@450g
Fabula	0.08mm@450g
Max.radial vi	75n @ 20mm ex LABIUM
Max. AXIBILIS	15N
Nulla Genus	Classis b
Dielectric fortitudinem	500VDC pro uno momento
Nulla resistitur	100mω min., 500VDC

Electrica specificationem
Exemplar	/	Bf57blf02
Phase	/	3
Polos	/	4
Rated voltage	VDC	36
Rated celeritate	rpm	4000
Rated torque	NM	0.22
Rated Current	A	3.6
Rated potestatem	W	92
Peak torque	NM	0.66
Apicem current	A	11.5
Retro emf	V / krpm	7.4
Torque assidue	N. / a	0.07
Rotor inertia	G.CM2	119
Corpus longitudinem	mm	67
Pondus	kg	0.75
Sensor	/	Mel bene
Nulla Genus	/	B
Nulla Genus	/	Ip30
Storage temperatus	℃	-25 ~ + LXX ℃
Operating temperatus	℃	-15 ~ + L ℃
Operantes humiditas	RH	LXXXV% RH vel minus (no condensationem) ≤85% RH
Operantes environment	/	Velit (non directe solis), nec mordax Gas, nec flammabiles Gas, non oleum caligo, nec pulvis
Altitudo	m	M metris et minus
